AB Micatrone products

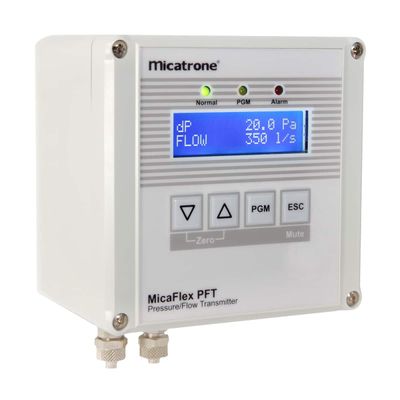

Micaflex PFT ver 3 is a programmable differential pressure sensor for measurement and control of air pressure and flow. PFT is equipped with a scalable output signal within the measuring range and PI controller for direct control of e.g. actuators and fans. It can be equipped with accessories such as Modbus RTU for digital communication, MFM-ZP for automatic zero point adjustment at low measuring ranges, internal or external transformer for 230 VAC supply.

Micaflex PFC ver 3 is a differential pressure sensor for measuring air pressure and flows. PFC contains a PI controller with two set points for controlling frequency converters or actuators. PFC has SPC input for set point impact and SPD input for switching between two set points. PFC comes with certificate and test report from factory calibration.

Micaflex PFA ver 3 is a programmable differential pressure sensor for measuring and regulating air pressure and flow and monitoring with alarms.

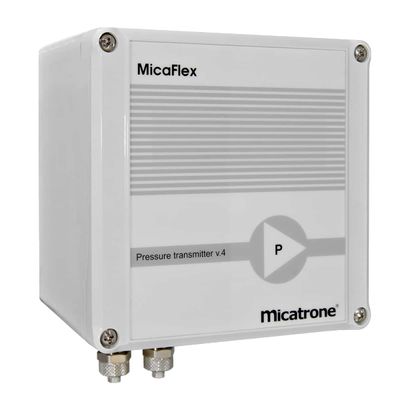

Micaflex P is a differential pressure sensor designed to measure low negative and positive pressures. P is delivered with a certificate and test report from factory calibration.

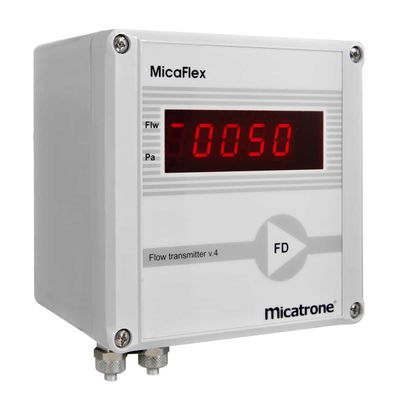

Micaflex FD ver 4 is a sensor intended for flow measurement together with Micatrone`s flow sensor MFS or other types of measuring devices with known flow constants. FD ver 4 has a clear display that shows the current flow / speed. The output signal is flow linear in V or mA. FD comes with certificate and test report from factory calibration.

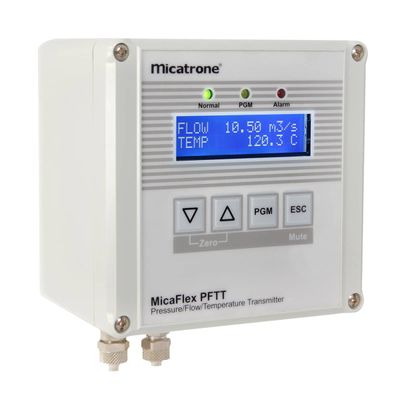

Micaflex PFTT ver 3 is a sensor and regulator for temperature compensated measurement and control of air pressure and flow. PFTT recalculates the airflow to normal cubic metres at 0 °C or to flow at the current temperature. This function is used to compensate for the density changes in the air at varying temperatures.

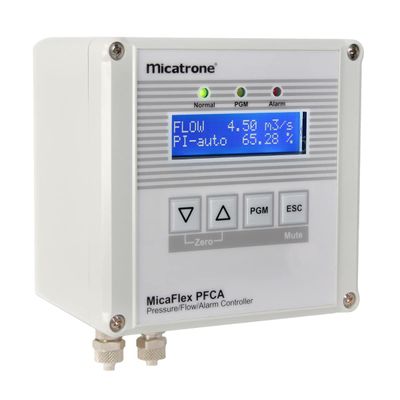

Micaflex PFCA is a differential pressure sensor for measuring and regulating low air pressureand flows as well as monitoring with alarms. PFTCA comes with certificate and test report from factory calibration.

Micaflex PFA-PU ver 3 is a differential pressure sensor with alarm relays for measuring, regulating and monitoring air pressure and flow. Function for controlling cyclic cleaning of MFS probes and measuring outlets when used in dirty air or gas (accessory PU-3). PFA-PU comes with certificate and test report from factory calibration.

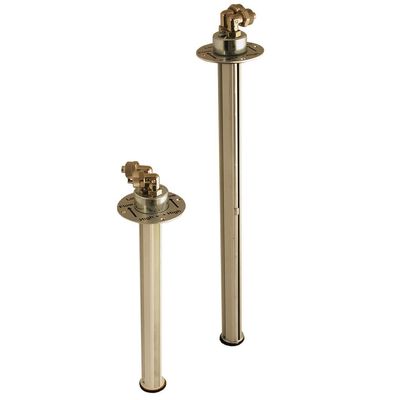

Micatrone flow measurement probe MFS is designed to meet high demands on accurate airflow measurement in all types of air treatment systems. MFS measures an average air pressure across the channel.

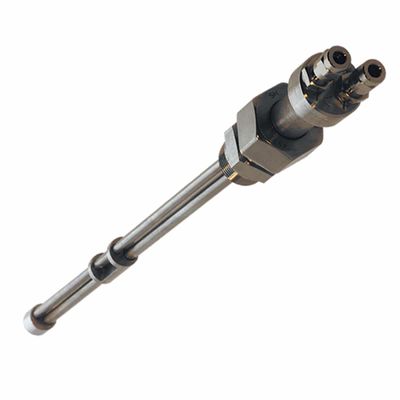

The Micatrone flow measurement sensor MFS-SS is developed to meet high standards for accurate air flow measurement in all types of air handling systems. The MFS-SS averages the velocity profile over the entire duct area. In larger duct dimensions, several MFS-SS are linked together to capture the flow pattern and achieve maximum measurement accuracy.
