ABB Motors and Mechanical Inc. products

AC Motors

Baldor-Reliance - Three Phase Enclosed

The Baldor-Reliance extensive line of General Purpose three phase motors are available in totally enclosed cast iron and industrial steel band for harsh applications. Designed for "general purpose" use means that these motors can be used in many applications. The Super E Motors (EM & CEM) provide NEMA Premium efficiency and are designed as standard to be inverter ready with wide variable torque speed ranges.

Baldor-Reliance - Model 56J - Jet Pump Motors

Industrial pumping applications in wet or humid environments, especially in food and beverage processing facilities in which equipment is cleaned on a regular basis.

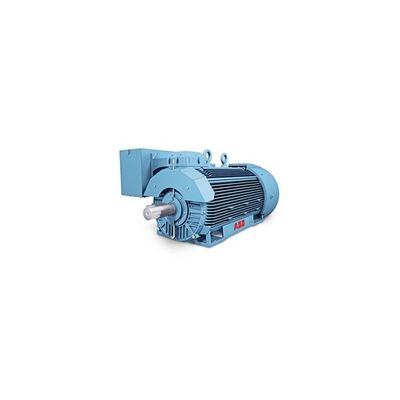

Large AC Motors

Model NXR - General Purpose Motors

Buying low and medium voltage motors has never been easier. ABB’s N-series general purpose motors combine cost-efficient standardized designs and short lead times with safety, productivity, energy efficiency and reliability. Totally enclosed fan cooled motors, type NXR, General purpose above NEMA motors fit most applications where a highly customized motor is not needed.

DC Motors

Baldor-Reliance - Model RPM III - Motors

RPMIII DC Motors feature a laminated frame design which provides for more power, reliability and serviceability in a smaller package. The field proven laminated frame improves commutation and heat dissipation, and requires less mounting space than conventional designs. Choose from our complete line of enclosures including: Drip Proof Guarded (DPG), Drip Proof Guarded Force Ventilated (DPG-FV), Totally Enclosed Fan Cooled (TEFC), Totally Enclosed Non Ventilated (TENV), Totally Enclosed Explosion Proof (TEXP), Totally Enclosed Air Over (TEAO) and Totally Enclosed Dual Cooled (TEDC). A variety of ratings, enclosures and voltages are stocked through 500HP and custom designs are available with a wide variety of modifications to meet your specific application requirements.

Baldor-Reliance - Round Frame Motors

Round frame SCR rated DC motors feature a rugged rolled steel frame designed for long life in industrial applications. Our round frame designs are direct replacements for competitive motors of similar design construction. Stock and custom motors are available in a wide variety of enclosures including drip Proof Fully Guarded (DPFG), Drip Proof Blower Ventilated (DPBV), Totally Enclosed Fan Cooled (TEFC), Totally Enclosed Non Ventilated (TENV), Totally Enclosed Air Over (TEAO) and Totally Enclosed Unit Cooled (TEUC).

DC Drives

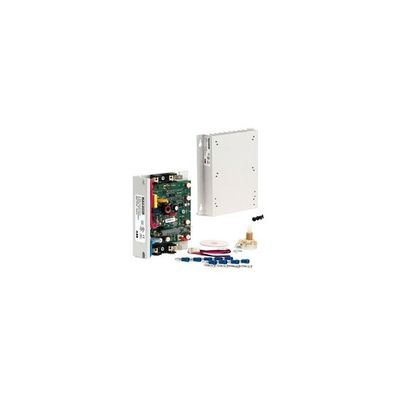

Model Chassis - Drives

A chassis mount, adjustable speed DC Drive for motors between 1/100-3/4 Horsepower. The speed control is designed for 90 VDC PM & Shunt motors. Speed range can be 50: 1 along with load regulation involving 1%. Features include: AC Line blend and Armature Join holder, Auto Inhibit®, Voltage Subsequent, MOV transient defense, 5K speed pot and trimpot corrections for Min, Utmost, Accel, Decel, IR along with CL. Includes Auxiliary heat sink, Barrier Terminal Mother board, RFI/EMI filters along with Signal Isolation (model SI-6).

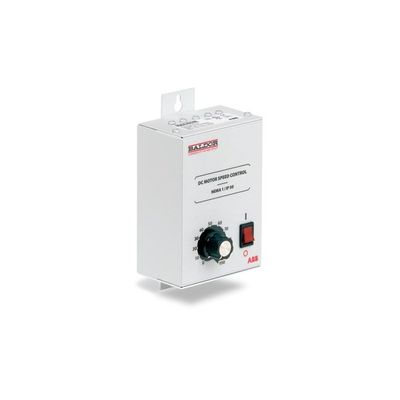

Model NEMA-1 - Compact Control Packaged Drives

A compact control packaged in an all metal NEMA-1 enclosure. This unidirectional SCR drive utilizes a speed control module which prevents motor failure due to demagnetization, and contains AC line and armature fusing as well as a barrier terminal connection block. Plug-in Horsepower Resistor automatically calibrates IR Comp and CL.

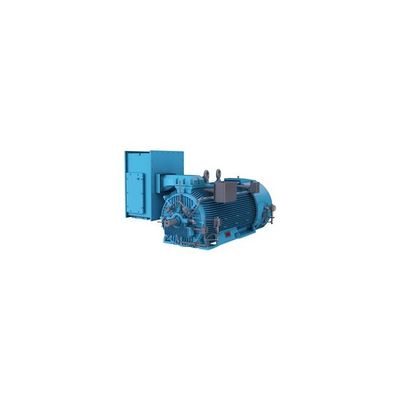

Large Induction Motors

Severe Duty Motors

Baldor`s extensive line of Severe Duty motors are designed to provide exceptional performance and long life in harsh industrial processing applications. These premium construction motors include features desiged to protect against contamination, moisture, vibration and demanding duty cycles. Super-E electrical designs are available on Severe Duty motors to create a packaged solution that reduces energy consuption and handles the punishment of the application.

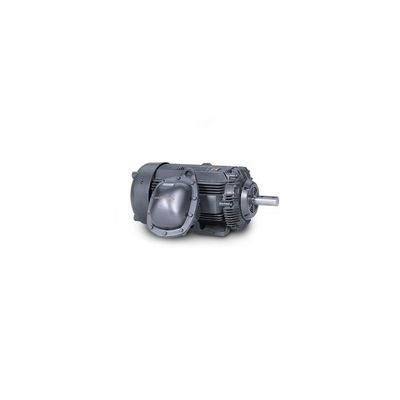

Hazardous Location Motors

Baldor`s extensive line of Division 1 Explosion Proof motors are designed and built to contain an explosion inside and not propagate it into the surrounding atmosphere. Aproval listings are avalable for Class I (Gas) and or Class II (Dust) hazardous enviroments. Suitable for fixed speed, sine wave only operation.
