Absolute Process Instruments, Inc. (API) products

Signal Conditioners - Universal & Temperature Xmitters

API - Universal Input to DC Isolated Signal Conditioner

Field configurable inputs: DC volts: 35 ranges from ±25mVDC to ±10 VDC. DC mA sinking input, 20 ranges from ±0.5mADC to ±20mADC. Potentiometer: 100Ω min. to 1 MegaΩ max.. Thermocouple: J, K, T, E, R, S, N, B, C, D, G, M, P. RTDs: 2, 3, or 4 wire, 10Ω to 8000Ω RTDs. Thermistor: 44000 series, YSI 400, Spectrum. Custom input available.

Signal Conditioners - All Seneca Products

API - DC to DC Isolated Signal Conditioner

Field Configurable Input. Input: 0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-15 VDC, 0-30 VDC.

Signal Conditioners - K-Line Thin DIN Transmitters

API - DC to DC Isolated Transmitter with Sink/Source Input

Field Configurable Input: Input: 4-20 mA, 0-20 mA, 20-4 mA, 20-0 mA, 0-5 V, 1-5 V, 0-10 V, 10-0 V.

Signal Conditioners -All APCS Products

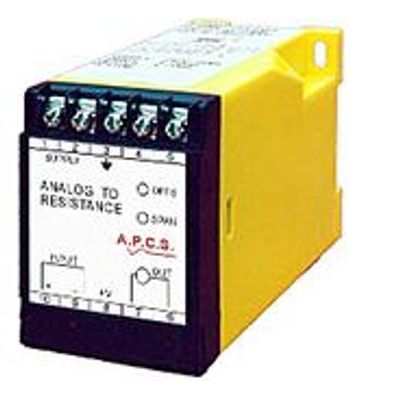

API - Analog to Resistance Converter

Specify output range : Potentiometer: 1k, 2k, 5k, 10k, 20k, 50k, 100k, 200k, custom.

Signal Conditioners - AC Input

API - AC to DC Isolated Signal Conditioner

Specify input range: Factory configured. 0-50 mVAC to 0-300 VAC. 0-1 mAAC to 0-900 mAAC.

Temperature - All Temperature Transmitters

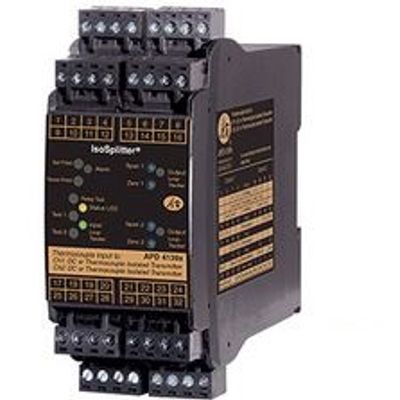

API - Thermocouple to Dual Thermocouple Splitter/Converter

Specify T/C input type and range: Thermocouple J, K, T, E, R, S, N, B, C, D, G, M, or P. Temperature range may be limited by the smallest ANSI range of the 3 T/C types you select. Upscale burnout (std), downscale burnout or last known value.

Temperature - Universal & Temperature Xmitters

API - Universal Input to DC Isolated Signal Conditioner

Field configurable inputs: DC volts: 35 ranges from ±25mVDC to ±10 VDC. DC mA sinking input, 20 ranges from ±0.5mADC to ±20mADC. Potentiometer: 100Ω min. to 1 MegaΩ max.. Thermocouple: J, K, T, E, R, S, N, B, C, D, G, M, P. RTDs: 2, 3, or 4 wire, 10Ω to 8000Ω RTDs.
Thermistor: 44000 series, YSI 400, Spectrum. Custom input available.

Temperature - Head-Mount Transmitters

API - Non-Isolated Head-Mount RTD Transmitter

Programmable: Input: Pt100 or Ni100 RTD. 2, 3, or 4 wire. Selectable Output: Output: 4-20 mA, 20-4 mA.

Temperature - K-Line Thin DIN

API - Universal Input to 4-20 mA Loop Powered Transmitter

Field Programmable Input Input: –150 mV to +150 mV. –30 V to +30V. –24 mA to 24 mA. RTD: Pt100, Pt500, Pt1000, Ni100. Thermocouple: J, K, T, E, R, S, B, N. Potentiometer: 500 ? to 10 K?. Resistance: 1750 ?.

Temperature - RTD Input

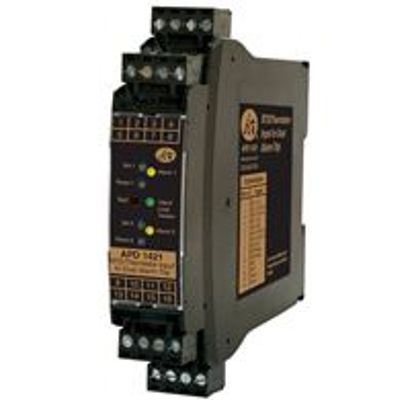

API - Input Alarm Trips RTD or Thermistor

RTD: specify type, 2, 3 or 4 wire, and temperature range: Factory configured. 10 Ω to 2000 Ω RTD including. 100 Ω: 0.00385α, 0.003916α, 0.00392α,. 10 Ω Cu, 1000 Ω Ni-Fe,. 120 Ω Ni or Special.
