ACCU-SCOPE products

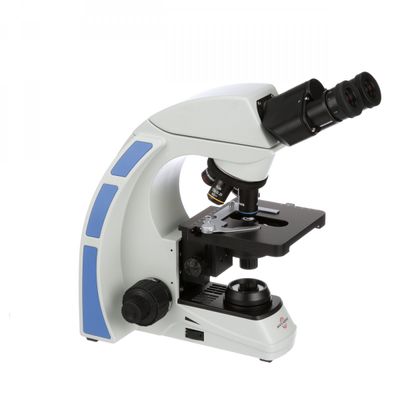

3000-LED Series Microscope with 4x, 10x, 40x Infinity Plan Achromat Objectives.

The EXC-500 delivers exceptional performance and can be configured to suit your individual needs. With several viewing head options, the EXC-500 delivers the comfort and ergonomics you demand in a microscope. Additional accessories and options allow you to configure the EXC-500 for your individualized needs.

Optical System: Infinity optical system, f = 180mm, anti-mold. Viewing Head: Trinocular (0:100, 50:50 split), inclined 30°, rotatable 360°; or Trinocular (0:100, 100:0 split) inclined 30°, rotatable 360°. Optional two head front-to-back or side-by-side teaching configurations. Eyepieces: WF 10x/22mm focusable eyepieces with diopter adjustment and eyeguards. Optional 12.5x, 15x (accepts 20mm reticle) and 20x eyepieces are available.

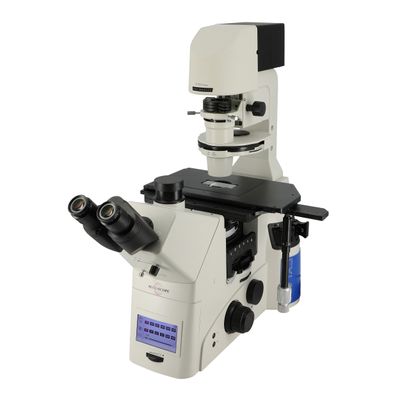

The EXI-610 is ACCU-SCOPE`s flagship inverted microscope for life science research applications. The intelligent frame of the EXI-600 knows the objective and fluorescence filter cube position and light intensity, and displays them right on the front of the microscope.  Work with confidence -- no more guessing the objective magnification or fluorescence channel.

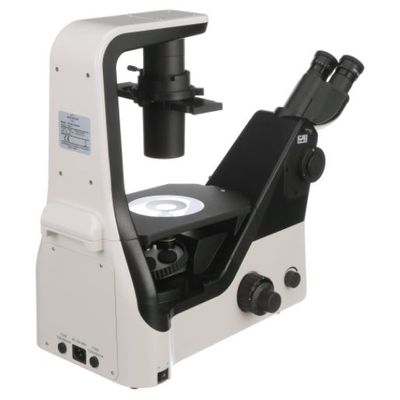

EXI-410 Binocular with Plan Phase Objectives. Binocular viewing head, inclined 45°, with attachable side mounted camera port. Binocular viewing head can be rotated to raise/lower eyetubes by 35mm. Eyepiece/Camera Port: 100/0 or 0/100. WF10x/22mm eyepieces with roll down eyeguards. Side facing quintuple nosepiece. Infinity Corrected Plan 4x, Plan Phase 10x & 20x objectives. Shown with optional 40x Plan Phase objective.. Fixed plain stage, 170 x 250mm with glass insert plates - Ø30mm. ELWD condenser, N.A. 0.3, Working Distance = 75mm. Phase slider with 4x/10x/20x/40x phase annulli. Variable LED diascopic illuminator. Dust cover, power cord, Universal power supply 100 - 240v. NOTE: The EXI-400-PH is not upgradable to fluorescence.

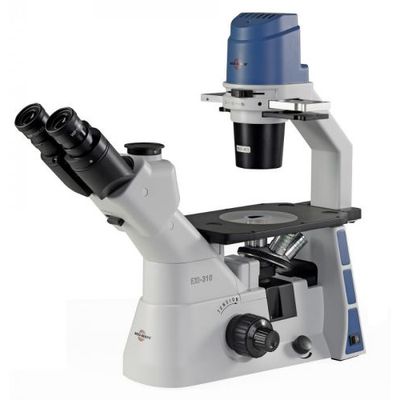

Optical System: AIS Infinity Optical System, anti-fungal. Observation Method: Brightfield, Phase Contrast. Viewing Body: Trinocular, inclined 45°; Interpupillary distance: 54-75mm, Siedentopf type; Eyepiece/camera port (standard): 100/0:80/20. Eyepieces: WF10x/22mm field of view focusable eyepieces with roll-down eyeguards; Optional 15x/16mm, 20x/12.5mm. Nosepiece: Side facing quintuple nosepiece. Objectives: LWD Plan chromat 4x, LWD Plan Phase 10x and 20x.

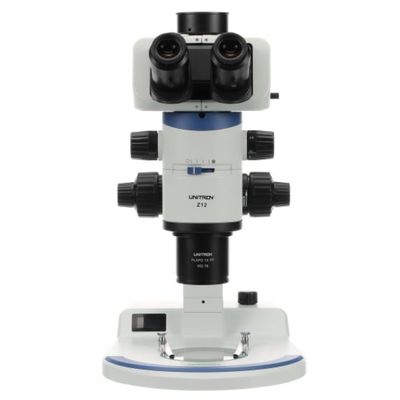

Z12 Zoom Stereo Microscope on LED Stand With Adjustable Color Temperature.

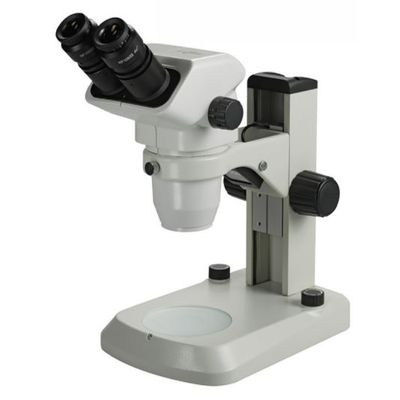

Optical System: Greenough. Viewing Head: Binocular or Trinocular viewing head, inclined 45°. Interpupillary distance adjustment 54-76mm, diopter adjustment +/- 5. Eyepieces: WF10x focusable eyepieces, 22mm field of view. Eyeguards included. Objectives: Zoom magnification objective 0.67x – 4.5x. Focusing System: Dual focusing knobs with adjustable tension control. Stage: Diffused stage plate in the base provides even illumination. Stand: Cast aluminum alloy. E-LED Stand, variable LED incident and transmitted illumination coarse focusing stand, 100mm focusing travel, ø76mm pod holder, stage clips, universal power supply (110-220v), 260mm (L) x 184mm (D) x 267mm (H). Accessories: Dust cover and instruction manual. Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved. Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb.".

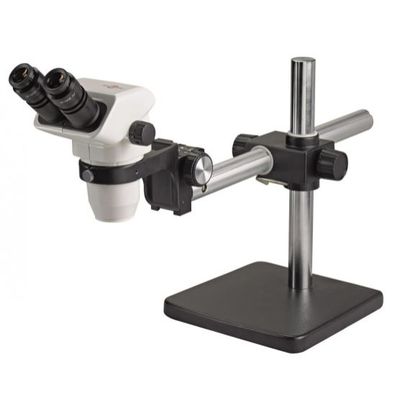

Specifications: Optical System: Greenough. Viewing Head: Binocular viewing head, inclined 45°. Interpupillary distance adjustment 54-76mm, diopter adjustment +/- 5. Eyepieces: WF10x focusable eyepieces, 22mm field of view. Eyeguards included. Objectives: Zoom magnification objective 0.67x – 4.5x. Focusing System: Dual focusing knobs. Stand: Universal boom stand with Delrin® inserts in focus block for extra smooth movements; horizontal arm with bonder port; bonder arm with ø76mm pod holder, 5/8" mounting pin; base dimensions 10" x 10", 14 3/8" vertical post, 20 3/8" horizontal post. Accessories: Dust cover and instruction manual. Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved. Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb. Shipping size: Box 1: 18x15x13 inches; Box 2: 23x14x8 inches Shipping weight: Box 1: 8lbs; Box 2: 34lbs.

Optical System: DIN Optical System, f=160mm. Viewing Head: Monocular inclined head or monocular dual inclined teaching head, inclined 45°and 360° rotatable.
