Y Type strainers derive its name from the shape of its configuration that looks like “Y”. It is very useful when it comes to protecting pumps and compressors because the dirt or debris present in the latter is collected in the strainer without bargaining with the pressure drops. The Y type strainers are most suitable for horizontal and vertical pipelines where the debris is difficult to be removed from the liquid or gas. Found in thousands of pipelines, this strainer is the most economic and common for permanent use. Cast Y Type Strainers are one of the most common strainers present in the pipelines to handle small particles of dust.

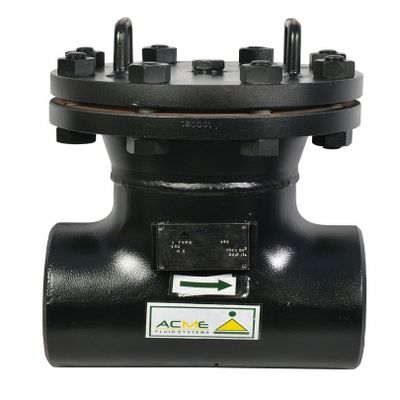

ACME FLUID SYSTEMS is one of the top contributors for Flanged end “T” type strainers in India. “T” Type strainers derive its name from the shape of its configuration that looks like “T”. They are compact in size and shape and are used in applications where there is space crunch. They are widely used in refineries and Petrochemical applications. Size: 2”- 60” (Flanged ends, Butt weld ends) Rating: 150# to 2500#

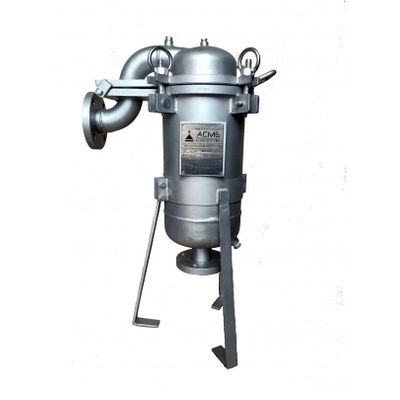

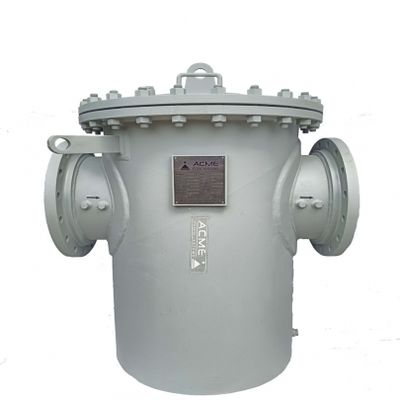

Being a member of the simplex basket strainer, fabricated simplex basket strainers have a basket shaped design with a huge capacity of storing debris. Made up of stainless steel or carbon steel, this type of strainers has a slant top basket design. The design helps the flow of fluid technically because the slant top maintains low pressure drops. When it comes to the weight, fabricated simplex basket strainers weigh lesser than other basket strainers. Due to low weight, labours find it easier to remove the slant top for cleaning purposes. A major turn on of this basket strainer is the optional presence of back -flush or backwash option.

A Duplex Basket strainer with three way ball valves is a member of the double basket strainers family. Like all the double basket strainers, this strainer changes its basket when one gets heavy with the collected debris or dirt. It is, sometimes, called the advanced form of double basket strainers because of the presence of 3 way ball valves. The valves are used to control the flow of fluids so that the pressure can be maintained and the solid particles mixed with the fluid gets collected in the preferred basket. The three way ball valves can be controlled manually as well as electronically as per the convenience and preferences of our clients. We offer various modifications in double basket strainers to meet the “blueprint” of our customers. The three way ball valves play a vital role in connection of ports, however connection of all ports together at one point of time is not possible. The pressure is effectively maintained between 150# and 300#.

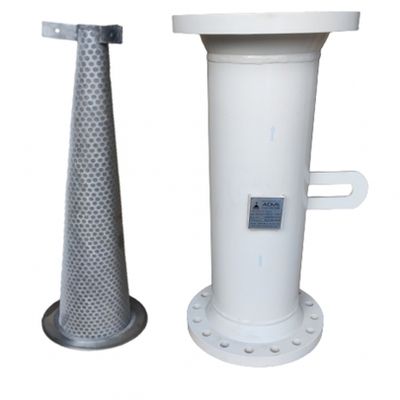

They are basically of 3 types: Conical strainers (Witch hat strainers). Flat Hat strainers. Plate type strainers. Temporary Conical strainers are perfect examples of utility tools for new system start-up. These strainers are shaped in the form of a cone that tapers towards the end and provides a channel whereby damage by contamination can be ceased. Though temporary in use, this strainer acts as a filter for pipes before they are initially cleaned. ACME FLUID SYSTEMS offers a wide variety of conical strainers, more commonly known as Temporary Strainers, which are based on various designs and modern day technology. As inputs these strainers are easily replaceable in a pipe and are considered ideal for escalating the flow in pipe joints.

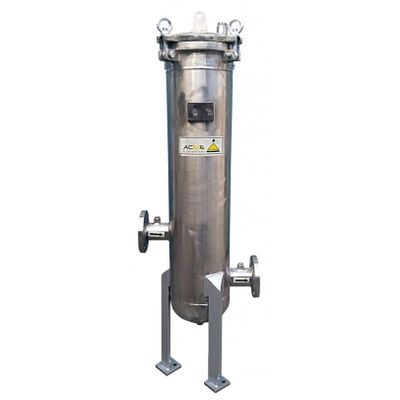

ACME FLUID SYSTEMS manufactures high quality Cartridge filter housings. Cartridge filters are used in applications where you require fine filtration. We have Single cartridge and multiple cartridge Housings and our housings are compatible with mostly available Cartridges (PP, SS, DOE, Sintered, etc.). We put a lot of emphasis in design to ensure zero bypass and perfect sealing of cartridges.

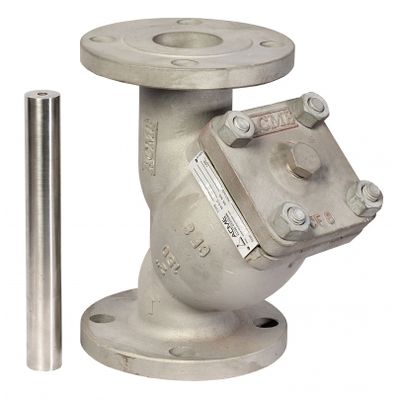

Acme fluid Systems can offer a Magnetic Insert to most types of strainers and filters manufactured. Magnetic Inserts help remove iron content in the fluid and filter elements particles up-to 1 microns. We offer magnets up-to 10,500 Gauss. We can help select the right magnet for your application along with filtration efficiency.

Sight Flow indicators are commonly used in pipelines across industries to observe flow. Double Window Type Sight Flow Indicators provide durable, quick and an economical way to verify the flow of liquids through industrial process lines. They are used in process lines having high pressure and temperature conditions and so are made from cast construction and fabricated design, to meet an industrial requirement of various applications and contain two toughened glasses mounted opposite to each other, for better visibility. Double window type sight flow Indicators are available with various thickness and diameter of glass to suit various applications and industries like pharmaceutical, chemical, petroleum etc. Double window type sight flow indicator is very easy to maintain, since it requires only replacement of glass without dismantling the whole sight glass assembly from the process line.

Tubular Sight Flow Indicators have a unique design that enables complete view of the inflow from every angle. Thus, it allows for 360° viewing of the inflow material and hence helps in saving time and energy of the operator. It is ideal for observation of process fluid for clarity, foam, color and other conditions like presence of moisture, etc. Tubular Sight Flow Indicators provide durable, quick and an economical way to verify the flow of liquids through industrial process lines. They can be installed either in vertical or horizontal lines for flow observation.
