Acromag, Inc. products

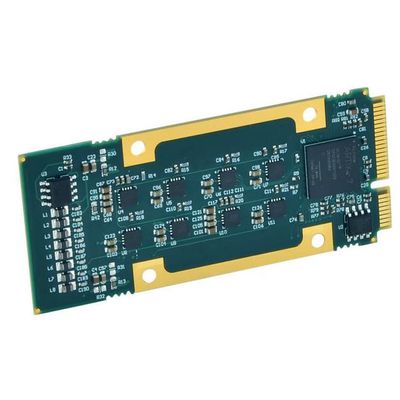

The AP220 outputs analog voltage signals to drive up to 16 devices. When used with a carrier that holds two AcroPack AP modules, up to 32 voltage outputs can be obtained from a single card cage slot.

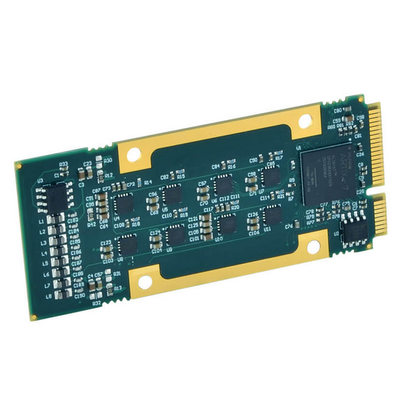

The AP225 outputs analog voltage signals to drive up to 16 devices. When used with a carrier that holds two AcroPack AP modules, up to 32 voltage outputs can be obtained from a single card cage slot. The AP225 is ideal for waveform generation application that require high speed capabilities.

The AP226 outputs analog voltage signals to drive up to 8 devices. When used with a carrier that holds four AcroPack modules, up to 32 voltage outputs can be obtained from a single card cage slot.

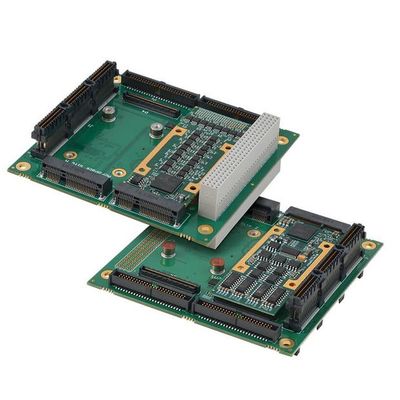

APX4020 carrier cards interface two AcroPack mezzanine modules to a PCI Express bus on a PC-based computer system. The AcroPack product line updates our popular Industry Pack I/O modules with a PCIe interface format. This tech-refresh design offers a compact size, low cost I/O, the same functionality and memory map of the existing Industry Pack modules.

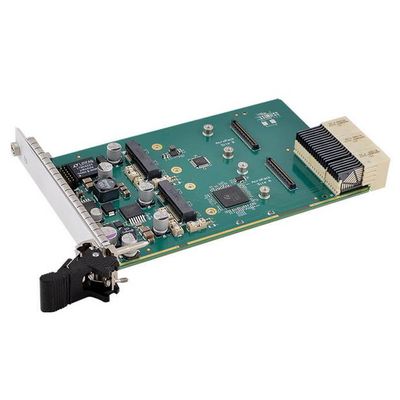

The ACPS3310 is a 3U CompactPCI Serial carrier card for Acromag’s AcroPack mezzanine modules. Two isolated I/O expansion slots interface AcroPack or mini PCIe modules to the PCIe bus.

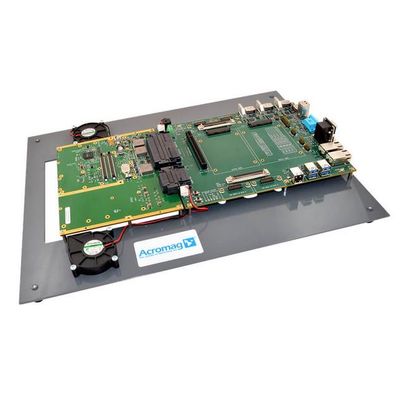

For easier testing and development, Acromag offers an engineering development system to streamline your COM Express® system for fast field deployment. The engineering development system is an engineering development board and an ACEX-4610-LF or ACEX-4620-LF COM Express® carrier board mounted to a metal baseplate.

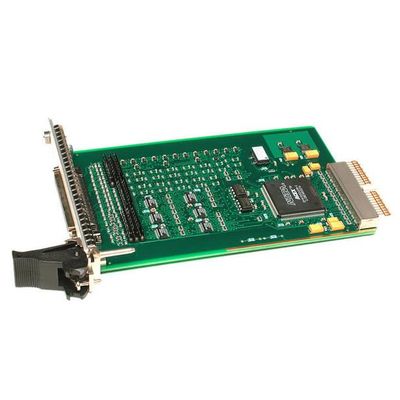

The AcPC424 provides 24 differential input/outputs, 16 TTL input/output channels, and four 16-bit multifunction counter/timers. The 16 TTL input/output channels can be programmed as inputs or as outputs on an individual channel basis. The 24 differential input/output channels are programmed as inputs or outputs on an 4-channel port basis. All input channels can be enabled for change of state, low, or high level transition interrupts.

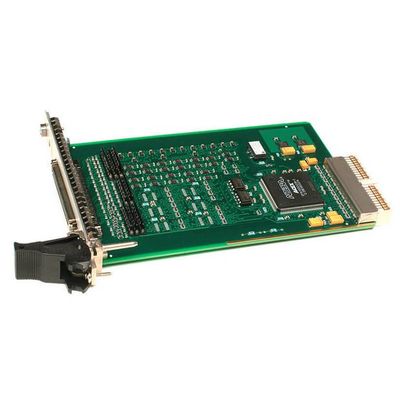

The AcPC464 module provides 64 digital input/ output channels and four 16-bit multifunction counter/timers. All 64 I/O channels, when set as inputs, support configuration for interrupts on either a change-of-state or on a high-to-low or low-to-high transition. A debounce timer is selectable to help filter out false transitions.

The ACPS3320 is a 3U CompactPCI Serial carrier card for Acromag’s AcroPack mezzanine modules. Two I/O expansion slots interface AcroPack or mini PCIe modules to the PCIe bus.
