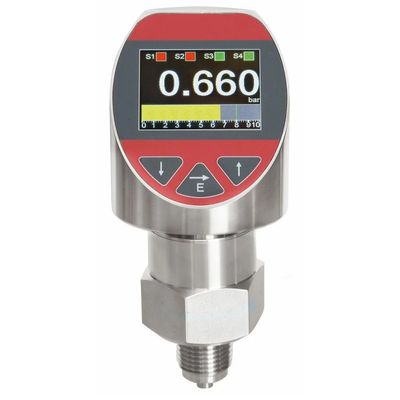

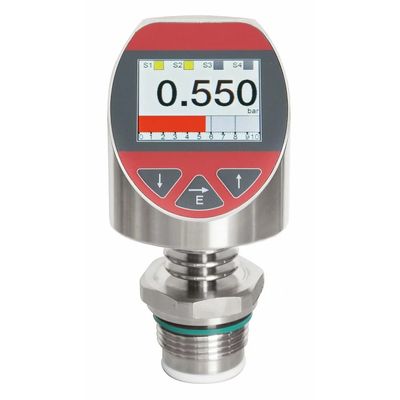

The device Precont PN4LM is an electronic pressure transmitter / pressure switch for monitoring, control as well as continuous measurement of pressures in gases, vapors, liquids and dusts. Due to the device construction with measuring ranges from -1 bar to 25 bar (gauge), measuring ranges from 0 bar to 25 bar (absolute), measuring spans from 100 mbar to 25 bar, process temperatures from –20°C to +150°C, process material CrNi-steel as well as the availability of a variety of hygienic EHEDG-conformal process connections like thread ISO 228-1 with front-flush O-ring gasket, dairy coupling DIN 11851, Varivent® and DRD the device is especially suitable for the use for food and beverage industry, pharmaceutical industry, biotechnology and sterile process engineering.

The device Precont PN4SC is an electronic pressure transmitter / pressure switch for monitoring, control as well as continuous measurement of pressures in gases, vapors, liquids and dusts. Due to the device construction with measuring ranges from -1 bar to 60 bar (gauge), measuring ranges from 0 bar to 60 bar (absolute), measuring spans from 50 mbar to 60 bar, process temperatures from –40°C to +125°C, process materials Al2O3-ceramic / CrNi-steel as well as the availability of industrial standard process connections like thread ISO 228-1 (EN 837 manometer, Inner thread, front-flush), dairy coupling DIN 11851 (front-flush), Varivent® (front-flush), clamp ISO 2852 / BS 4825 / DIN 32676 (front-flush), DRD (front-flush) the device is especially suitable for the use for machinery and plant engineering, air-conditioning and refrigeration plant engineering, hydraulic and pneumatic systems, process industry, environmental technology, facility and building automation.

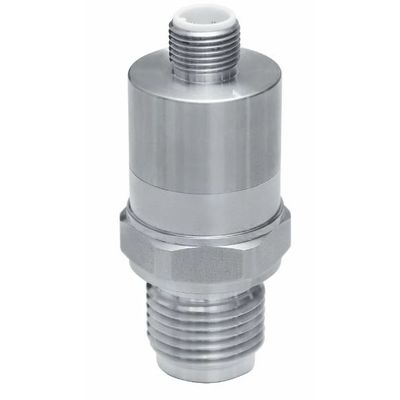

The device Precont® PU4SC is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures. A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements. The front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process, also by CIP/SIP cleaning processes. Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with viscose or also frequently changing media.

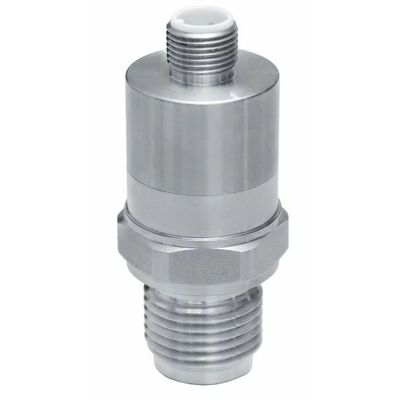

The device Precont® PU4SK is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures. A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements. The front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process, also by SIP cleaning processes. Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with viscose or also frequently changing media.

The device Hydrocont HP4 is an electronic hydrostatic filling level transmitter for monitoring, control and continuous measurement of filling levels and temperatures.Due to its high accuracy and the digital adjustability by RS485 Modbus®-RTU the Hydrocont HP4 can be suited to a wide variety of applications. The robust design and the high quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.

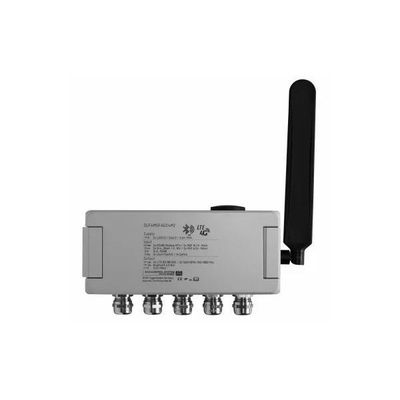

The Datalogger DLF4 serves as a sensor gateway with measured value recording and remote data transmission from various sensors. The device is equipped with multi-function inputs, to which both standard sensors with an analog signal and digital sensors with Modbus protocol, but also pulse signals, which also serve as counter or control inputs, can be connected. A new and innovative redundancy function makes it possible to have the measured values automatically verified by the Datalogger. The recorded data are cyclically transferred to the ACS portal on the Internet. There they can be analyzed and processed by the authorized user from any location.

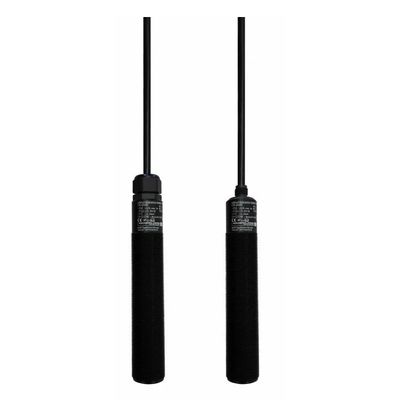

The Sonicont USP4 is an ultrasonic sensor for non-contact level measurement and monitoring in liquids and bulk solids. The sensor is designed as a suspension version with a cable outlet or as a screw-in sensor with a cable or plug connection. Thanks to its slim design, the sensor can be inserted through small container bores or installed in thin monitoring wells. The Sonicont USP4 can optionally be combined with measuring tubes made of PE. This gives the ultrasonic signal a defined measuring path, which means that there are no influences that would affect the ultrasonic signal, for example, from oxidized and uneven level pipes or container walls.
