ACS-Solutions GmbH products

Ultrasonic Metal Testing - Ultrasonic Thickness Gauges

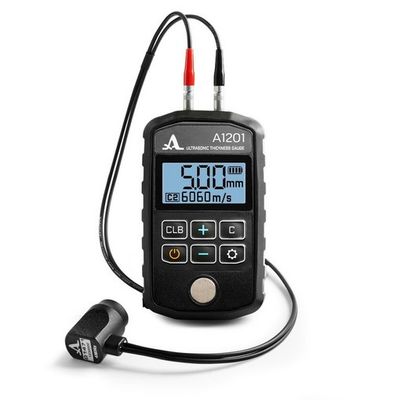

ACS - Model A1201 - Compact Ultrasonic Thickness Gauge

The universal model of the compact ultrasonic thickness gauge offers exceptional ease of setup and use at an affordable price. It is designed for quick and efficient thickness measurements of various steel objects, including small-diameter pipes (from 20 mm), within a 0.7 to 300 mm thickness range.

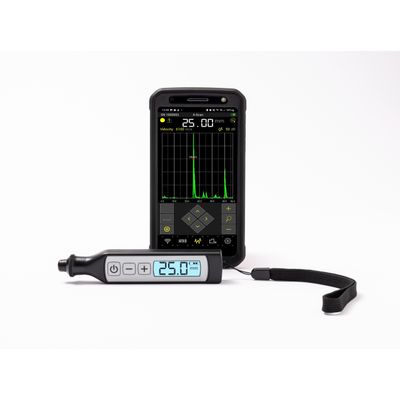

ACS - Model A1207 Pengauge - Pocket-Size Ultrasonic Thickness Gauge

A1207 PenGauge’s integrated product design combines the instrument and transducer into a single package, allowing for true single-hand operation and providing a very capable, yet simple-to-use device. Visit our product

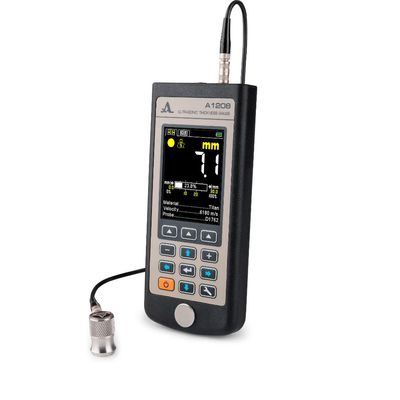

ACS - Model A1208 - Frost-Proof Ultrasonic Thickness Gauge

Frost-proof ultrasonic thickness gauge for difficult weather conditions (from -30° to +50 °). The range of thickness measurement on steel is from 0,7 to 300 mm. Work with both single-crystal and double-crystal transducers. The single-crystal wear-resistant transducer S3567 2.5A0D10CL is used to measure thickness of metals, cast iron and other materials with high ultrasound attenuation.

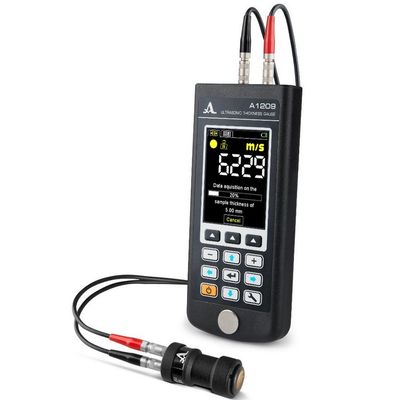

ACS - Model A1209 - Universal Ultrasonic Thickness Gauge

Universal ultrasonic thickness gauge with large high contrast display, integrated extra functions and various modes of measuring, possibility to work with all double-crystal transducers at the range from 4 to 10 MHz and built in memory – everything to guarantee comfort work at any object of inspection. The patented algorithm of automatic adaptation to the surface curvature and roughness (dynamical threshold) makes it possible to perform measuring at corroded surfaces with small radius of curvature as well as at flat smooth surfaces without any additional adjustments, which makes the process of inspection much easier and faster.

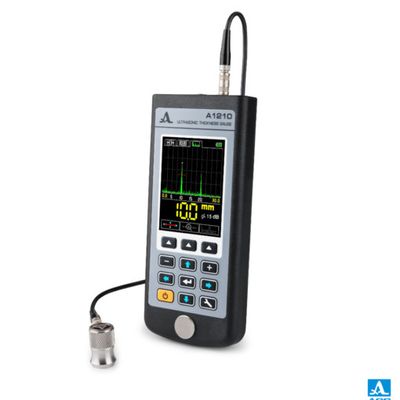

ACS - Model A1210 - Ultrasonic Thickness Gauges

The thickness gauge can operate at the mode of displaying results as digital data or at the mode with graphic imaging of the signal A-Scan.

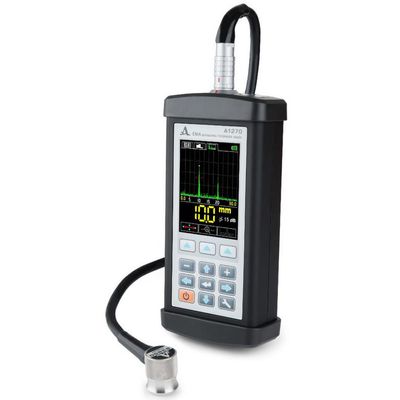

ACS - Model A1270 - Electromagnetic Acoustic Transducer (EMAT) Thickness Gauge for Couplant Free Operation

A novel EMA thickness gauge with an innovative electromagnetic biasing technology (pulse-magnetization with no permanent magnet) is designed to measure metal wall thickness without coupling liquid.

Ultrasonic Metal Testing - Flaw Detectors

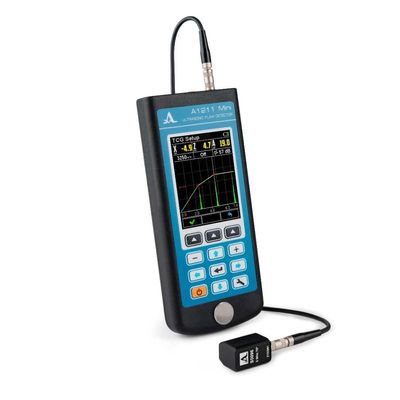

ACS - Model A1211 Mini - Portable Ultrasonic Flaw Detector

Thanks to its extraordinarily small size and light weight this flaw detector can be used in cramped and hard conditions. It is very convenient for business trips. It is the lightest flaw detector – only 230 g with the battery.

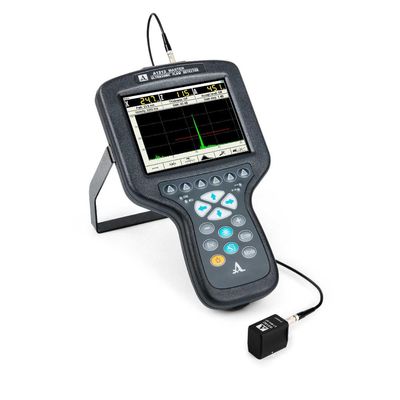

ACS - Model A1212 Master - Portable Ultrasonic Flaw Detectors

Portable small-size general-purpose ultrasonic flaw detectors. They realize standard and special-purpose methods of ultrasonic inspection providing high efficiency and accuracy of measurements.

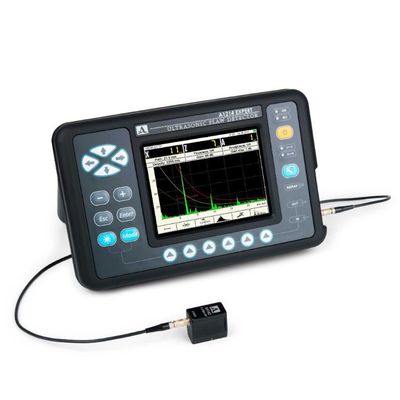

ACS - Model A1214 Expert - Ultrasonic Flaw Detector

Classic version of an ultrasonic flaw detector offering all up-to-date functions. Large high-contrast color TFT display with high resolution (640 x 480) enables you to work for a long time without straining your eyes. User-friendly interface with shortcut keys. Quick-detachable frost-resistant accumulator.

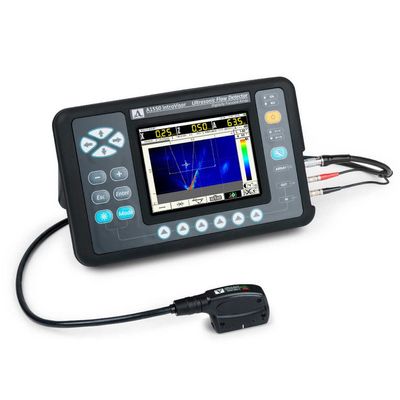

ACS - Model A1550 IntroVisor - Universal Portable Ultrasonic Flaw Detector

The universal portable ultrasonic flaw detector-tomograph with TFM technology (Total Focusing Method) visualize the internal structure of the object as real-time section imaging (B-Scan) making the results interpretation much easier than with a traditional flaw detector. The tomograph uses various types of phased array transducers comparable by size with traditional transducers. Thanks to our special signal processing algorithms a phased array probe substitutes a whole kit of standard transducers traditionally used for testing.
