Adaptas Scientific Instrument Services, part of Adaptas Solutions products

SIS manufactures the filaments for the Agilent Technologies MSD series mass spectrometer (Agilent/HP Models 5992, 5992A, 5992B, 5993, 5993B,5995, 5970, 5970A, etc.) These filaments are exact retrofits for the original Agilent Technologies filaments (#05990-60084). Strict quality control is adhered to when manufacturing these filaments. Each rhenium wire filament is accurately tensioned and aligned on an Agilent source block. The filament wire is accurately positioned over the ion source slit to assure optimum performance.

SIS manufactures the strap or band style filaments for the Agilent Technologies 5989 and other 5980 series mass spectrometers (Agilent #05985-60179). The rhenium filament wire is accurately positioned, tensioned, and spot welded to the metal strap. The metal strap contains the pre-punched holes for easy installation.

S.I.S.™ is proud to offer a direct replacement filament for the Ametek/Dycor RGA leak detector and quadrupole instruments. This is a thoriated iridium filament that has a platinum tab that tests show yields a longer service life. This filament replaces the filaments on the following Ametek/Dycor quadrupoles: Model M102, M106, M106M, M206, M206M, DM106, DM106M, DM206, DM206M, DM306, DM306M. These filaments are replacements for Dycor RGA instruments that use the sources with the Model M102 filament including M and MA series such as M100, M100M, M200, M200M, MA200, MA200M, etc., System 1000 (D-series), Quadlink Series (such as Q100, Q200, etc.), LC-Series (such as LC-100, LC100M, LC200, etc.) and Dymaxion Series with open source heads only, beginning with DM.

100% Dimethyl Polysiloxane: An industry standard non-polar phase suitable for all routine analyses. classic dimethyl polysiloxane technology with high temperature cross-linking excellent general purpose column. wide range of column dimensions available. Suitable replacement for: CP-Sil 5CB, DB- Petro, DB-1, HP-1, HP-1MS, Petrocol DH, Rtx®-1, SPB-1, SPB-1Sulfur, Ultra-1, RSL-150, RSL-160, ZB-1, CB-1, OV®-1, PE-1, 007-1(MS), SP-2100, SE-30, RH-1, CC-1, CP-Sil 5CB MS and VF-1ms.

100% Dimethyl Polysiloxane: A 100% polydimethylsiloxane non-polar column for Simulated Distillation in the petroleum industry. This column is coated with a custom-designed phase which gives low, consistent bleed and is ideal for background subtraction. The column is used for ASTM methods D2887 and D6352 and has a maximum temperature up to 430 °C for the aluminum clad column. Dimensionally stabilized phase, specifically designed for high temperature hydrocarbon analysis. ideal for simulation distillation ASTM methods. Suitable replacement for: DB-2887, DB-HT Sims Dis, HP-1, Petrocol 2887, Petrocol EX2887, Rtx®-2887.

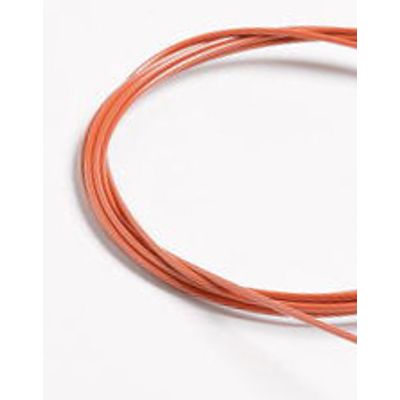

PEEKsil is polymer-sheathed fused silica tubing with an effective outside diameter of 1/32" or 1/16", and now in 0.36 mm. The sheathing polymer is polyether ether ketone (PEEK™) that is mechanically strong and has ideal characteristics for sealing with conventional metal or polymer ferrule systems. PEEKsil may be used as a direct replacement for PEEK tubing used in liquid chromatography systems. The new 0.36 mm OD material allows it to be used directly in place or 0.36 mm OD fused silica tubing.

Used as retention gaps and/or guard columns, deactivated tubing can retain non-volatile “dirty” components from samples which cancontaminate and therefore reduce the performance of your analytical column. Being chemically and thermally stable this tubing can be used to interface various instruments (i.e. GC/MS, GC/FTIR, purge & trap/GC) or connect a column effluent to two or more detector systems.

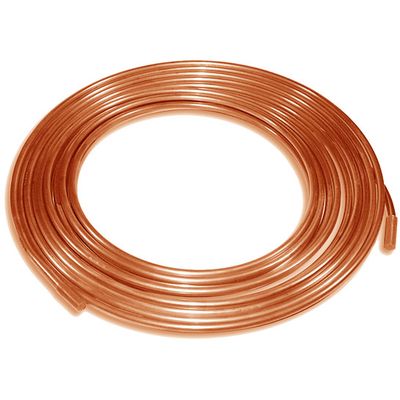

Flexible 1/8" copper is a convenient, non-permeable means of supplying GC carrier gas, Helium for sparging HPLC reservoirs, detector gas supplies, etc. Bulk copper tubing should be solvent-cleaned before use to assure that it is free of contamination. Rinse the tubing with a polar and non-polar non-chlorinated solvent, then connect it to a clean gas supply and heat the tubing to remove residual solvent. *p/n CTB065C is Pre-cleaned copper tubbing.

Its strength and inertness make PEEK (poly ether ether ketone) the obvious substitute for stainless steel when biocompatibility is an issue. SIS offers two types of PEEK tubing: Solid color coded tubing. Natural tan tubing with a color coded stripe. The striped material is recommended for maximum chemical resistance and biocompatibility, as the dye used for the stripe never comes in contact with the fluid stream. PEEK is very chemically resistant and can withstand halide salts and buffers of high ionic strength which can degrade stainless steel. PEEK does not contribute metal ions or provide protein binding sites the way stainless steel can. Certain organic solvents including methylene chloride, DMSO and THF will cause PEEK to swell and will result in lower burst pressure. Concentrated nitric and sulfuric acids will attack the polymer, although 30% nitric acid may be used for passivating.

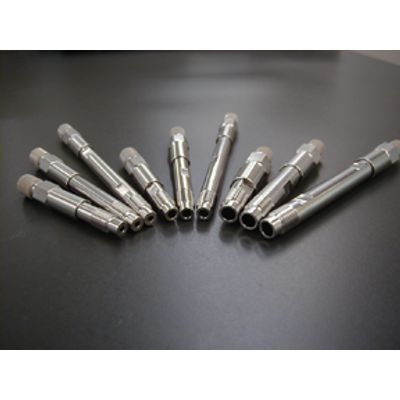

The Scherzo family of columns is one of the most unique and versatile series of columns on the market today. These multi-mode columns utilize reversed phase, cation and anion exchange, as well as normal phase modes all on the same column, virtually eliminating the need for ion-pairing reagents. Ideal for the simultaneous analysis of polar and non-polar analytes from vitamins, to metabolomics saving time and resources.
