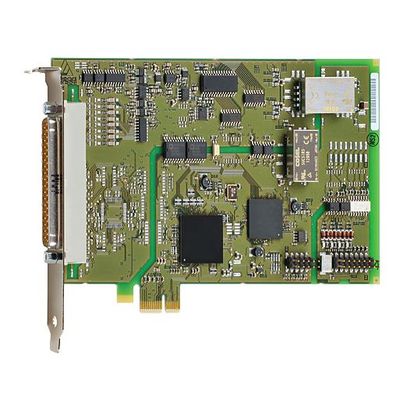

The APCIe-3021 is a PCI-Express analog input card engineered with 16 single-ended or differential inputs with a 16-bit resolution, along with 8 digital I/O channels at 24 volts. This card is ideally suited to applications within industrial process control, and measurement technology, particularly in challenging environments that demand durability and precision. Its use cases extend across multi-channel data acquisition such as controlling chemical processes, acquiring sensor data, and monitoring current measurement. The versatility of the APCIe-3021 card is enhanced with comprehensive software support, including standard drivers for Windows and Linux platforms. Dedicated real-time drivers are available upon request, providing robust driver support that assures seamless integration into existing systems within industrial settings.

The MSX-E3011 is an Ethernet-based analog input system designed specifically for demanding industrial environments. Equipped with 16 analog differential inputs, it supports 16-bit voltage or current inputs, and allows simultaneous data acquisition from four channels at a frequency of 100 kHz. The robust metal housing with IP65 protection makes it suitable for harsh conditions, and it functions efficiently over an extended temperature range of -40°C to +85°C. The ARM®9 32-bit processor enables in-situ data calculation, facilitating real-time processing close to the data source. One of the key features is its synchro connection that allows multiple units to be cascaded and synchronized at microsecond precision, ensuring coherent data acquisition and processing across systems. Moreover, the Development Mode provides flexibility to customize applications, enhancing the operational efficiency. The auto-refresh mode enables continuous data acquisition, with the option to employ triggers for refined synchronous operations.

The MSX-ilog-3016 is a sophisticated Ethernet-based analog data logger designed for long-term data acquisition and visualization. It features 16 differential analog inputs with a resolution of 16 bits and a throughput rate of 1 kHz per channel. This data logger is equipped with a built-in 4 GB flash memory, enabling onboard processing of acquired data into physical values such as millimeters, bar, or degrees Celsius. Its web-based interface eliminates the need for additional software, facilitating parameterization and visualization directly through the integrated site. The MSX-ilog-3016 is highly durable, suitable for external use, thanks to its IP65 protection rating, numerous protective circuits, and an operating temperature range from -40°C to +85°C. It supports applications in monitoring and regulation tasks, with capabilities for automatic acquisition, visualization, and data storage.
