Designed to measure Oxygen in flue gas for combustion efficiency and fuel saving. Ideal for measurements in post combustion chamber at high temperature typical of incinerators, cremators, heating furnaces, soaking pits and annealing furnaces.

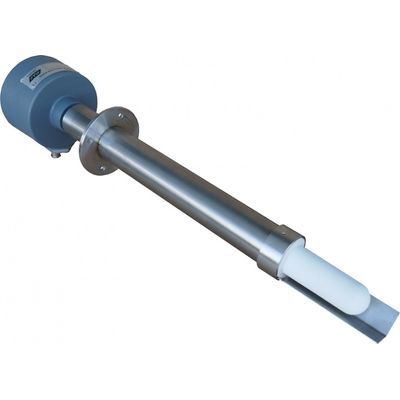

Self-heated probe, designed to measure Oxygen in flue gas (up to 700°C) for combustion efficiency and fuel saving in small and medium boilers fed by Natural Gas, light and medium oils, Oxygen control in drying biological muds process, measure of water vapor content in Textile and Pulp&Paper. Available as a transmitter with 4-20 mA output from the probe head or combined with a control unit / display. MiniProbe M7873 is the only SIL 2 compliant Zirconia in situ analyser able to ensure a reliable O2 measure in safety-demanding applications such as biological mud dryers

Self-heated probe, designed to measure Oxygen in flue gas (up to 700°C). Designed to measure Oxygen in flue gas for combustion efficiency and fuel saving in big boilers and power plants fed by Natural Gas, light and heavy oils, LPG, Biomass and Coal.  Available as a transmitter with 4-20 mA output from the probe head or combined with a control unit / display.

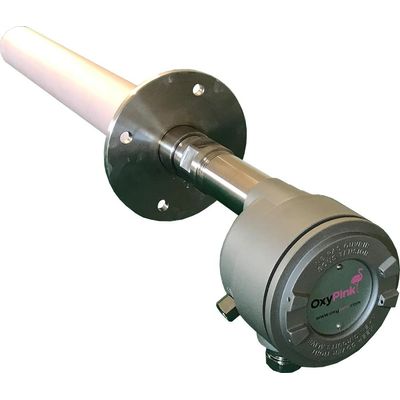

OxyPink is a highly innovative Zirconia probe, the only one able to measure residual O2 concentration in flue gas in the whole range of temperature from 0°C to 1250°C thanks to a simple but very advanced integral heating system, managed by the external electronics.  Able to withstand the most severe and dusty process conditions, this resilient in situ analyser, completely ceramic-made, has been specifically designed for cremators and incinerators, but it the ideal solution for all combustion processes where the probe must be always in line, whichever is the flue gas temperature.

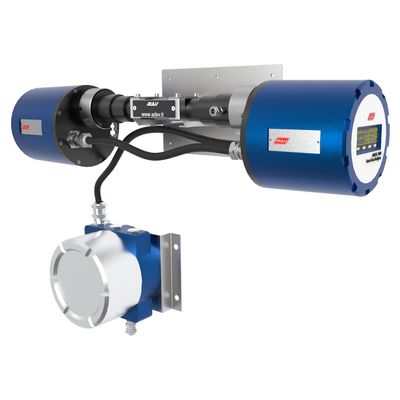

AtLAS-900 is a laser gas analyser for industrial on line applications, able to measure a great number of gas in situ (cross-stack). The TDLAS technology provide an incredibly fast response time, small drift and measure virtually free from interferences of other gases. Optimized for heavy industrial applications and available for safe or Hazardous area applications (ATEX Zone 1 / Zone 21), AtLAS-900 features a very robust design and come with all the needed accessories for an easy installation and periodical calibration.

The ZCS Carbon Probe is a resilient in situ analyser, intended to be used to control the carbon potential of an endothermic or Nitrogen/Methanol based heat treating atmosphere. The patented electrode design and the special used alloy, reduce the contact area with Zirconia. This solution increases the probe service life, reduces carbon built up and guarantees a very fast response time. ZCS Carbon Probe, located directly in the furnace heat zone, responds almost immediately to changes in the carburizing atmosphere and totally eliminate the need for gas sampling system

AtLAS-900 is a laser gas analyser for industrial on line applications, able to measure a great number of gas but optimized for Oxygen measurement (inerting control) in centrifuges and reactors in chemical and pharmaceutical industry, as well as in biogas and landfill gas. The sample bypass tube can be in Stainless Steel or Teflon-Coated in case of sample gas with aggressive substances. The TDLAS technology provide an incredibly fast response time, small drift and measure virtually free from interferences of other gases. Available for safe area or for hazardous area classified Zone 1 / Zone 21 (ATEX certified).

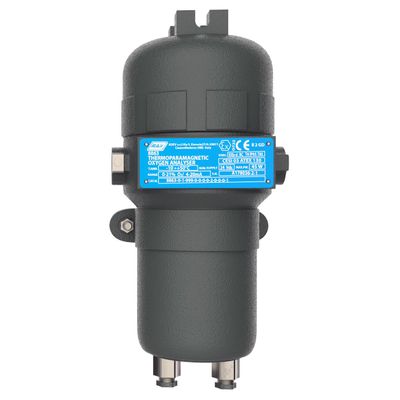

Rugged Oxygen analyser for inerting control and heavy-duty applications. Selected materials and modular design makes this analyser practically indestructible and the ideal solution for safety-critical industrial applications. The weatherproof and explosion proof 8863 is designed for field installation in the most severe conditions, minimizing the sample conditioning requirements.

Robust analyser for safe and hazardous areas, suitable for Oxygen enriched samples. Paramagnetic P8863 Oxygen analyzer allows the selective analysis of the O2 concentration in process gases taking advantage of its evident paramagnetic property that makes it attracted by a magnetic field. The specific features of the measuring principle makes the analyser virtually free from cross sensitivity by other gases, allowing its use in a variety of applications that range from purity measurement to O2 analysis in complex stream gases containing Hydrogen, Hydrocarbons and many others.

Rugged Zirconia analyser for ppm or % Oxygen measurements in combustion & inert gas. The instrument features a special Zirconium Oxide sensor with reference to the solid state (micro-pod technology) eliminating the need for a reference air flow.  The weatherproof and explosion proof 8864 is designed for field installation in the most severe conditions, minimizing the sample conditioning requirements
