Adler SpA products

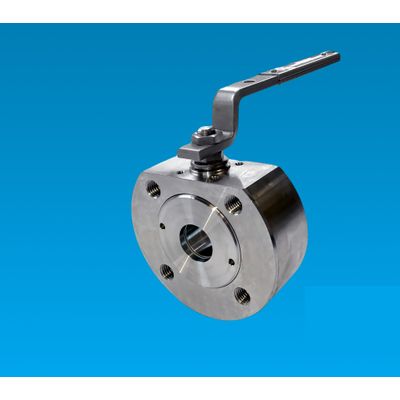

Ball valve “wafer type”, full bore, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN 1759-1; ASME B16.5; ANSI B1.1.; ISO14313; EN 558 (basic series 100). Available size from DN 10 to DN 50 in carbon steel, stainless steel and special steel. Rating  PN 6 / PN 10 ÷ 40 / ANSI 150 ÷ 300.. Double seals on body/insert junction. Chevron ring on stem.

Ball valve 2 piece SPLIT BODY type full bore  ISO 14313, manufactured from round bar or casting, construction according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; ANSI B16.10; EN 558 (Basic series 3). Available size from DN 15 to DN 200 in carbon steel,  stainless steel and special steel. Rating ANSI 150 (on request PN 16). Double seals on body/end junction (patent n°00216919). Chevron ring on stem.

Threaded ball valve 2 piece, full bore, manufactured from casted, construction in according to EN 12516-2; ISO 14313; ANSI B1.1; DIN 3202 M3. Available size from ¼” to 2” in stainless steel. Rating PN 40 ÷ 100. Thread available ISO 7RP (GAS); ASME B1.20.1 (NPT). Chevron ring on stem.

Threaded or welding ball valve 3 piece full bore, manufactured from round bar or casted, construction in according to EN 12516-2; ISO 14313; ANSI B1.1; DIN 3202 M3. ISO 14313. Available size from ¼” to 4” in stainless steel, carbon steel and special steel. Rating PN 20 ÷ 100. Thread available ISO 7RP (GAS); ASME B1.20.1 (NPT); ASME B16.11/EN12760 (SW); ASME B16.25 / EN 12627 (BW). Chevron ring on stem.

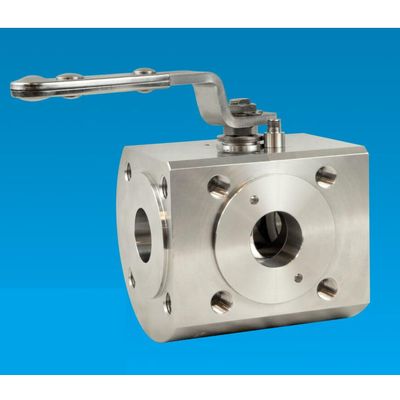

Three way 90° ball valve “wafer type”, full bore, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313.
Available size from DN 15 to DN 150 in carbon steel, stainless steel adn special steel. Rating PN 10 ÷ 40 / ANSI 150 . With  “T” bore or “L” bore type ball. Chevron ring on stem.

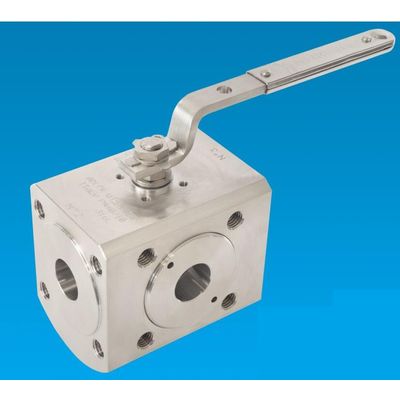

Four way 90° ball valve “wafer type”, manufactured from round bar, according to ASME B16.34; ISO 14313. Available size from DN 15 to DN 150 in carbon steel, stainless steel and special steel. Rating PN 10 ÷ 40 (On request ANSI 150). With “X” bore type ball. Chevron ring on stem.

Ball valve “WAFER TYPE” end tank execution with tilted 15° stem , full bore, oversize flange for connections tank, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313.  Available size from DN 50 to DN 100 in stainless steel and special steel. Rating PN 10 ÷ 16 – ANSI 150 on request. Chevron ring on stem.

Ball valve with heating jacket made in carbon steel or stainless steel. Flanged, threaded or welding ends. FX1 type made from FA1 ball valve type.

Ball valve “wafer type”, with heating jacket made carbon steel or stainless steel, flanged, threaded or welding ends. FX2 made from FA2 ball valve type.
