ADTEK ELECTRONICS CO., LTD. products

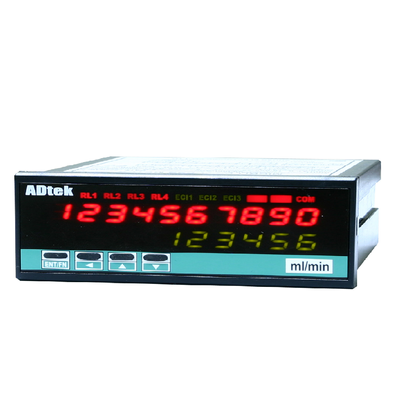

The CS2-TM Totalizer controller provide high accuracy measurement, display, control and communication (Modbus RTU mode) of 0~10V/4~20mA from flow meter or mV from Shunt for Amp-Hour. There are two display screen and 3 external control input (DI) in standard and the optional 4 Relay, 1 Analogue, 1 Pulse and RS485 port available. They are also supporting fantastic control function as like as N, R, C mode for totalizer and batch control.

UC1 is a universal input converter or isolator which include input signal 0(4)~20mA, 0~10V, Thermocouple, RTD, etc. Base on measuring signal needed, parameters can be set via panel button with LCD display. Programmable unit without need of hardware modification or jumper wire / Dip-Switch. UC1 offer 3 kind of output option, analogue output or Relay *2 or RS-485(Modbus RTU). With universal input range and different output function, it help reduce product inventory. Parameters can be easily set via button on site or by software provided through communication port. And with CE, FCC approvement.

AME uses an ARM Cortex M3 microprocessor to perform the serial port to Ethernet function. It uses state allocation to handle TCP/IP protocol stacking, bringing users lower-cost TCP/IP protocol conversion under limited resources. AME supports TCP, UDP, IP, DHCP client, Modbus/TCP and even HTTP protocols. You can use any browser to set parameters, or use Hyper Terminal in console mode.
