Advanced Corporation for Materials & Equipments Co., Ltd. products

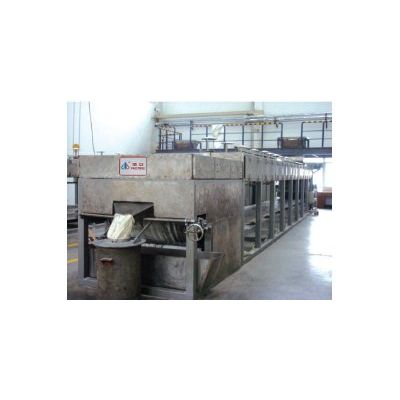

This series equipment are specialized equipments, used for the drying of APT and the production of AMT. It owns the structural features of steel belt transmission, continuous feeding with inner infrared heating system.Compared with the conventional double cone vacuum drying and chain-plate drying, this equipment has the following advantages:better drying effect,higher efficiency, no damage to the salts crystal shape, no contamination of materials, reliable performance, highly automated, large output,good uniformity and low energy consumption.This  equipment  has an excellent  low temperature control capacity(≤80℃), it is an ideal machine for the production of AMT and is highly accepted by the customers.

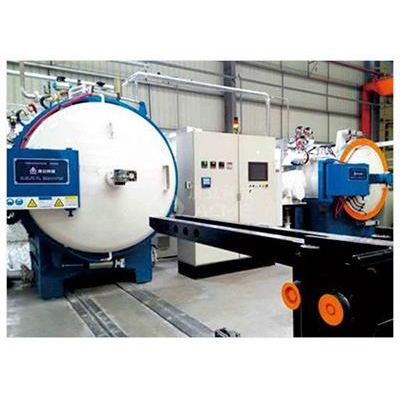

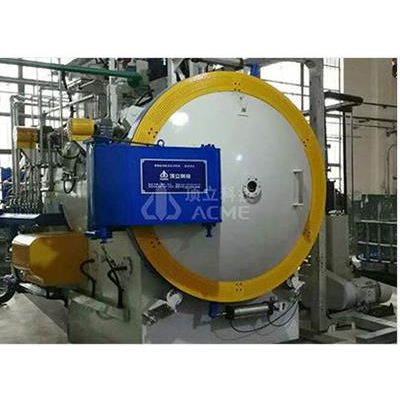

This series of Single chamber high pressure gas quenching furnace consists of furnace body,vacuum system, water cooling system,gas inflation system, gas cooling system, electric control system and furnace outer material car, etc. It is used for high pressure gas quenching of materials like high-speed steel, tool & mouldsteel, high temperature alloy,cemented carbide,martensitic stainless steel, titanium alloy etc and also for annealing process of magnetic material.It has special compacted inner furnace structure,with high-efficiency heat exchanger; it uses inside 360°nozzle all around cooling method and the highest gas quenching pressure can reach up to 10 bar. It is configured with optimization designed gas quenching system and electric control system and there is little deformation of work pieces.

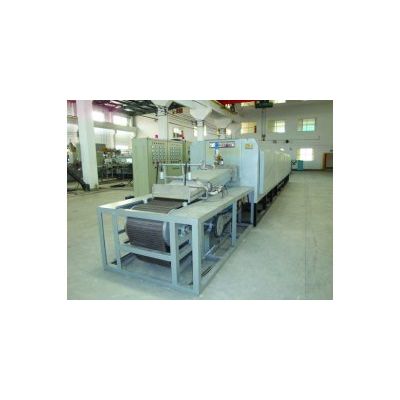

Specialized synthesis belt furnace for LiFePO4 is mainly used for calcination, reduction and synthesis of metal powders and salt material. The furnace does not need boat-pushing system; feeding material is automatically sprayed onto the belt. The equipment has a large output and stable product quality with high automation level. The operation is simple, convenient and humanized. Every independent heating sector is equipped with thermal couples, intellectual digital PID adjustor and SCR forming a closed-cycle control system to ensure precise control of temperature. It is the upgraded substitute of traditional push board kiln for the synthesis of high quality LiFePO4. It is collocated with special fast cooling technology which can remarkablely improve LiFePO4 quality. We have had three patents in belt-style furnace manufacting.

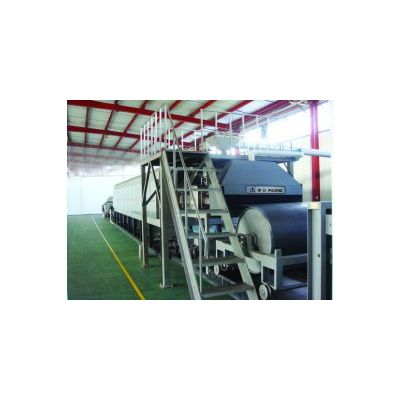

This series of specialized belt furnaces for synthesis LiFePO4 are mainly used for pre treatment and high temperature treatment of battery material. The whole equipment is composed by furnace body, mesh belt transmission system, gas/water supply system and temperature control system.Furnace body consists of loading section, synthesis section, water cooling section and unloading section.Mesh belt transmission system consists of mesh belt and transmission device. The mesh running speed is controlled by frequency adjustor and is directly visual. Gas/water supply system has adjusting and protection device. Advanced wasted gas/water draining and collecting device ensures protection gas stable and pure.emperature control system is composed by thermocouple, digit intelligent PID adjustor and SCR, to form a close loop control system and realize automatic precise temperature control.

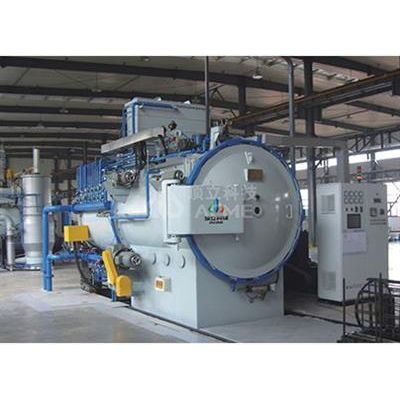

It is used for vacuum oil quenching of materials like alloy steel, bearing steel, spring steel, die steel, high-speed steel etc. also for annealing and gas cooling foe the above materials.

It is used for vertical gas quenching of materials of tool steel, die steel, high speed steel, super high strength steel, etc. It is specially applied for vacuum gas quenching of large size easy deforming products like long rod type parts, axle parts, plate type parts, etc. The components feature little deformation and good effect.

It is used for vertical gas quenching of materials like tool steel, die steel, high speed steel, etc. It has no special dimension and shape requires for the components. The components features little deformation and good cooling effect.

It is used for vertical gas quenching of materials like tool steel, die steel, high speed steel, super high strength steel, etc. The heating chamber is separated with the quenching chamber, which saves much energy and has good cooling.

It is used for HIP and rapid cooling gas quench treatment of various metal, copper base, iron base powder, friction resistant material ceramic material and etc.

Vertical vacuum water quenching furnace is applied for the solution of titanium alloy in aerospace industry, such as TC4, TC16, beryllium bronze in aircraft instrument elastic elements. Precision alloy in aircraft sensor like Ni-based and Co-based high elastic alloy 3J1, 3J21, Ni-based constant elastic alloy 3J53, stainless steel in the field of nuclear energy like17-4PH, 410.
