Aerocom GmbH & Co products

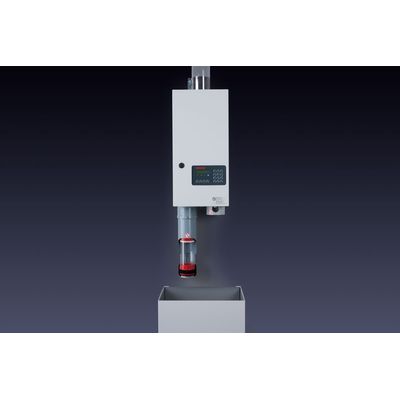

This station is basically used in the applications of Cash-Handling. As initial- or end station, tube approaching from top.

Arrival from top or below. The Trend-station transports a stored carrier fully automatic to the desired destination. Carriers arrive gently on a cushion of air and are deposited in a sound proofed receptacle.

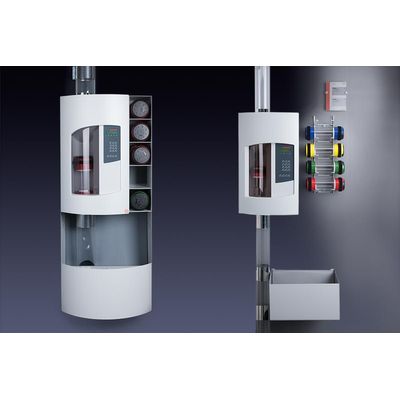

Microprocessor controlled pneumatic tube system, universal as through- or endstation. Arrival from top or below. Comfortable storing of a carrier in the send-opening in the front cover. The TITAN-station transports a stored carrier fully automatic to it`s desired destination. Carriers arrive gently on a cushion of air and are deposited in a sound proofed receptacle.

The station is opened and closed automatically. The carrier is not removed from the station for loading and unloading. The carrier is transported automatically to its destination.

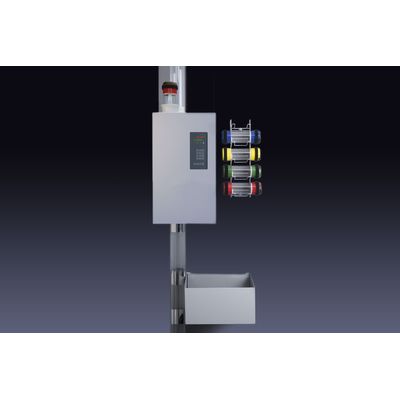

This station sends a stored carrier automatically to the desired destination. Carriers arrive gently on an air cushion and are deposited in a sound proofed receptacle.

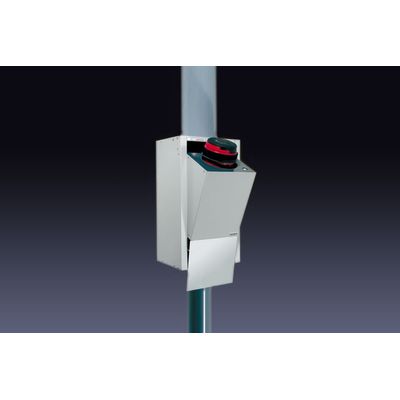

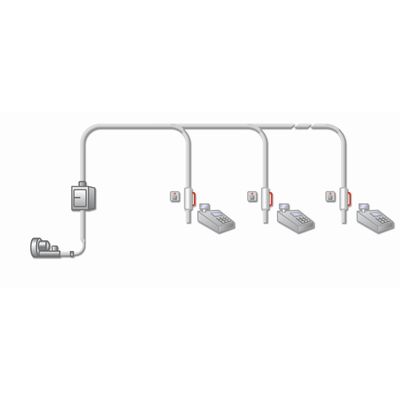

For cash deposits from different checkout stations to the secure area. Sending stations can be connected in sequence and are easy to install to suit the building and the customer’s requirements. Lockable versions can be supplied on request. Each station comes complete with integral LEDs showing all functions/states of the system. Sending stations cannot communicate with each other directly.

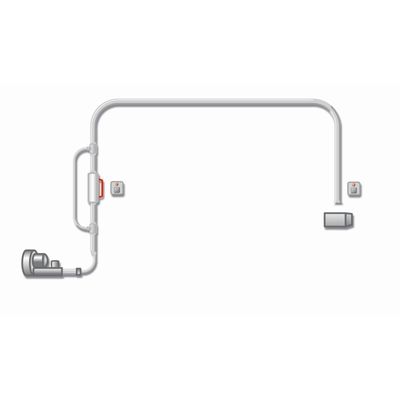

The simple two-point connection. From A to B and from B to A.

The Aerocom carrier is a durable, precision engineered transportation receptacle. For over 20 years, the proven design of ist sturdy swivel cap has been a standard for Aerocom. It is easy to handle, reliable and there`s fit for every application.

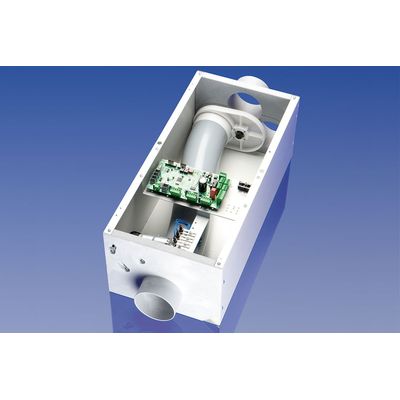

Diverters act as a switching station that allows a carrier to travel to its destination in the most direct path set up by the diverters. Through this switching process, Aerocom has the ability to create flexible multi-station pneumatic tube systems that make it possible for carriers to be sent from any one station to any other.

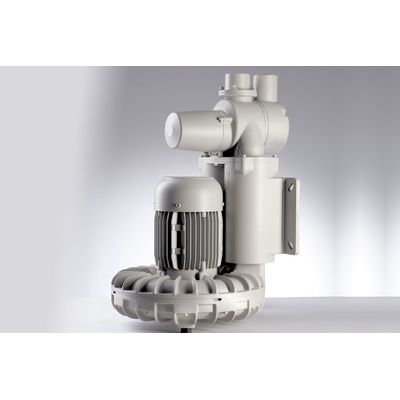

Aerocom`s pneumatic tube systems utilize blowers that produce both presure and vacuum. Pressure vs. vacuum is what determines the direction the carrier will travel. The volume of air being moved provides the drive that pushes, or pulls the carrier at speeds of six to eight meters per second.
