Aethlabs products

The Inlet Protection Kit for the microAeth is designed to help protect the instrument and data from moderate water and bug intrusion and in-line condensation throughout the sampling train. This kit includes a custom designed protection cone, water/bug trap, all necessary tubing and connectors, along with a custom mount and cable ties for installation.

The microCyclone 50 is a miniature PM_2.5 size-selective inlet for the microAeth. This sharp-cut cyclone has a size cut of 2.5 micron at 50 ml/min and 1.6 at 100 ml/min.

The microCyclone 170 is a miniature PM_2.5 size-selective inlet for the microAeth. This sharp-cut cyclone has a size cut of 2.5 micron at 170 ml/min and 2.9 at 150 ml/min.

A small, portable, passive nafion / desiccant aerosol dryer. Desiccant life of 72 liters before recharge or replacement.

The barb fitting swivel connector allows the attachment of flexible hose that can swivel independently of the microAeth. The barb fitting swivel connector joins a 1/8" inside diameter (ID) hose on one side with a 10-32 threaded fitting on the other - which fits into the inlet of outlet port on the microAeth.

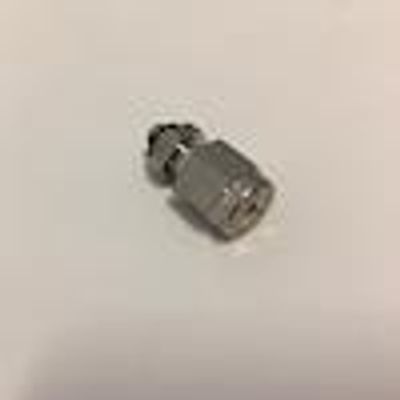

The 1/8" Compression Fitting Connector joins a 1/8" outside diameter (OD) metal tube on one side with a 10-32 threaded fitting on the other - which fits into the inlet or outlet port on the device. This fitting is made of 316 Stainless Steel.

The 1/4" Compression Fitting Connector joins a 1/4" outside diameter (OD) metal tube on one side with a 10-32 threaded fitting on the other - which fits into the inlet or outlet port on the device. This fitting is made of 316 Stainless Steel.

The lapel clip allows the sampling hose to be securely situated near the target site of measurement - near the face, for instance.

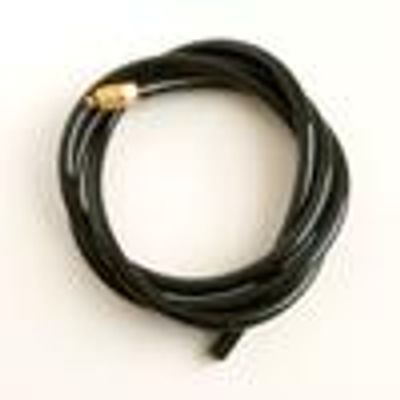

The standard sampling hose with 1/8" inside diameter (ID) and 1/4" outside diameter (OD) and a length of 40 inches (1 meter) serves as a conduit between the target site of measurement and the microAeth. The Barb Fitting Swivel Connector allows for ease of movement and prevents the black static dissipative polyurethane hose from binding.

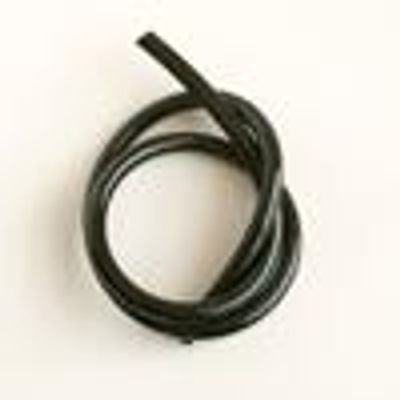

Additional sampling hose with 1/8" inside diameter (ID) and 1/4" outside diameter (OD) in custom lengths can be acquired (in multiples of 10 feet) for various applications. This is a black static dissipative polyurethane hose.
