Afriso-Euro-Index GmbH products

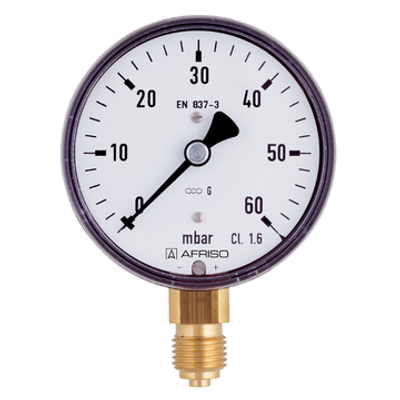

Benefits: With zero correction. Ideal for low pressure ranges. GOSSTANDART-certified. Application: For gaseous, dry media which do not attack copper alloys. For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

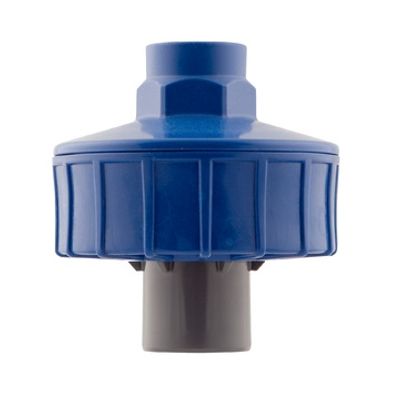

Benefits: Robust plastic version. Suitable for many chemicals. Perfect solution for waste water. Various materials available. Application: For mounting to Bourdon tube pressure gauges or pressure switches. Specially for polluted waste water, fertilisers, corrosive media.

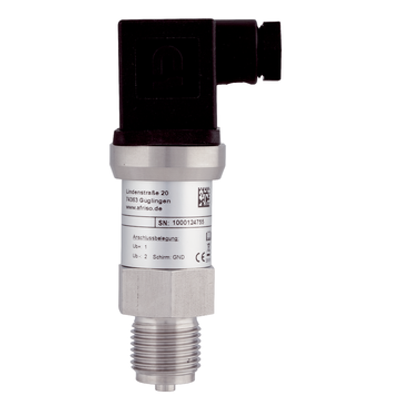

Benefits: Proven ceramic technology. No mechanical ageing of the measuring cell. No transmission liquid. Versions for relative pressure and absolute pressure. Small temperature error.

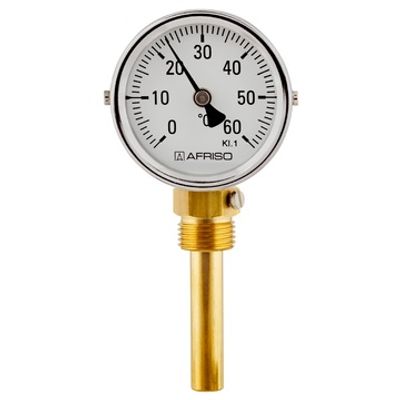

Benefits: Ranges: -20/+60, 0/60, 0/120, 0/160 °C, Brass thermowell, Brass stem. Application: Mechanical engineering, plant engineering, pipelines, boilers, heating technology.

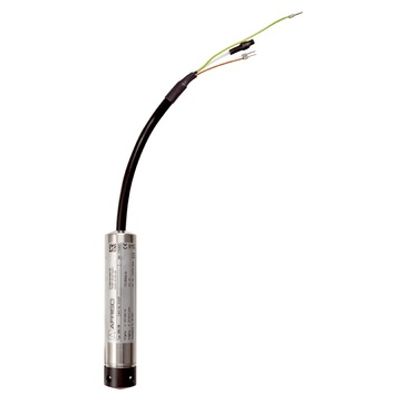

The level indicators HydroFox® DMU 08 use silicon technology and feature calibrated, amplified sensor signals which are available as standardised voltage or current outputs.

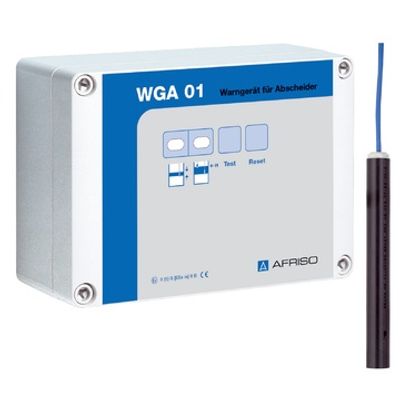

WGA 01 consists of a control unit, a capacitance probe (WGA-ES4) for monitoring the thickness of the oil or petrol layer and an optional additional PTC thermistor probe (WGA-R6) for detecting the maximum level (overflow alarm). The control unit is equipped with 2 relay outputs, visual and audible alarms as well as Test and Acknowledge buttons. The WGA-ES4 probe is mounted at least 150 mm below the constant level of the separator. As soon as the oil or petrol layer reaches the critical level, the device generates an alarm signal. By installing the optional WGA-R6 probe above the constant level, you can also monitor the maximum level. The control unit monitors the probes for short circuits or line interruptions.

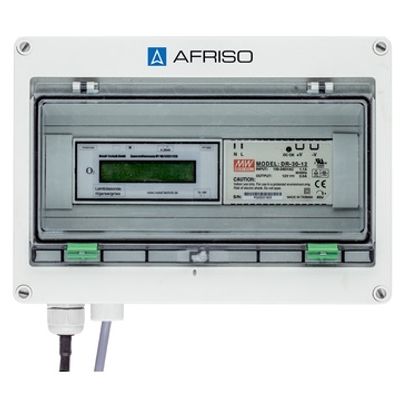

Compact electronic oxygen measuring probe for stationary installation. Consisting of a 100 mm long zirconium dioxide measuring probe with an adjustable screw fitting and control electronics. Inline oxygen measurement without gas treatment. A dynamic O2 probe based on ZrO2 is used to acquire the measured values. The probe is calibrated in atmospheric air. No reference gases are required. Due to the compact dimensions, the probe can be easily installed in the flue gas pipe. The probe provides fast and precise measurement results. Oxystem 250 is suitable for flue gas temperatures of up to 300 °C.

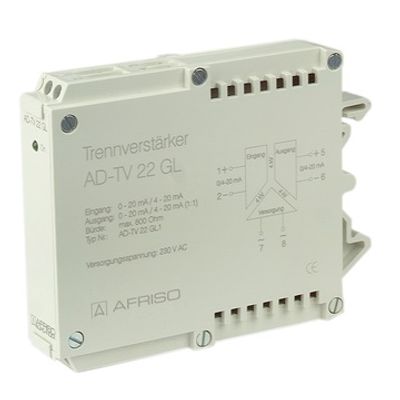

Input and output are galvanically isolated with a high degree of isolation. The integrated high-efficiency electronic power supply unit helps to avoid overheating and allows for high output loads. The extremely narrow design results in a high packing factor.

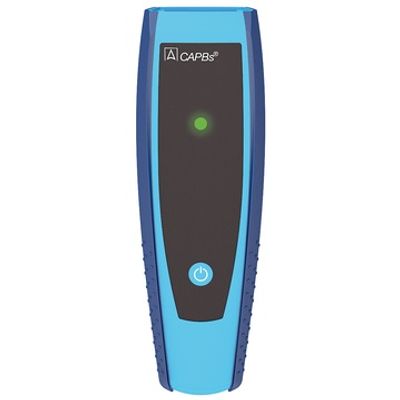

Universal base handle for all CAPBs® sensor modules. Ergonomic handle with three magnets and battery compartment at the rear of the housing. Multi-colour LED and multi-purpose key on the front. With integrated device for audible signals and Bluetooth® module.

Cost-effective entry-level set. In compact case. Digital documentation and operation via app. The world's smallest, fully-featured HVAC all-rounder with TFT colour display. Flue gas analysis, pressure measurement (draft) and (differential) temperature measurement with a single instrument. CO ambient measurement with two freely adjustable alarm thresholds. Fully-fledged temperature measurement program, differential temperatures (e.g. flow/return) can also be determined. Hold function: Display shows the measured value for a given period of time while the measurement keeps running in the background. Measurement programs and measured values can be freely edited. Display reverse function: TFT display can be rotated by 180° for easy reading and excellent working conditions at the point of measurement. Zoom mode for entire display, "Single-value display". Memory function with up to 100 measurement logs. CAPBs®-enabled.
