AGI Glassplant products

Reaction

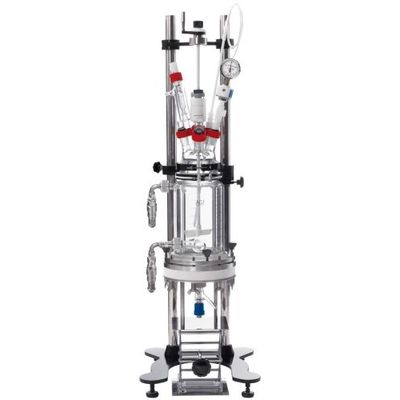

AGI - Benchtop Reactor

AGI Benchtop Reactor is built for top performance at lab-scale and has been engineered to provide a great user experience.

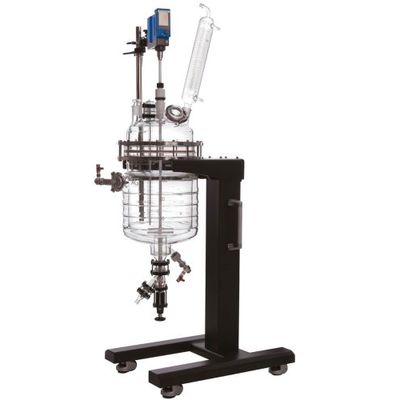

AGI - Pilot Plant Reactor System

The AGI Pilot Plant Reactor is engineered for efficient and reliable small-batch production, well-suited for kilo lab and pilot plant applications. These floor-standing reactors feature single and double-jacketed vessels ranging from 10 L to 30 L, mounted on a sturdy, mobile stand with castors for easy transportation. For larger production needs, custom reactors up to 400 L are available. Key technical features include the innovative Ring Baffle technology and optimized wall thickness, ensuring superb thermal exchange. The reactor operates across a wide temperature range from -90 °C to +230 °C and boasts high thermal shock resistance (110°C for double wall, 60°C for triple wall). The system offers multiple functionalities including reaction under vacuum or atmospheric pressure, precise temperature monitoring and regulation, dosing of solids and liquids, agitation, and reflux condensation. Additionally, the reactors can be customized with various glass lids, unique accessories, condensers, reflux dividers, and feed vessels to meet specific processing requirements.

AGI - Pilot Plant Reactor PLUS - High Performance Reactor for Process Development and Pilot Scale Production

The AGI Pilot Plant Reactor PLUS is engineered to meet the rigorous demands of process development, kilo, and pilot scale production. Known for its excellent performance, this reactor features Ring Baffle technology and optimized vessel geometry for enhanced operation. Its flexible stand design ensures swift and easy access, minimizing setup times and maximizing productivity. Available in 10, 20, and 30-liter capacities, it caters to diverse processing requirements. The reactor is equipped with a thermal jacket for precise temperature control (-90 °C to +230 °C), ensuring high thermal shock resistance. Its design accommodates various lid accessories crucial for process development and supports operations ranging from vacuum to atmospheric pressure. The system is ideal for reflux condensation, distillation, and inert atmospheric reactions, among other applications. The robust, mobile stand and user-friendly handling add to its practicality in batch production environments, making it a comprehensive solution for chemical processing industries.

Filtration

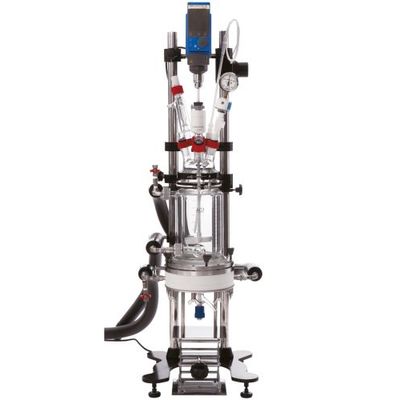

AGI - Benchtop Filter Reactor

AGI Benchtop Filter Reactor is a compact system that integrates the functionality of a reactor and a filter in one system at a benchtop scale. The result is a seamless workflow for crystallisation processes. Our Benchtop Filter Reactor performs synthesis of crystalline products and subsequent filtration/washing cycles and its full jacket design allows reactions to happen efficiently due to excellent thermal transfer.

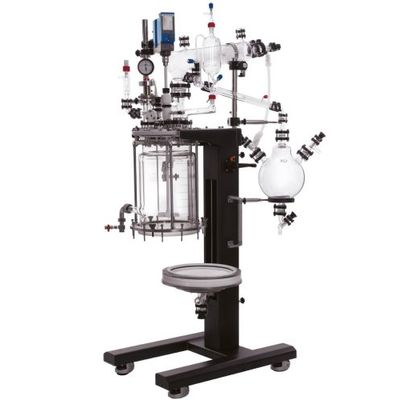

AGI - Pilot Plant Filter Reactor Plus - Integrated Crystallisation and Filtration System

The AGI Pilot Plant Filter Reactor Plus is engineered to support demanding crystallisation processes by integrating both reactor and filtration functionalities within one system, allowing for complete crystallisation, filtration, product washing, and drying without needing to open the vessel. This design is particularly advantageous for pilot scale production, kilo labs, and process development due to its capacity to handle large quantities of crystalline products safely and efficiently. The system includes a rotating mechanism for easy product collection and contamination-free material processing. Key features include reaction and filtration in a single vessel, a lever mechanism for easy filter access, and safeguards to prevent product loss. The reactor can be scaled up to 100 L and operates within a broad temperature range of -90℃ to +200℃. It features a full jacket for optimal thermal transfer and is mounted on a support structure with castors for mobility. Additional functionalities offered include vacuum and atmospheric reactions, temperature and pressure monitoring, reflux condensation, distillation, inert processing, agitation, and customizable options to meet specific requirements.

AGI - Benchtop Nutsche Filter for Pressurized Solid-Liquid Separation

The AGI Benchtop Nutsche Filter is specifically engineered for solid-liquid separation tasks. With the ability to apply pressures of up to 2 barG, this filter accelerates filtration processes and reduces solvent evaporation even under higher temperatures. The manual agitation system, using a flat blade, provides gentle mixing, dissolution, cake smoothing, and facilitates the formation of free-flowing powder. It ensures minimal product loss and prevents cross-contamination due to its all-glass construction. The system's design allows for continuous visibility of the process and includes a removable filter and flush valve for easy cleaning. The jacketed version extends its capability to regulate temperature efficiently from -90℃ to +200℃. Integrated features such as pressure relief, shield for safety, and a vessel tilt function for easy product recovery enhance its usability. Optional motorized mixing is available for cases requiring automated operations. This filter offers robust technical specifications, streamlining operations across various applications.

AGI - Filter Dryer for Solid-Liquid Separation and Drying

The AGI Filter Dryer is engineered to enhance the process of solid-liquid separation and product drying, catering to various industrial applications. The system is capable of operating under pressures up to 2 barG, expediting filtration, and minimizing solvent evaporation at elevated temperatures. Its design includes an integrated filter dryer, providing additional heat for faster product drying. A manual agitation feature with a flat blade facilitates gentle mixing of slurries, dissolution, cake smoothing, and formation of free-flowing powders. The benchtop Nutsche Filter offers a secure and efficient method for solid-liquid separation and drying, ensuring high containment and material safety. Key features include pressurized filtration up to 2 barG, an all-glass design for process transparency, removable filters and valves for straightforward cleaning, and a wide operating temperature range of -90℃ to +200℃. Additionally, the unit includes integrated pressure relief and shielding for safety, jacketed versions for precise temperature regulation, and tilt functionality for easy product recovery.

Concentration

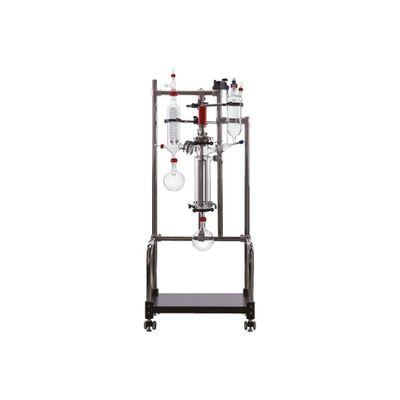

AGI - Thin Film Evaporator

AGI Thin Film Evaporator (also known as Wiped Film Evaporator) is ideal for separating volatile components from heat sensitive, viscous and fouling chemical mixtures. Thin film, under low pressure, reduces the boiling point of chemical components, as well as the hydrostatic pressure, resulting in the evaporation of volatile fraction at low temperatures. The PTFE wipers form a thin film on the evaporation column and push the film downwards with every rotation. This causes the heat-sensitive components to experience short residence time on the evaporation area and minimal thermal degradation.

Industrial Evaporation

AGI - Rotary Evaporator

AGI Rotary Evaporator is made for manufacturing applications. With a robust construction, heavy duty materials and superior design, it fulfils the round-the-clock process demands of industrial operation. Rotary Evaporator is ideal for continuous operation in industrial environments; with capacities ranging from 20 L to 200 L, it can take on many demanding evaporation processes. 200 L is the world`s largest size of rotary evaporator.

Distillation

AGI - Distillation Systems

AGI offers distillation systems crafted to meet your exact process requirements. Our team of highly experienced engineers can create bespoke designs specifically for your process. The process of making the perfect distillation system starts with a detailed discussion about the feed material, purity requirement, and many other important factors. We offer distillation systems ranging from lab scale to production scale and use columns that meet industrial standards.
