Low pressure off-centre flat fan venturi nozzle made from hard-wearing plastic POM.In connection with AirMix 110° flat fan nozzles AirMix OC off-centre nozzles can be used as end nozzles for a sharp-edged differentation of the spraying rods. Therefore instead of an einer AirMix 110° an AirMix OC is used as end nozzle each time.To reach an optimum lateral distribution we recommend two variants :For comparison: Overspraying at the field edge when used as a end nozzle.

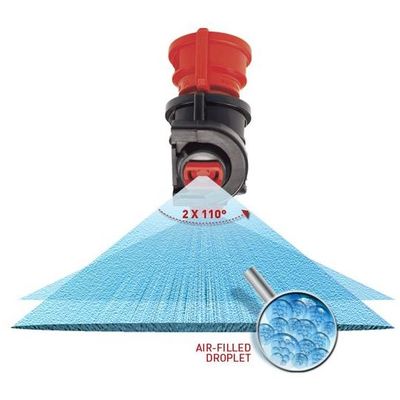

Asymmetric high pressure double flat fan venturi nozzle made from ceramic (coated with POM).. Asymmetric orientation of the two spray patterns, specially designed for higher application speeds. Compact design. High drift reduction maintaining excellent coverage. Perfect for fungicide, insecticide and post-emergence treatments. Best performance working pressure: 4-8 bar (60-120 psi). Ceramic parts made from strong, high quality pink ceramic. Easy assembling and disassembling, even with gloves, no tools required. Improved coverage of vertical and angular targets.

Asymmetric double flat fan venturi nozzle made from hard-wearing plastic POM or semi-ceramic.. Asymmetric spray angle for higher application speed. Optimum speed at 6 to 12 km/h. With its short 10° angle forward no spraying on the machine. Compact design in the standard bayonet system with single detachable distribution mouthpiece. High drift-reduction and application of vertical and averted parts of the plants. Droplet sizes can be widely changed with change of pressure. Size of the mouthpiece corresponds with venturi size. Optimum pressure: 2-4 bar. Variable applicable allround nozzle.

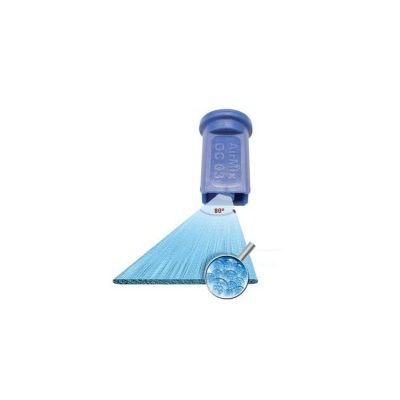

Low pressure off-centre flat fan venturi nozzle made from hard-wearing plastic POM. Two-piece design, no tools required for opening. Air cleaning system, no plugging of air entrance. High drift reduction. Wide application range. Same flow rate as corresponding flat fan nozzle. Suitable as end nozzle on booms in combination with AirMix flat fan nozzles. Fits in caps with spanner width of 8 mm, commonly used on most sprayers.

Off-centre flat fan venturi nozzle made from ceramic (coated with POM). High drift reduction and wear resistance. Compact designand easy to clean like all other AVI nozzles. Coated in a rugged plastic body made from POM. Corresponding nozzle to AVI 110° Flat Fan when used as boom end nozzle. Recommended for herbicide band spraying in orchards and vineyards. Fits in caps with spanner width of 11 mm.

Hollow cone nozzle made from ceramic (coated with POM). The standard nozzle for applications in orchards or vineyards. Highest accuracy and wear resistance. Two-piece design, easy disassembly for cleaning. Constant fine droplet size (not recommended for drift reduced spraying). Flow rate is not corresponding to ISO chart, see ATR flow rates chart below.

Universal flat fan nozzle made from hard-wearing plastic POM. Flow rates in accordance with ISO standards. High accuracy due to minimising variability in production. Wide pressure range and application rate. High durability. Fits in caps with spanner width of 8 mm, commonly used on most sprayers.

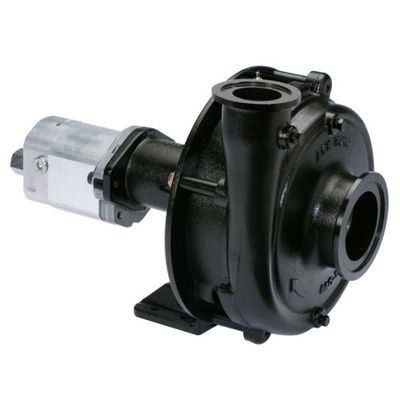

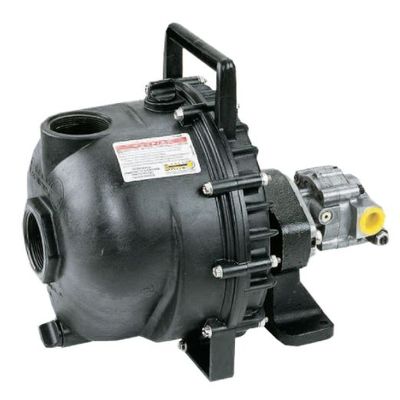

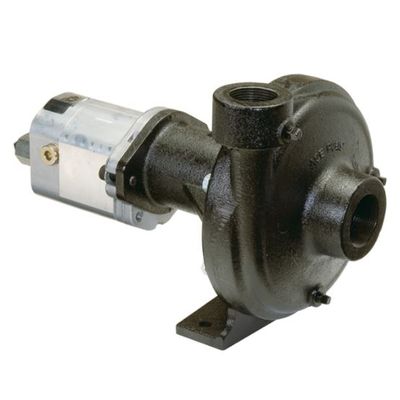

Rugged, self priming centrifugal pumps with hydraulic motor for filling or transfer of large tank volumes.

Characteristics: Special wet sealing prevents pump damage when running dry. Sealing chamber filled with cooling fluid. Double spacer disc for best pump performance. Suction/discharge side with flange type quick connection.

Characteristics: Special wet sealing prevents pump damage when running dry. Sealing chamber filled with cooling fluid. Double spacer disc for best pump performance. Suction/discharge side with flange type quick connection.
