Air Flow Pvt. Ltd. products

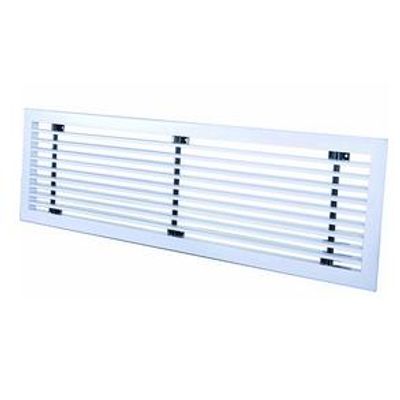

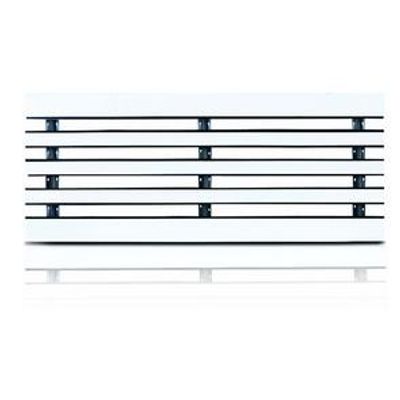

MAPRO make Linear Grilles with fixed bar having 0°, 15° & 30° deflection to suit every interior with fixed and removable core. Angle / Round edged flanges available in 20, 25 and 30mm widths with fixed or removable core, are designed to suit aesthetic look of the interior. Wide range of possible combinations suitable for side wall, ceiling suspended or false floor grilles.

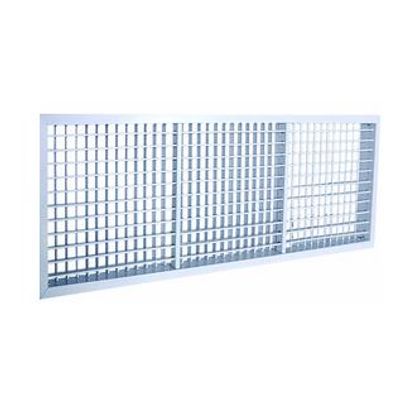

MAPRO make Adjustable Double / Single Louver Grille is a optimum solution for discreet size supply / return air grille, these grille are with option to regulate the air flow direction by adjusting the blades at desired angle individually. The grille are available in one / two layers of adjustable blades set at fixed pitch with tear drop design blades resulting in adjustment of deflection angle while offering minimum resistance, pressure drop, noise level to the passing air.

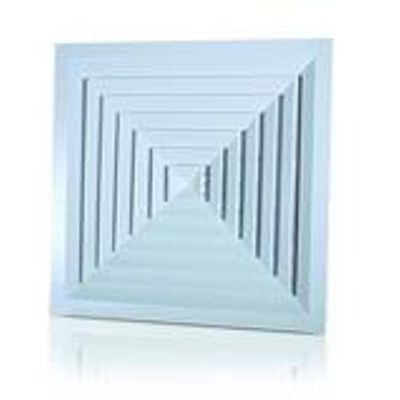

MAPRO Square/Rectangular multi cone ceiling diffuser is a versatile product for air distribution are ideal for most commercial projects requiring efficient air distribution and also to maintain various ceiling patterns. Constructed from high-grade aluminium and different air pattern control core designs for horizontal diffusion. Both square and rectangular frames with removable core are available for various applications, easy installation.

MAPRO make continuous slot diffuser (MDS) is ideally suited to variable volume applications due to its excellent low flow rate air diffusion characteristics and high air handling capacity. This is a highly established product in terms of aerodynamic and acoustic performance. For the requirement of air distribution through ceiling of continuous/discreet size section, these diffusers are suitable with the scope of air pattern adjustment by changing blade/vane opening. Provision is made to control the airflow rate by providing Hit & Miss Damper in each slot, if required.

MAPRO make Helical Diffuser (MHD Series) is a variant of high induction swirl diffuser, with individually adjustable radial blades for optimal diffusion, ensuring an instant mixture of primary and secondary air. The exceptional swirl discharge helps in obtaining a strong induction which makes them extremely suitable for various HVAC applications.  If required the Diffuser is supplied with a plenum box with the option of side or top inlet connection.

AIR FLOW AFCC-SI Series Silicone Coated – Flexible Duct Connector is the ideal solution to isolate vibrations caused by fans & air handling units connected to ducts, it is always suggested to install a  flexible duct connector joint between the outlet of these devices and the airduct.

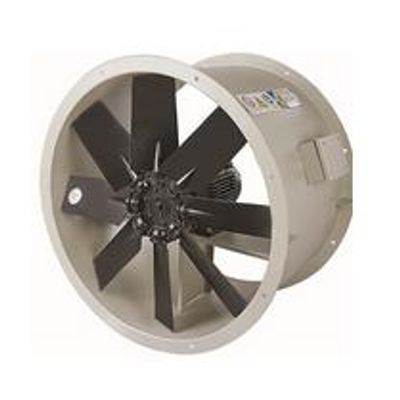

Our direct-driven high-performance Axial Flow Fan, designed for the efficient ventilation system and are available from 315 mm dia to 2000 mm dia that covers a wide range of volumetric flow. Additionally, the blade pitch is field adjustable to accommodate system changes. The casing design and construction are well suited for indoor or outdoor applications and can be easily installed in ducted or non- ducted systems. Fans and blades are designed to reduce operating cost with improved efficiency design offer inherently lower sound levels than other axial fans.

AIR FLOW High-Efficiency Vane Axial Fan Series is the perfect combination of high volume, compact size, durability and superior quality fans required for air ventilation in a commercial or industrial segment.

AIR FLOW range of AFJF-R series Induction Jet Fans offer space & energy saving product is a ideal solution for low ceiling height basement to induce air movement in covered car parking.
