Air Flow Technology products

The progressive dense two-stage 15g media is manufactured from continuous strands of glass fibers. This 2″ white/green filter features a progressive density construction that meets the needs of the widest variety of finishing applications. The efficiency rating is 98.95%.

The progressively dense white/yellow, heavy-duty two-stage 22g media is 50% heavier than the 15g counterpart. 22g is manufactured from continuous strands of glass fibers with a 2.5″ loading area backed with 100% fiberglass scrim backing.

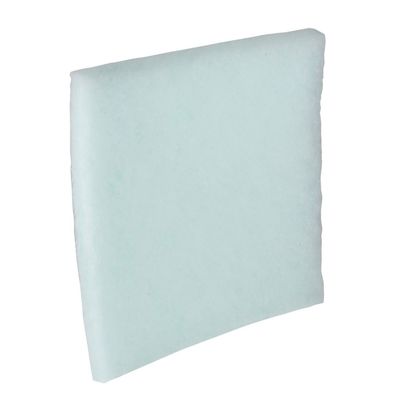

AFT’s Series 1″ E75 polyester media utilizes the latest in recycled fiber technology to yield a highly efficient and long-lasting economical filter options for mid-high volume finishing operations. E75 has high particle removal efficiency (99%+), excellent holding capacity and longevity. Low initial pressure drop (0.06″ w.c.).

The 2″ Series E12 is a heavier, denser version of the popular recycled E75 overspray collector. With almost 40% more weight and holding capacity, the E12 is designed for high volume applications requiring high efficiency and maximum longevity. High particle removal efficiency (99%+). Ultimate holding capacity and longevity.

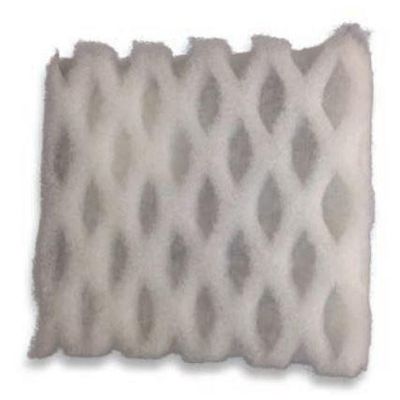

Paint Pockets® unique design holds up to five times more overspray than other filters, enabling you to cut your filter changes by up to 80%. The three-dimensional “pockets” embedded in the front face of Paint Pockets® more than double its surface area, allowing the arrestor to capture and hold very large quantities of overspray. Paint Pockets® white is available in both pads and rolls. 99.84% efficiency rating.

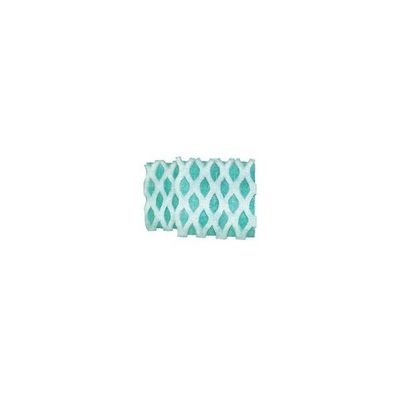

Paint Pockets® unique design holds up to five times more overspray than other filters, enabling you to cut your filter changes by up to 80%. The three-dimensional “pockets” embedded in the front face of Paint Pockets® more than double its surface area, allowing the arrestor to capture and hold very large quantities of overspray. Paint Pockets® green is available in both pads and rolls. 99.43% efficiency rating.

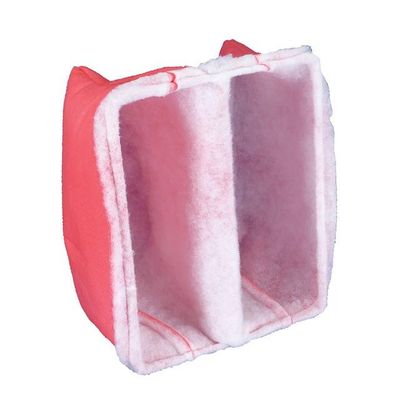

The Series CC50 extended surface cube filter is AFT’s economical solution for paint overspray collection applications. Made from 100% polyester, the dual density, single ply media is heat-sealed to a heavy gauge metal support frame and forms a self seal when installed.

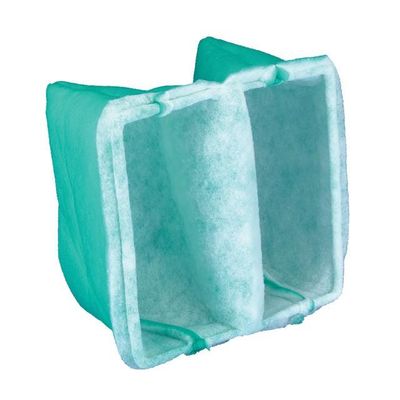

The Series CC99 extended surface cube filter is AFT’s high capacity and economical solution for paint overspray collection applications. Made from 100% polyester, the media consists of a 1″ coarse layer to facilitate overspray collection and retention, combined with a second layer designed to trap finer paint particles. It is heat-sealed to a heavy gauge metal support frame and forms a seal when installed.

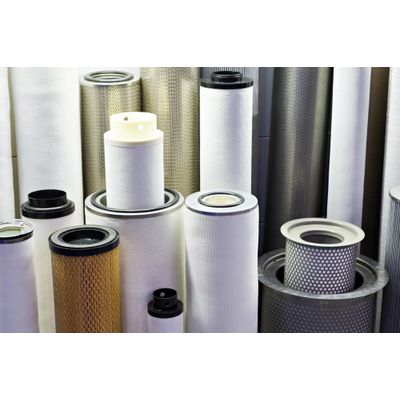

Offers high efficiency, durability and performance appropriate for a wide variety of dust applications, including blast booths, carbon black, pharmaceutical, powder-coating and dry chemical processing. Pleat spacing can be widened for applications where larger or irregular shaped dust particles enter the collector, such as fiberglass and composite grinding and tobacco processing.

Multi-Cell Final 95% Efficiency: Air Flow Technology’s multi-cell filter is one of the most popular final filters in use throughout the USA by OEM manufacturers. This filter incorporates a metal outer screen to protect and hold the media pleats together. This 95% efficient filter is fabricated with pleated media packs made of water-resistant all-glass micro-fiber media encased in polypropylene housings.
