Air Plants Dust Extraction Ltd products

We offer a wide range of robust high-quality dust collectors which employ bag and cartridge technologies for use in a variety of industries. This enables us to offer a dust collector with filter media that is best suited for the application and characteristics of the dust it is required to handle.

Part our ‘ECO Range’ of modular filters, Modulair Dust Units are suitable for medium to large-sized applications and can be installed externally or internally in larger buildings. The units are ideally suited for workplaces operating a single shift per day. The filters have a unique non-blocking filter sleeve arrangement together with careful airflow modelling.

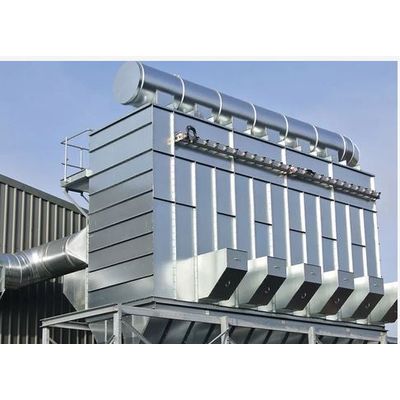

Part of our Advanced Filter Technology (AFT) range of filters, the Cyclofilter employs an automatic reverse jet filter cleaning system. Reverse jet cleaning enables continuous “online” cleaning to ensure effective extraction for workplaces operating up to 24 hours a day. This is achieved by maintaining a constant pressure drop across the filters media, using Air Plants Dust Extraction Ltd intelligent clean-on demand pulse system. The filter units are suitable for medium to large-sized applications and can be installed either externally or internally.

Part of our “AFT range” of filters, the Multiair Dust Collector employs an automatic reverse jet filter cleaning system. Reverse jet cleaning enables continuous “online” cleaning to ensure effective extraction for workplaces operating up to 24 hours a day, by maintaining a near-constant pressure drop across the filters, all being controlled by our intelligent clean-on demand pulse system. The filter units are suitable for medium to large-sized applications and can be installed externally or internally in larger buildings.

The Jet Air Mini reverse jet cartridge dust collector is compact in design ensuring valuable production space to be maximised. It achieves this by using 120mm diameter conical cartridge filters which offer large filter areas compared with dust collectors using bag filters. This makes the unit highly versatile that enables it, with appropriate filter media, suitable for a variety of applications in various industries. The unit can be located indoors or outdoors. If handling an explosive dust, it can be supplied with anti-static features and explosion protection in compliance with the ATEX regulations.

The Jet Air Core reverse jet cartridge dust collector is suitable for systems with medium to large air volume requirements. The unit is compact in design ensuring valuable production space to be maximised. It achieves this by using 200mm diameter cartridge filters which, when compared with a bag filter, offer larger filter areas. This makes the unit highly versatile enabling it, with appropriate filter media, to be suitable for a variety of applications in various industries. The unit can be located indoors or outdoors. If handling an explosive dust, it can be supplied with anti-static features and explosion protection in compliance with the ATEX regulations.

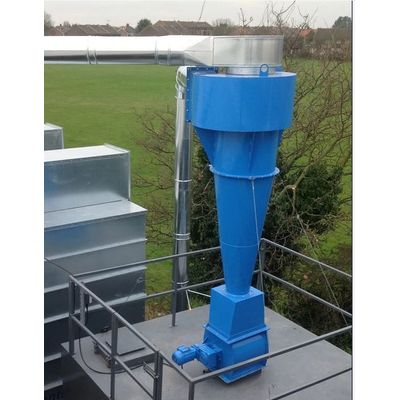

The pre-separator cyclone is used to reduce the partial loading of the polluting elements present in the air, to limit the dust load arriving at the filter. The separator cyclone is able to remove a high percentage of the incoming dust by exploiting the centrifugal force to which the dispersed particles are subjected. Our cyclones are sturdy, economical, easy to install and transport and require very little maintenance.

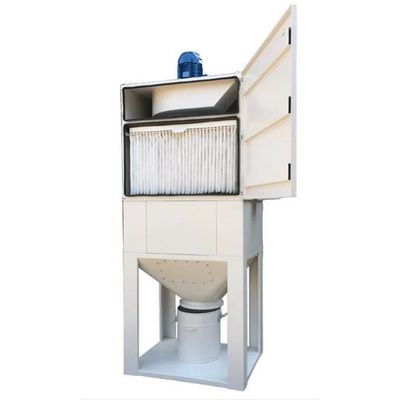

The CEF is a robust completely self-contained dust collector, with a high-efficiency multi-sleeve bag filter element, integral fan, acoustic attenuation, side-mounted shaker cleaning motor and automatic cleaning controller.

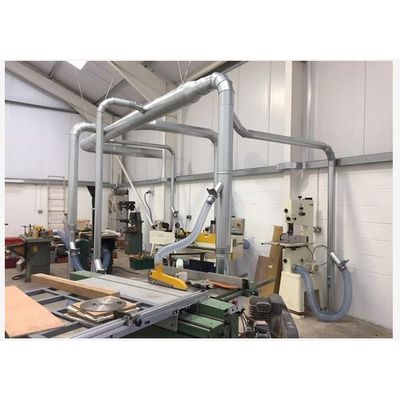

These dust extraction units can be sited internally or externally and offer excellent dust control solutions for the woodworking and automotive industry. Air Plants dust units are ideal for small industrial, school and college workshops that require dust control of sanders, band saws, circular saws, CNC routers and linishers, etc. The dust units will provide effective dust control for small volumes of dust types such as softwood, hardwood, MDF, chipboard and plastics.

Air Plants portable fume extractors are perfect for the safe capture and filtration of airborne contaminants. An ideal solution for low cost and low maintenance fume extraction, these portable fume extractors can be moved easily around the workshop to service different applications. Available with single or double fume extraction arms, our portable fume extractors have an automatic pulse system to maintain the efficiency and condition of the extractor. Air Plants portable extractors provide an excellent solution for welding fume extraction.
