Aircon Systems products

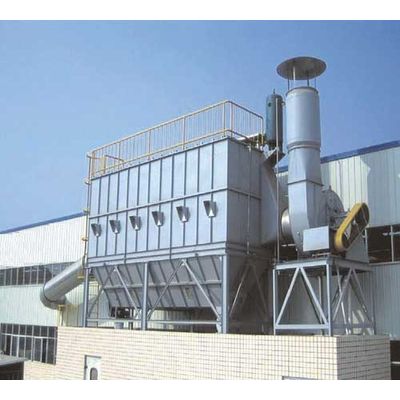

The Offline Bag Filters contains 4 to 6 bag filter compartments. Each compartment is similar to online bag filter. When Differential pressure reaches above 135 mm wg Dusty Air / Gas flow through a particular compartment is stopped temporarily when the pulse cleaning of the bags is to be done. The dust dislodged from bags settles falls in the hoppers because of absence of Air/gas movement in the bag filter compartment. At the same time the remaining compartments are in Filtering cycle. Each compartment is cleaned one by one till Differential pressure reaches 60 mmwg. Dusty air flow through individual compartments is controlled through a pneumatic actuated Slide gate Valve. We recommend offline bag filter for above 25,000 CMH.

In this type of Bag filters, bags are cleaned row by row, even when the dust laden gas is filtered. The sequence of Filter cleaning is controlled automatically by a sequence control Timer; It gives signal to solenoid operated pulse valves which direct the High pressure air pulse to Filter Bags.

Aircon Systems Incorporated Multi Hoppers in on-line type Bag filters. Easy to transport the same to site through Trucks & container. The Polluted gas enters the common inlet plenum, from there it flows to all modules; and undergoes filtration as in the regular unit. Similarly, the cleaned gases travel back to the common outlet plenum from the individual clean air plenums, and then flow out through the outlet duct to the ID fan.

Cement industries needs large bag filter handling air volume, conventional bag filters have been found to be inadequate to handle large gas flows in excess of 4,00,000 m3/hr, due to severe limitations like high gas flow per bag, high velocity of gases through bag filter, higher pressure drop across filters, high space requirement due to bigger size filters and high compressed air consumption.

With rich industry experience, we are manufacturing, exporting and supplying a wide gamut of Fine Filters, bag filter. Our offered filters unite the coarse filtration of a cyclone with the high efficiency of pulse jet bag filter. The raw material used in the fabrication of these filters is duly tested on various parameters to assure the quality of the end product. Our offered filters are highly efficient to keep environment hygiene. Owing to their quality attributes such as easy installation, longer service life, less maintenance and compact size, these have gained huge demand in the market.

Air con system offers complete range of Venturi Scrubbers. With more than 24 years of experience in air pollution control. Air con systems offer, venturi cum packed bed scrubber, For almost all applications in all kinds of industries, especially for removal of sub-micron particulates with very high efficiency. Our experience spans a design base of over 300 Venturi Scrubber systems.

We provide precisionly engineered FRP Scrubbers that are fabricated using high grade raw material and latest techniques. The offered scrubbers have the capacity to handle almost all types of fumes. These are widely used in commercial complexes, industrial sectors, etc. Apart from this, these are highly appreciated among clients for their optimum efficiency, durability, corrosion resistance, enhanced performance and longer service life. Available in various standard forms, these scrubbers can also customize in accordance with various specifications of clients.

We are counted amongst one of the leading manufacturers, exporters and suppliers of a wide range of Packed Bed Scrubbers / Fume Scrubbers / Wet Scrubbers. Allow changes in turbulent layer depth and pressure drop for optimal efficiency, the offered scrubbers can continuously scrub sticky particulate and toxic gases without clogging. These are manufactured using the superior quality raw material and sophisticated technology. In addition to this, these are highly demanded in the market due to their longer functionality, excellent efficiency, corrosion resistance and durable finish standards.

We are also engaged in providing Centralized Industrial Dust Collection Systems to our clients at the market leading price. We have the expertise to provide project sizes from 650 CFM to 5 Million CFM.The raw material used is acquired from reputed vendors of the industry. Our engineers use the latest technology to give you the best products every time and give you maximum satisfaction.

We are offering precision engineered industrial Centralized Industrial Dust Collection systems. Our range is ideal for collecting wood dust, chips and shavings at the point of origin. It is designed based on the principle of central vacuum systems, our dust collection systems has fixed motor creates suction, which is distributed through the space via a network of rigid ducting and flexible hoses to the point of use. Industrial Dust collectors filter dust from polluted air and discharge clean air into environment. Dust collectors are efficient in protecting employees and society from exposure to pollution and recover products from dust filled air.
