AIRLANCO products

Our high-pressure Centrifugal Fans are ideal for installations involving temporary wet grain holding, deep storage, and facilities where high static pressures are required. Direct drive, rugged steel housings, and non-overloading, vibration-proof fan wheels enhance performance and durability. Low power consumption combined with generous air delivery result in low-cost, efficient aeration even under the most demanding conditions.

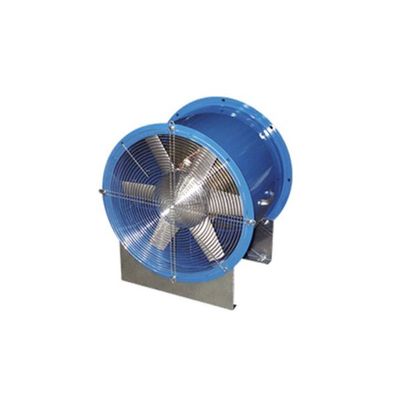

AIRLANCO Axial Fans are engineered for efficient, high-volume air delivery where storage depth is low to medium. Axial airfoil propellers are cast of shatter-resistant aluminum alloy. They are statically and dynamically balanced and secured to the motor shaft with a self-locking mechanism. Housings are constructed of heavy-gauge steel to exacting tolerances that allow easy replacement of parts during service.

Our Universal Tapered Roof Exhausters are designed to fit any sloped-roof or round metal bins without the need for special adapters. The removable top cover allows you to position and bolt the units in place before cutting holes and permits easy service access.They come in 24-inch, 2hp models rated at 10,200 cfm.

LS Fans are normally set up for 1,000 to 15,000 CFM. This material handling fan can handle heavy particulate loading with no problems. These fans can be used for negative airlift conveying systems. To build your AIRLANCO Fan, our engineers evaluate your facility’s ventilation or dust collection needs and the volume of air that must be moved or cleaned to achieve your desired comfort or air quality level. Their experience ensures that your AIRLANCO Fans will have the right application-sensitive features and meet your requirements.

AIRLANCO RLP Low-Pressure Reverse Air Filters are engineered for efficient operation in demanding installations with high airflow and high dust loads. Mechanical simplicity makes these weathertight filters mechanically superior. They’re more reliable, more durable, more economical, and maintain lower, more consistent emission levels than competing units. Our reverse air design utilitzes an on-board direct-drive fan that minimizes energy consumption and maintenance costs by eliminating the need for compressed air or external blowers. The chain-driven 1-rpm cleaning arm eliminates the need for special gearing and timing devices and cleans every filter bag with every revolution to maintain peak filtration efficiency. Years of use by major processors in diverse industries attest to their oustanding long-term performance.

Proven in the field since 1998. Spun bond polyester media, others available upon request. 190°F Continuous operating temperature. Open pleat structure with wide pleat spacing to limit pleat pinching and bridging of product. Low differential pressure drop across media. High filtration efficiencies. Closed cell neoprene seals. Inner core structure for strength.

AIRLANCO`s Compact Horizontal Cartridge (CHC) Filter is much smaller than traditional bag houses. The compact design is ideal where space is a concern. The CHC standard housing is rated for 20` W.C. All controls are factory mounted and tested on every unit prior to shipment to ensure premium quality product. Many different media types and sizes are available to fit your custom applications.

AIRLANCO Receivers are available in AVR Side Bag Removal or ART Top Bag Removal models. Both are robustly built for high pressure/vacuum operation and feature tangential inlets, hopper segments designed specifically to handle your bulk materials, and compressed-air pulse jet cleaning of filter media.

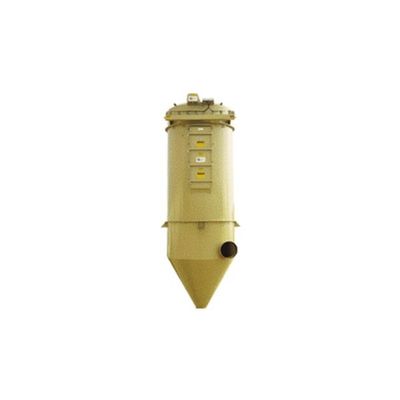

AVS Bin Vents utilize pulse jet action to keep pneumatic systems running clean and in compliance with local air quality regulations. They filter out the product dust and debris captured in conveying air before it is vented from storage bins.
