Airwave Electronics Ltd. products

The Model 4001 System Controllers provide concentration display, alarm activation, and power supply functions for field mounted gas sensing devices. The system controller works in conjunction with any 4 – 20 mA Sensing Head for monitoring a wide variety of toxic and combustible gases. The two user adjustable alarm levels for each channel permits you to set the activation points to conform with your particular application or local regulations. The front panel contains a large, highly visible, LED display as well as individual alarm indicators for each channel and level. You are given a comprehensive report on the gas monitoring and instrument status.

The Protec II (SAS) is a `Stand Alone` remote sensing system for toxic gases. it is intended to be placed in the area where leaks of these potentially dangerous gases are likely to occur. The protec II sensors measures the levels of these gases, activates alarms based on the concentration, and can transmit a signal to the appropriate control device.

The AE2420 hydrocarbon analyzer is a compact instrument used for monitoring ambient concentrations of total hydrocarbons. Its simple and dependable design permits safe operation for air monitoring requirements. No other unit can match its sensitivity, response speed and reliability. This instrument far exceeds present requirements and is the logical investment for the more demanding needs of the future. Proven detection methods and modern technology have provided the model 2420 HC analyzer with fast, accurate response times and minimum maintenance requirements. The model 2420 is ideal in multiple channel systems where speed and reliability are critical.

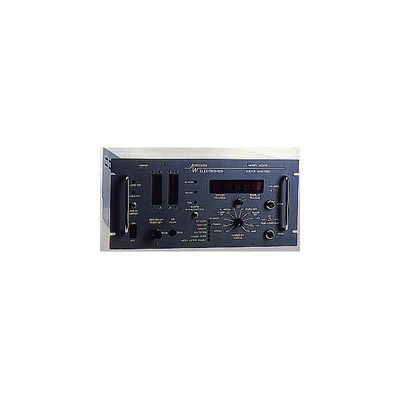

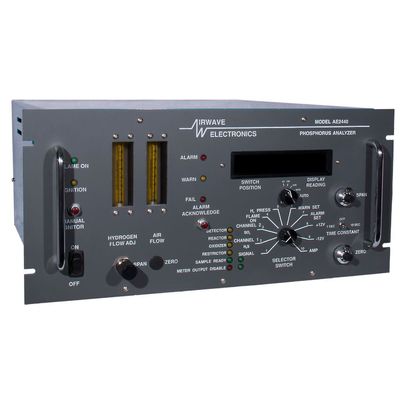

The AE2430/2440 HYFED hydrogen flame emission detector is a direct reading continuous ambient monitor that uses a flame photometric detector (FPD). The FPD provides fast response and is the most sensitive method for determining low concentrations of all sulfur or phosphorus/phosphine species in air. The AE2430/2440 is one in a series of versatile Sulfur/Phosphorus analyzers available in various configurations for the measurement of Total Sulfur, Phosphene, Hydrogen Sulfide, Sulfur Dioxide and Sulfates.

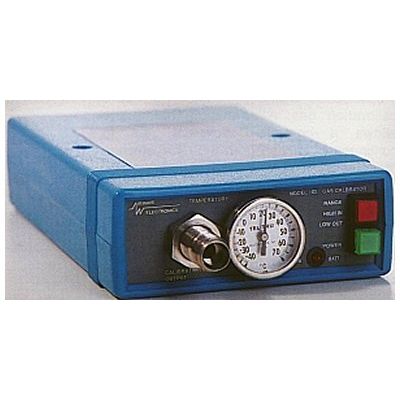

The model AE100 and the AE102 are simple one step operation portable gas calibrators that are a continuous source of gas at a specific concentration and flow rate. The AE100 offers single concentration calibrations while the AE102 offers dual concentrations. Small and light weight, the model AE100 and the AE102 are self contained in a rugged case making them ideal for field calibrations while maintaining instrumentation shop standards. The AE100/AE102 portable gas calibrators are designed to accommodate all permeation tubes manufactured by Airwave. Providing a very low temperature coefficient, the models AE100/AE102 eliminate the need for temperature controlling devices. Both versatile and economical instruments, the model AE100 and AE102 are capable of performing most calibrations requirements.
