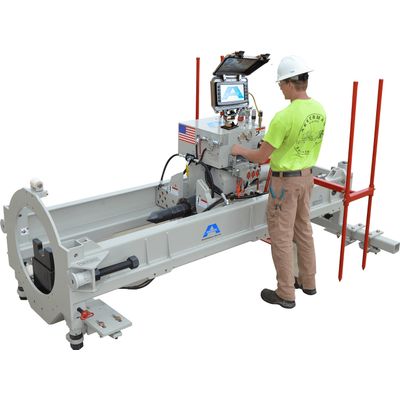

The 4800 Series GBM system is designed as an all-in-one system excelling in all pilot tube installation methods including auger boring, pilot tube microtunneling, and rock boring.

The GBM 240A is the industry-leading pilot tube system for accurately guiding horizontal auger bore equipment. With hundreds of systems being used globally, industry leaders rely on the accuracy and versatility that the 240A adds to their trenchless toolbox.

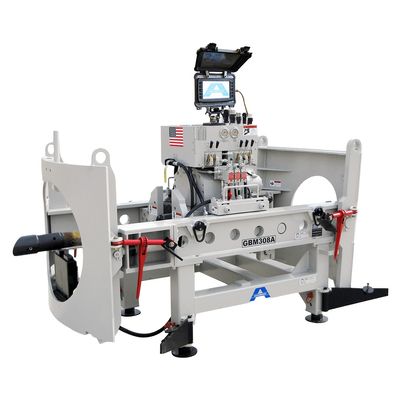

The 308A and 339A GBM systems are ideal pilot tube systems for the direct installation of sewer and water infrastructure when space is limited. These latching style frames are designed for pilot tube microtunneling while decreasing social, environmental, and economic costs associated with other installation methods.

For over two decades, Akkerman has revolutionized the pilot tube guidance system technology. Current capabilities have far surpassed industry expectations just a few short years ago with innovative procedures and technology that have allowed installations exceeding 600-lf with pinpoint accuracy. Using a theodolite with advanced remote-controlled optics set to the desired line and grade, the GBM operator visually tracks the position of the steering head of the pilot tube in real-time. The rugged monitor and controls are purpose-built specifically for pilot tube installation to avoid any contact with the theodolite once set-up. For contractors that require electronic data logging throughout the alignment, an optional data logging package can be installed on your GBM system to record navigation metrics as well as machine parameters along the alignment.

The Control Container is the control center for all microtunneling functions. It houses the control console, motor control centers for slurry pumps, MTBM drive motor and the bulkhead panel for electrical and communications connections. The Remote Control Container provides hydraulic power to the microtunneling jacking frame and for auxiliary functions.
