AL-KO THERM GMBH products

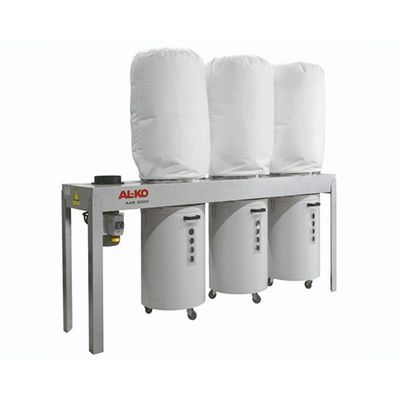

AL-KO's MOBIL and AAS series of raw air dust extractors are designed to facilitate efficient extraction of dust and particles generated during various industrial processes. The MOBIL series features a mobile chassis with castors, enabling easy relocation within a workspace, while the AAS series comes with a stable frame for added sturdiness. The system operates by utilizing a fan on the raw gas side to transport extracted material to a separating unit, where larger particles and swarf are directed into the collection system. The remaining fine dust is filtered using dust class 'L' filter bags, ensuring only clean air is returned to the environment. These extractors can cater to a wide array of applications, demonstrating versatility through a range of options and variants. Adaptable and durable, the AL-KO MOBIL and AAS dust extractors represent a pragmatic choice for diverse industrial settings needing reliable dust extraction solutions.

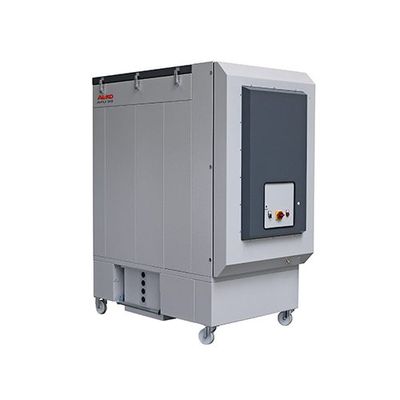

The AL-KO POWER UNIT series consists of mobile clean air dust extractors that are engineered for use within both trade and industrial sectors. These units are designed to be versatile, capable of connecting to individual machines, machining centers, or multiple extraction points via piping systems. They are available in eight different sizes, offering motor power ranging from 1.1 to 15 kW and can manage air flow rates up to 10,000 m³/h. A standout feature is their high-efficiency filter technology coupled with a class 'M' dust filtration system that effectively separates fine dust. Additionally, the AL-KO OPTI JET filter cleaning system, employing compressed air jets, ensures consistent extraction performance by clearing dust accumulation on the filters during operation. Compact yet powerful, these units provide a quiet yet robust solution for dust extraction, while maintaining a small operational footprint.

The AL-KO CLEAN UNIT F is a high-performance mobile welding fume filter designed for efficient extraction of fumes in various welding environments, including manual, automated, and robotic stations. This unit features a robust extraction and separation capacity, coupled with an advanced filter cleaning system controlled by differential pressure. The system employs extraction arms and hoods to capture fumes at the source, which are then directed through pipelines to the unit's suction nozzles. In a pre-separator chamber, coarse particles are removed, while filter cartridges of dust class 'M' tackle finer dust particles. Venturi tubes enhance the cleaning efficiency, ensuring consistent suction and prolonged filter lifespan. The separated dust accumulates in a conveniently movable container, and the clean air is recirculated within the workspace. A volume flow monitor provides real-time monitoring, alerting operators to any deviation from the required suction capacity.
