Al Shirawi Equipment Co LLC (ASECO) products

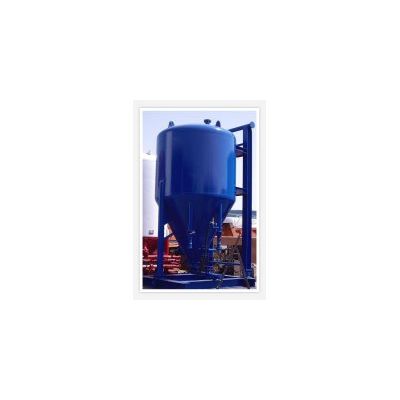

The pressure silo is designed to store cement, bentonite, barite, etc... The fill, vent and discharge lines are easily accessible. The pressure relief valve provides safe unloading. The interior is designed to allow dry material to flow out under air pressure. The silo is equipped with 3` aeration couplin gwith air pad/air jet system as per requirement. Manholes are located at bottom for easy access. Vertical / Horizontal skid.

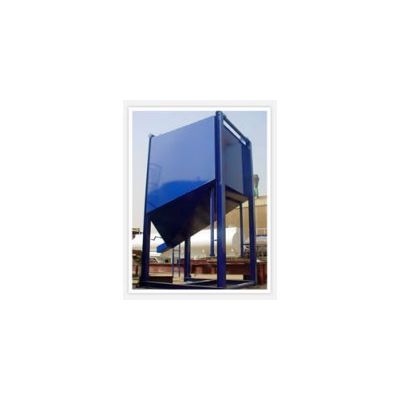

Square Tank: Capacity 1000 CuFt. All steel welded construction from SA 36 eqvt steel plates. Lift frame. Gravity discharge. With DNV 2.7-1 certification for frame if required. Provision for mounting compression load cell. Fabricated gate valve with rack & pnion. External grit blasted to SA 2.5 & epoxy paint system.

Standard Design :  ASME VIII - Heavy Duty Skid - Relief Value Set Pressure - Fill Line OD - Discharge Line OD - Vent Line OD - Air Pad - Skid Type.

Standard Design :  ASME VIII - Heavy Duty Skid - Relief Value Set Pressure - Fill Line OD - Discharge Line OD - Vent Line OD - Air Pad - Skid Type.

Access :  Manholes are located at the top. The operations are controlled from the control panel. Standard Design : Hydraulic cooling system - Hydraulic powered - Off-Road trailer mounted. Options: Special design and equipment on request.

Access :  Manholes are located at the top. The operations are controlled from the control panel. Standard Design : 2x50bbl / 2x60bbl / 2x75bbl / 2x100bbl hyraulic design. Options: Special design and equipment on request.

The surge tank is designed to receive cement, bentonite, baryte, from bulk plant or trailer. The fill and vent line are located on the side for easy acc- cess. A vent line is available for use with a dust collector. The interior is designed to allow dry material to flow out under air pressure.

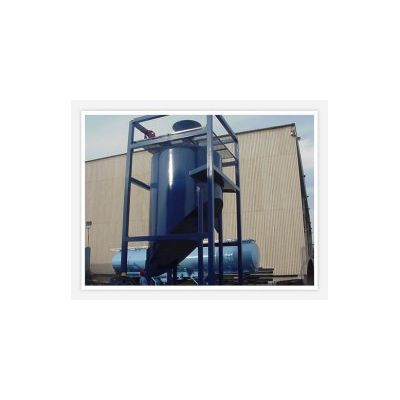

The sand silo is designed to store sand, from bulk plant. The fill line is located on the side for easy access. A chute with pneumatic or manual sliding gate valve for gravity discharge is available. The interior is designed to allow dry material to flow out under gravitational force.

Standard Design:  As per vessel code ASME SEC VIII - Includes Relief Value - Fill Line - Discharge Line - Vent Line - Air Pad for aeration - Off-road Trailer chassis - Surge Tank (optional) - Air Compressor. Options: Single or Twin wheels. Special design and equipment on  request.
