Albany Engineering Company Ltd. products

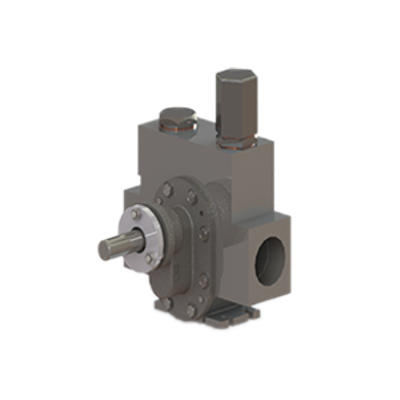

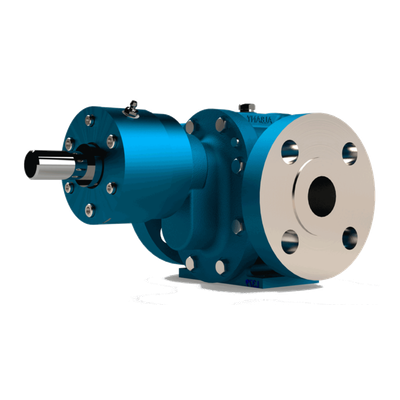

The GA range is Albany`s general purpose gear pump, the origins of which can be traced back to 1901 when the company first started. It is capable of handling the widest variety of liquids, including extremely viscous liquids. These gear pumps offer a durable, robust design ensuring ease of use and maintenance. With a large choice of pump sizes, materials and sealing options to suit all applications, the GA range can be adapted to suit any customer or OEM application. Bespoke mountings and additional components and pipework allow simplified fitment to the final application. Use CEFG pumps for 3.1 certification.

The GC range refers to compressor and turbine pumps, specifically designed to be used by OEMs in those industries. Fully capable, with a high system pressure layout, these C style pumps offer extra rigidity around the drive shaft and particular internal options. All of our pumps can be customised to include parts that help the customer`s process or aid fitting into an existing framework, mountings and pipework. Specialised paint finishes can also be catered for. All these options, and more, can be discussed with our knowledgeable team upon specification. Radial and axial location bearing options are provided as well as vertical and horizontal formats. NOTE: For API certified pump requirements, use the GG range pumps.

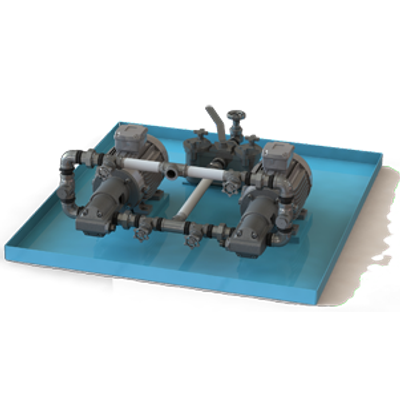

The GD range provides a ready made baseplate mounted twin pump system, with a main pump and a standby. When ordered, the product arrives on a baseplate ready to go with twin pumps, filters and suitable plumbing.

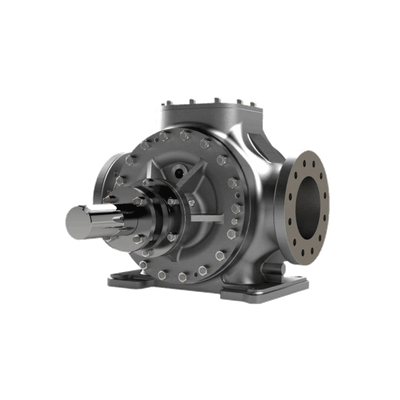

Albany`s standard design with internally flushed DIN mechanical seals and external bearings for liquids with non-lubricating properties. It has an excellent suction lift capability of up to 7 metres. With single piece screw shafts for mechanical integrity and low flex. Available with sump heating options on some sizes. Also with or without an internal relief valve to comply with API 676. This style has been designed as a modern replacement for the original Stothert & Pitt range.

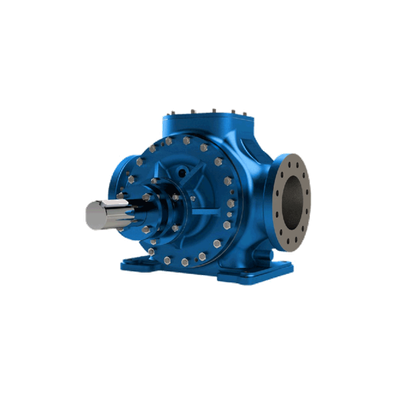

The SB Albany twin screw pump is similar to the Albany SA, but allows for a greater choice of sealing arrangements including API676 types and higher temperature and pressure operation. Again, with various heating options and internal relief valve choice, the range comes with a flexible sealing concept and complete heating jacket options. The range is ideal for more abrasive applications.

The SC style is only suitable for non-abrasive lubricating liquids. The bearings and timing gears are lubricated by the pumped liquid. It has only one mechanical seal making it a lower cost option with clean lubricating liquids. Heating and relief valve options are available.

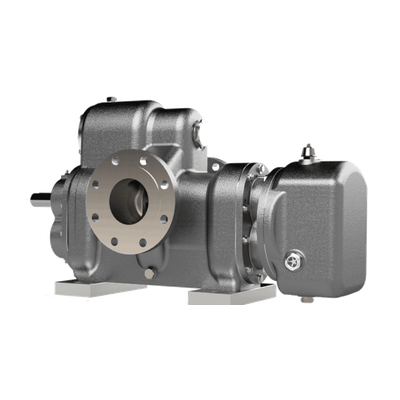

The LA range of 3:4 rotor pumps is typically used for higher viscosity fluids running at reduced speed through gearboxes. Whilst these pumps are traditionally used in the sugar industry, they have many other applications. These pumps have a replaceable liner, with all other components designed for maximum efficiency and total life cost. Offering an economical solution to such pumping requirements, the LA pumps work on a 'faster running' concept that gives better flow rates proportionally than alternative positive displacement pumps. The pumps can be cleaned via an inspection cover. Internal or external bearing options are available for this range.

The LB range of 7:8 rotor pumps is typically used for pumping chocolate at high pressure. These pumps have low NPSH advantages and are extremely slow running, making them ideal for the specific requirements of chocolate and similar materials. Internal or external bearing options are available for this range.

Lobe Pumps are smooth running elegant pumps. They are quiet and the fluid path through an Albany lobe pump makes them ideal for shear sensitive fluids. Their design allows high outlet pressures and long service lives. They are well suited to high viscosity fluids and either used with 4,6 or 8 pole induction motors or geared motors for the slower running speeds.

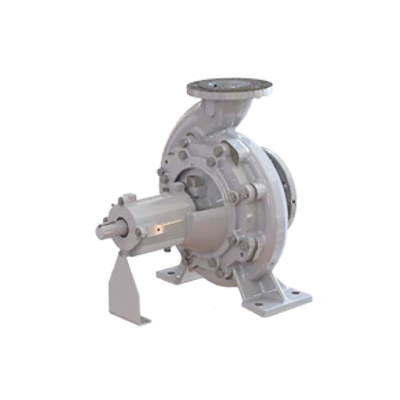

Our C range of Centrifugal Pumps can be supplied as new pumps or as replacements in a variety of differing materials. Albany Pumps manufacture our own supply of long-established designs, first created by Stothert and Pitt. We manufacture Centrifugal Pumps to accommodate the heavy-duty requirements of applications, including foods and other types of cargo. Available in either horizontal or vertical mounted options with a bearing bracket, these pumps can be easily removed for maintenance without disturbing driver, suction or delivery pipework.
