Alexzandra Scale Co. products

Some Attractive Features: The machine is highly sensitive.  Because of the precision workmanship. The machine is light in weight and easily portable. The machine is mounted on four wheels on continues axles. The machine is duco painted to give durable streamlined finish. The box is casted one piece and designed to give maximum strength and stability for the working at two levers inside.

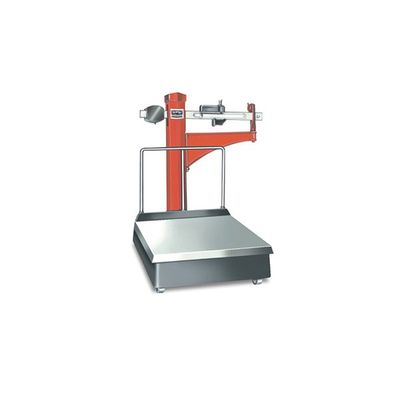

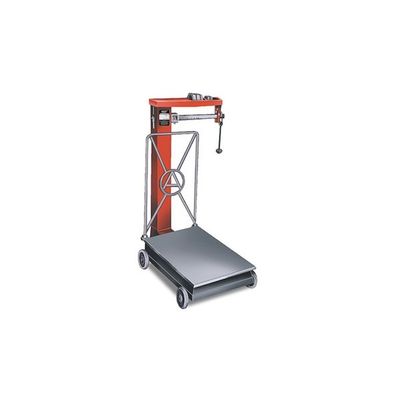

Design and Constructional Features: "ASCO" Steelyard type heavy duty Portable Plateform Machine Model No 192 has special design for exceptional strength of bottom work to bear unexpected shocks and worst handling. These machines are tested rigorously such a way that one can safely depend on its accuracy. durability and quality of components. The platform levers stool pillar. bracket wheels, frame work are made from graded casting. The platform is bolted with solid steel backrail to protect pillar and steelyard. Kinfeedges and bearings are made of special alloy steels for better machining and proper heat treating. The machine fully confirms IS-1435-1960 and comply with the rules and regulations laid down by W & M dept.

"ASCO" Self Indicating (Fully automatic) Dial Scale Model No. 121 is a popular series for spontaneous automatic weight indication and used everywhere in industry, commerce research institution and trade. The scale confirms to lSI Specification No. IS-1435 and W & MAds and Rules. Shadow-less line to line indication of the pointer on black and white equally spaced marking of dial chart. Double Pendulum  mechanism  housed  in dust and moisture proof  dial head  ensure life-long & fatigue  free indication.

Optional Facilities (at extra charges): Solar power operated scale.

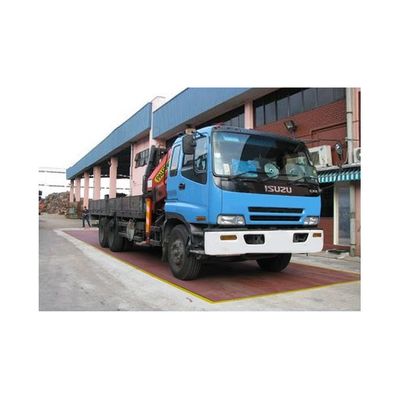

This type of weighbridge is most suitable for places with limited space e.g. non-hilly areas where the construction of pit is not a costly affair. Since the platform is in level with the ground, vehicles can approach the weighbridge from any direction. Most public weighbridges prefer this design.

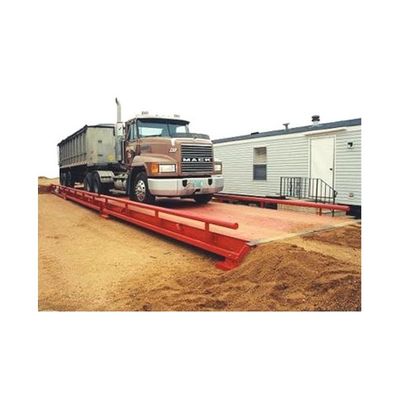

This type of weighbridge / Truck scale is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weighbridge only from two directions where the ramps are provided. This type of weighbridge requires more space. In Pitless Type Weighbridge RCC ramp work must be required at least 3 meters for both sides for easy movement of vehicle.

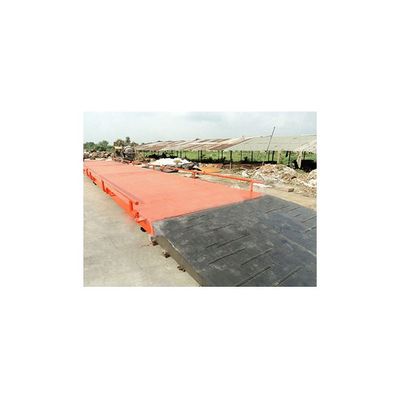

Civil Work : If you opt for our mobile weigh bridge with inbuilt steel foundation plates you don’t require any civil foundation work. For the erection of the weighbridge only a well leveled hard surface is required. The savings accrued because of this are: a) Savings in the cost of civil foundation works is approx. Rs.1,50,000/- in Small Size b) Savings in time to the tune of 20 days @ Rs.2500/- per day. This savings is recurring for every relocation of the weighbridge.
