The PowerCut 10x™ is a powerful, manual bench-top cut-off saw designed for low to high volume applications. It accommodates blades ranging from 8" to 10" in diameter, allowing a wide variety of sample shapes and sizes up to 3.75" (95 mm) thick to be sectioned. A side port allows the cutting of longer samples such as bar stock. The PowerCut 10x™ has been redesigned with updated features such as an external wash-down hose & nozzle; blade guard with improved coolant manifold; improved drain flow through a larger opening; torsion-style motor return spring; new LED lighting and a taller cover with improved edge profile to keep water/coolant from dripping out.

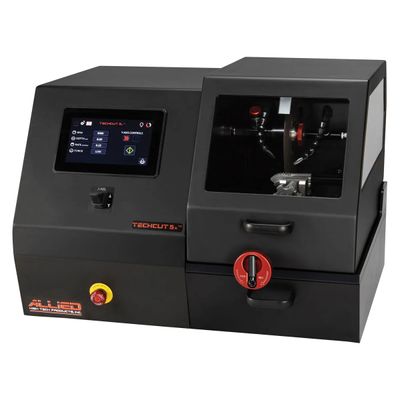

The TechCut 5x™ precision high-speed saw is a versatile, programmable machine designed to cut a wide variety and size of materials. It automatically sections materials at high speeds, increasing sample throughput. The PLC-based system controls sample feed rate, distance and force. Closed-loop monitoring of the blade and table optimizes cutting performance and minimizes blade breakage by automatically adjusting the feed rate when variations in sample material or thickness are detected. When sectioning is complete, the table automatically retracts the sample to the home position and stops blade rotation and coolant flow. The unique fixturing system allows for easy changes between the T-Slot Table and the X-Axis Tables. Both tables offer a variety of convenient table-specific fixture options.

The TechCut 4x™ is a precision low-speed saw excellent for cutting smaller, delicate samples that cannot tolerate increased heat caused by high-speed sectioning. A 3.5" color LCD touchscreen is used to control all functions with an intuitive interface optimized for efficiency. The pivoting cutting arm has adjustable weights to apply or counterbalance downward force to the sample during sectioning. Cutting fluid is drawn from the reservoir by the blade to cool the sample. With a 3" to 6" blade range, samples up to 2" thick can be sectioned.

The TrimSaw 2x™ is a manual-feed, variable speed table saw that is ideal for cutting printed circuit boards, composite/ceramic substrates, electronic devices and other nonmetals. Cutting fluid is drawn from the reservoir by the rotating blade, applied to the sample during sectioning, then channeled back to the reservoir through holes in the platform. When using a 6-inch diameter blade, the rim extends 1.6” (41 mm) above the cutting platform, allowing up to 1.5” (38 mm) thick samples to be sectioned. The adjustable rip-fence is made of stainless steel and allows measured, guided sectioning through the blade. Optional miter-guide and multipurpose fixtures slide in the table slot for more precise cutting requirements or when handheld sectioning cannot be tolerated.

The Newly Updated TechPress 3x™ electro-hydraulic automatic mounting press is used to encapsulate samples for metallographic preparation.
