Alltek Marine Electronics Corp. products

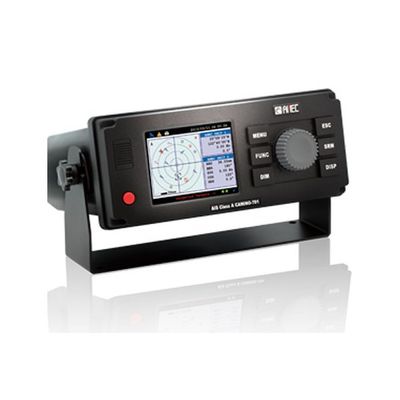

The AMEC CAMINO-701 is an AIS Class A transponder for both SOLAS and inland vessels. Fully certified to latest international standards, the transponder is ready for worldwide deployment. The transponder is designed to provide high performance and great reliability – a result of our software defined radio technology expertise and years long field experience.  Its user-friendly interface enables an intuitive handling of complex features AIS class A delivers. The compact housing makes the transponder the smallest one in the world with integrated colour LED display. It comprehensive NMEA2000 support makes the integration with existing bridge systems easier than ever.

The Widelink P200 is an globally certified AIS chart plotter. The application running on P200 is the next milestone of AMEC´s software technology. It features a powerful charting engine with intuitive user interface and advanced navigation functions for enhanced safety and eased voyage. P200´s hardware with its IP67 waterproof and ergonomic interface ensures a reliable operation in rough marine environment.

CAMINO-108 is AMEC´s new generation class B AIS transponder. It allows exchange of AIS messages with other AIS equipped vessels within VHF range – the essential way to improve collision avoidance on the water. CAMINO-108 is designed to provide high performance and great reliability, resulting from our software defined radio technology expertise and years long field experience.

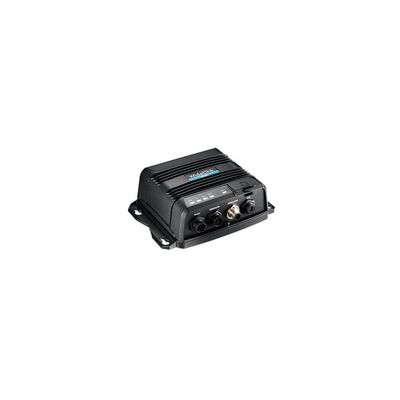

WideLink B600 is the world’s first SO-TDMA class B certified to IEC 62287-1 Ed.2.0: 2017, the next evolution of AIS technology. Its 5W transmit power, higher reporting rate and professional grade time division management make B600 an overall more advanced product compared to AIS class B based on CSTDMA scheme. The high performance AIS class B transponder is equipped with 72-channel high speed GNSS receiver. It supports GPS and GLONASS by default and optional BeiDou and Galileo. B600 with GPS antenna GA-22 (optional) can be the ideal GPS source for your NMEA 2000 network or NMEA 0183 chart plotter.

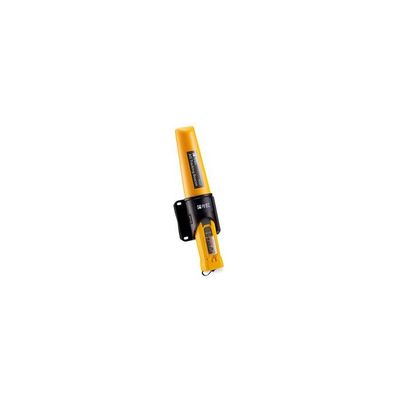

The AMEC AIS Tracking Beacon (TB560) is a simplified “AIS Class B” device that offers efficient and cost effective vessel tracking solution. With this device installed onboard, the port authorities and or vessel owners can locate, identify, and/or monitor vessels within the AIS VHF transmission range. The device is activated when it´s mounted into a dedicated bracket. The unit’s temper proof feature intelligently prevents unauthorized transferring between vessels. TB560 uses rechargeable battery and can operate up to five (5) working days. The device has built-in VHF and GPS antennas and can transmit SRM in case of emergency.

The AMEC CYPHO-150 (any CYPHO-150 model) is an AIS receiver. It receives AIS navigation data from AIS-equipped vessels nearby and the data is utilized to improve navigation safety. CYPHO-150 is designed to inter-operate with AIS Class A or Class B transponders, or any other AIS station operating on the AIS VHF data link. CYPHO-150 is built with two parallel AIS receivers in one box. The default frequencies are standard marine VHF AIS channels, i.e. 161.975 and 162.025 MHz. Having CYPHO-150 AIS receiver on board, not only can you monitor the status of the vessels in the surrounding area, but also receive the dynamic information (position, speed, SOG, etc.), static information (ship name, MMSI, call sign, etc.), and voyage related information (cargo type, destination, etc.) from any vessels nearby that are equipped with
AIS transponders.

AMEC MANDO-301/-303 is an AIS AtoN (Aids to Navigation) equipment that provides accurate and real time information to nearby vessels and shore stations. MANDO-301 is a type 1, and MANDO-303 is a type 3 model. The MANDO series prevents collisions by transmitting position of a fix or a floating AtoN. It has the ability to transmit meteorological and hydrological data with proper additional sensors installed.

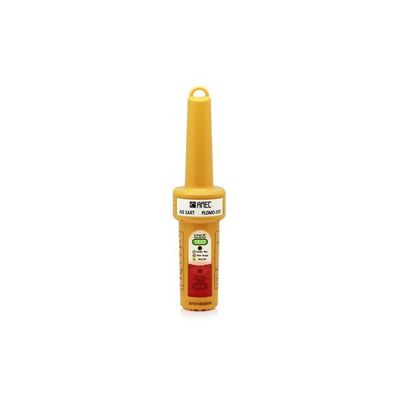

AMEC AIS SART PLOMO-500 complies with IEC 61097-14 specification. It is designed to be an alternative of Radar SART. AMEC PLOMO-500 can transmit GPS positions, Unique ID, COG and SOG in every minute once activated. It allows the rescue team to locate the survivors rapidly through the broadcasted AIS information and, ultimately, gives the lives a better chance to survive.

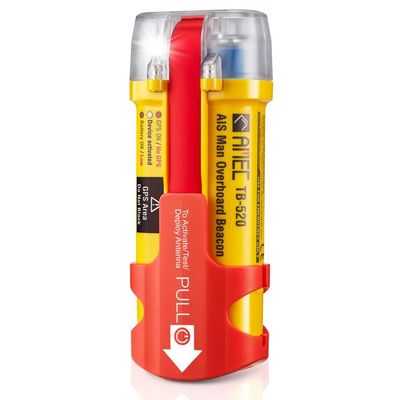

The AMEC TB-520 is a Man Overboard Beacon using AIS technology. It greatly enhances the chance of MOB retrieval by alerting nearby vessels equipped with AIS. In emergency situations, the beacon can be activated either automatically by water sensor or manually and send out alert messages, GPS position information and a unique ID. Its high performance GPS receiver enables the beacon quickly obtaining GPS coordinates. Built with state-of-the-art technology, TB-520 is small and lightweight, easy to use and totally reliable to keep your journey safe and sound.

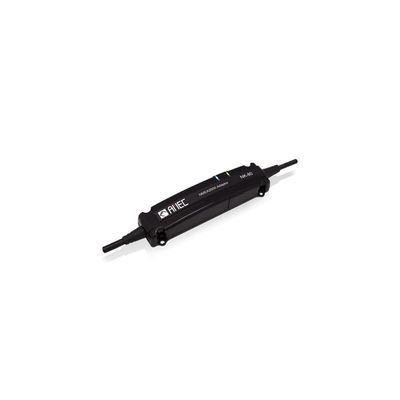

The NMEA 2000 transmits data through Controller Area Network (CAN bus). It simplifies the connection and shares information among different devices by using a single trunk cable. Compared with NMEA 0183 in “RS422” interface, NMEA 2000 has better transmission reliability and shares data easily in a network. NK-80 is a gateway between NMEA 0183 electronics devices and NMEA 2000 device/network. NK-80 allows users to connect NMEA 2000 network with their existing NMEA 0183 devices.
