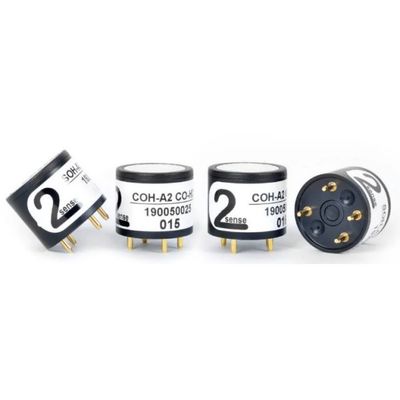

Save space and save cost with our 2Sense family of dual gas sensors, in the A-series 20mm size. With a patented design and best response, these dual sensors offer the required performance with obvious advantages.

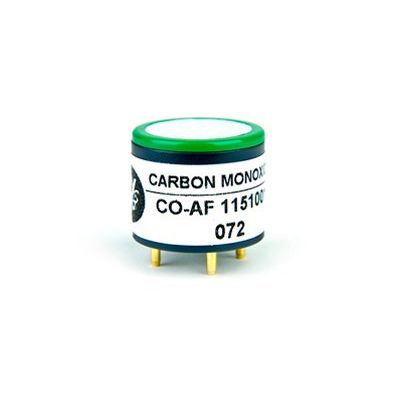

Carbon monoxide (CO) is a particularly dangerous toxic gas, not only because it has no colour, no taste and no odour but because it is common in populated areas as a result of the burning of fossil fuels in vehicles and heating systems. Despite advances in detection, CO, or ‘the silent killer’ as it is often referred to, is still responsible for tens of thousands of deaths each year. CO Sensors are available in a wide range of formats, making them suitable for use in fixed and portable detection instruments.

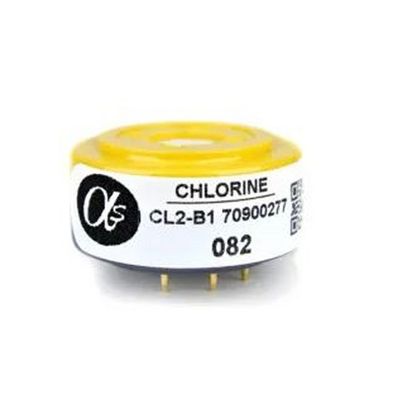

Exposure to the toxic gas Chlorine (Cl2) can lead to irritation of the nose, dryness in their throat and a cough in the short term. Exposure to higher volumes can cause far more series issues, from significant irritation, to bronchitis and death in some cases. With strong disinfectant properties and usage in a variety of manufacturing industries, Cl2 usage is increasing and continues to present a significant risk to life. Cl2 Sensors are available in a wide range of formats, making them suitable for use in fixed and portable detection instruments as well as other instruments and systems where monitoring of Cl2 is required.

Our Phosphine sensors cover all hydrides: Silane (SiH4), Diborane (B2H6), Germane (GeH4) and Phosphine (PH3) for the semiconductor industry. We have also introduced the PH3-BE sensor specifically for food storage where higher concentrations of Phosphine are encountered.

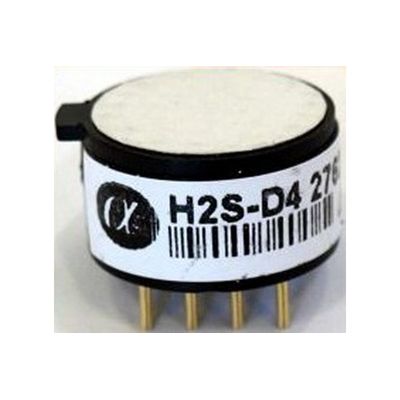

Sensitivity nA/ppm 20ppm H2 S 110 to 170. Response time t90 (s) from zero to 20ppm H2 S < 25. Zero current ppm equivalent in zero air < ±1. Resolution RMS noise (ppm equivalent) < 0.2. Range ppm H2. S limit of performance warranty 100. Linearity ppm error at full scale, linear at zero and 20ppm H2 S < ±6. Overgas limit maximum ppm for stable response to gas pulse 200.

Alphasense CO2 and Methane infrared sensors are supplied in the industry standard miniature (20mm diameter) gas sensor housing. Patented optics give the best signal to noise ratio of any 20mm diameter NDIR and universal linearisation constants allow easy implementation. The on-board temperature sensor allows for software compensation, including ideal gas law correction.

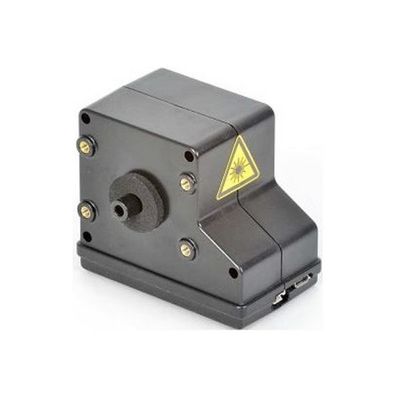

All dimensions in millimetres (± 0.15mm): PM 1, PM 2.5 and PM 10 (PM4.25 as an option). Measures up to 40 µm for pollen detection. Reduced power standby mode. Capability to measure up to 2,000 µg/m3. Onboard temperature and humidity sensor. SPI interface not included, order code 000-0SPI-00.

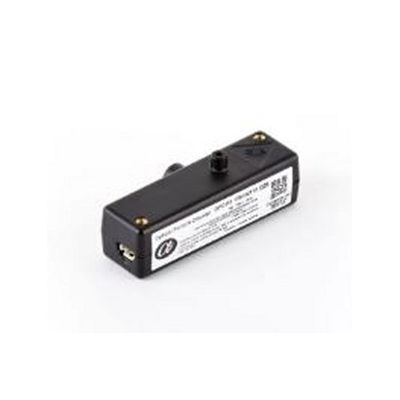

Reports PM1, PM2.5 PM10 (PM4.25 as an option)plus histograms. SPI connection for communication and firmware upgrades (SPI interface not includedorder code 000-0SPI-00). PC software supplied. Removable fan exit adaptor. Small size and low power consumption. Configurable to specific applications. Pins outs and comms protocol shared with OPC-R1. Improved detection of sub 0.5 µm particles. mproved EMC protection.
