Amafilter® products

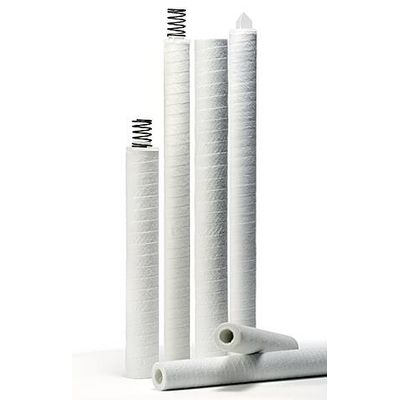

The unique engineered blend of multiple fibers sizes and shapes, including Tri-Lobal, are specifically layered in an advanced spiral construction. This process gives TRI-SHiELD superior dirt loading and high efficiency when compared to traditional depth filtration medias.

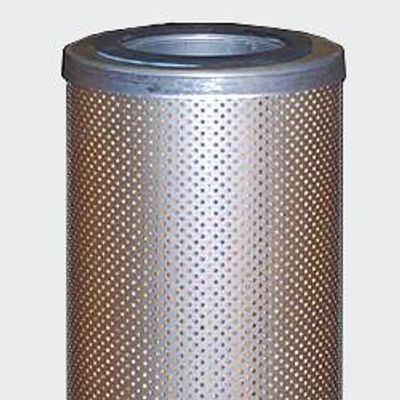

Phase-LOK T Series Phase Separator Elements are constructed of Teflon® coated stainless steel screen. Similar to the S Series, Phase-LOK T hydrophobic Teflon media repels water while allowing hydrocarbons to pass through.

Facet InterPhase SS Series Separator Elements are hydrophobic and repel water droplets that form while passing through the liquid/liquid coalescers. They perform exceptionally well in a broad range of liquid applications and are more efficient and cost less than Teflon coated separators. These elements provide excellent chemical compatibility and can also be cleaned and reused.

PhasePUR G Series Fiberglass Phase Coalescing Filter Elements are designed to coalesce two immiscible liquid phases within a stream to aid separation. These cartridges are also highly efficient particulate filters. These elements should always be protected by a pre-filter. In installations where no pre-filter exists, the JCP version uses an additional pleated section on the upstream side of the coalescer media to extend the effective operating life and protect the coalescing media.

HydroSorb Series Water Absorption Elements filter solid particulates and absorb water from petroleum based fluids. Solid particulates are removed by pleated cellulose filter media which is bonded with water absorbing hydrophilic media.

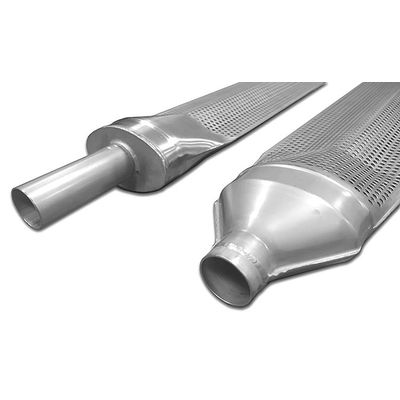

The Cricketfilter® filter element is based on a cricket bat design, giving it a unique shape which ensures a larger installed filtration area within the same vessel size in comparison to a traditional round candle shape filter element. Cleaning is vital in the filtration process and the Cricketfilter® element has been specially designed for maximising the drainability during regeneration, ensuring optimal cleanliness when Cleaning in Place (CIP) takes place. It’s unique design, when compared to the pressure leaf filter, provides direct filtration on to filter cloth at temperatures up to 150°C.

The Versis® is a fully automated system with double sided stainless steel pressure filter leaves. It is suitable for most applications.

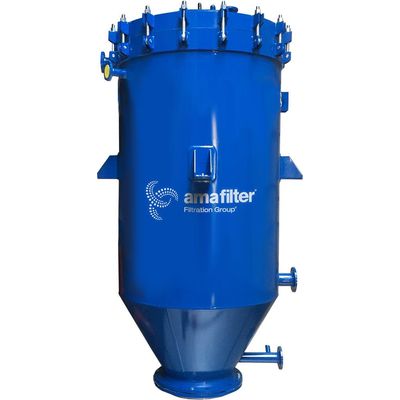

The MVDCD vertical pressure leaf filter system requires only a small footprint and provides easy access to the pressure filter leaves for removal of the cake.

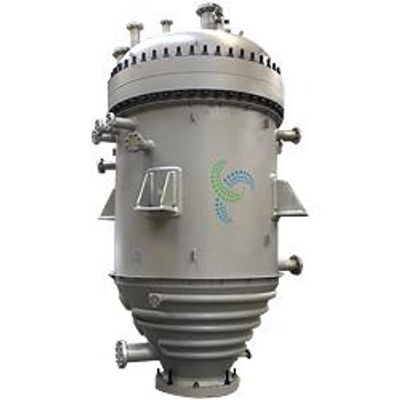

This system is ideal for use in filtration of catalyst particles. It filters with an 88 m2 filtration area and is designed to feature a half pipe heating jacket for controlling the temperature of its contents.

Our product range of Versis vertical pressure leaf and horizontal pressure leaf filters include an extensive range of filter leaves designs suited for various market sectors, including food and beverages, chemical and sulphur. The quality and condition of filter leaves can have a significant impact, not only on the productivity of the filtration system but also on its ability to achieve a high performance standard.
