American Filtration, Inc. products

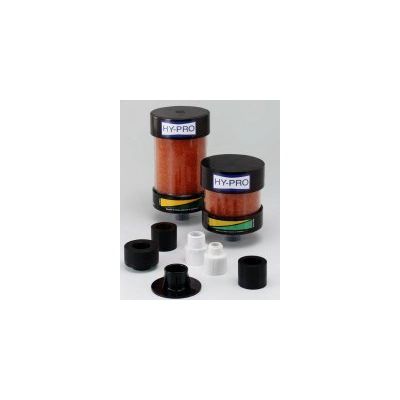

Fluid contamination is the root cause of most hydraulic system failures. Controlling contamination in the air a system breathes is critical. The synergy of Hy-Pro fluid filter elements and Hy-Dry desiccant breathers yields fluid clarification and a healthy hydraulic system.

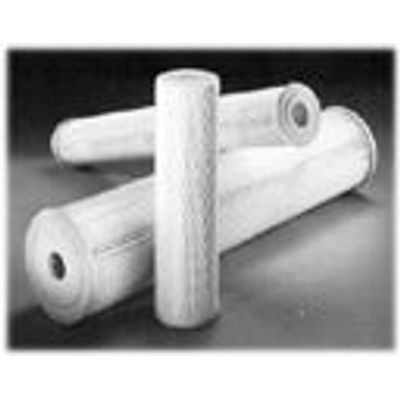

Pleated cellulose cartridges are designed for general water filtration purposes. They are economical, yet highly effective at reducing sediment particles down to nominal 20 micron in size, which is half the size of visible particles.

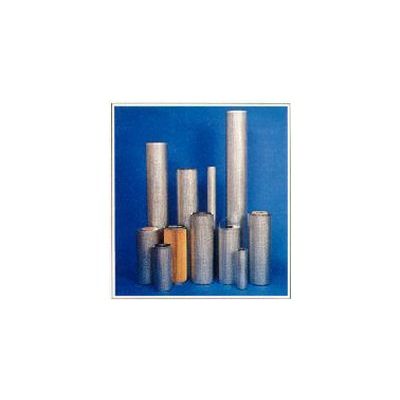

The Royal Filter RL Series element is designed for efficient removal of particulates from liquids or gases when nominal filtration is required. RL Series Elements are constructed of the finest quality materials. Media is phenolic resin impregnated paper, heat cured for strength and durability. Plated steel components, thermosetting PVC adhesives, and Buna N gaskets are standard on RL Series Elements. Center cores are spiral formed, electroplated steel to prevent cartridge collapse at high differential pressures. External outer bodies are perforated, tin plated steel. The RL Series offers quality and performance at an economical price.

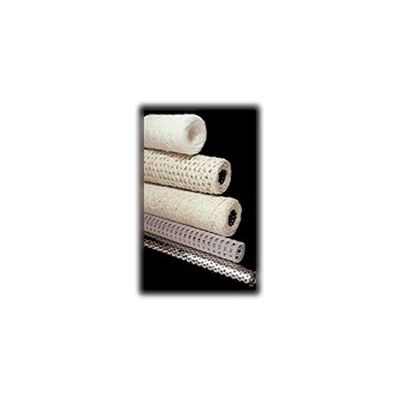

Progressive removal of particles from surface to core provides true depth filtration and a large contaminant holding capacity. The non-rupturing filter media are not subject to fracture or disturbance in shipping, handling or in-service pressure shocks. Filter tube sealing is positive. Tech-Spun Filter Tubes are supported by chemically resistant rigid metallic or non-metallic center cores

RLWA Series Cartridges are designed for removal of water and particulates from petroleum products. Royal water absorbing protect equipment in systems where the presence of water is harmful or undesirable. These cartridges alert the operator to the need for cartridge change through a rapid rise in differential pressure as the cartridge becomes saturated with water.  RLWA elements are ideal for use in lubricating oil, hydraulic oil and fuel systems. They can also be used in portable fluid conditioning equipment and filters. Elements are available in sizes to replace existing filter cartridges.

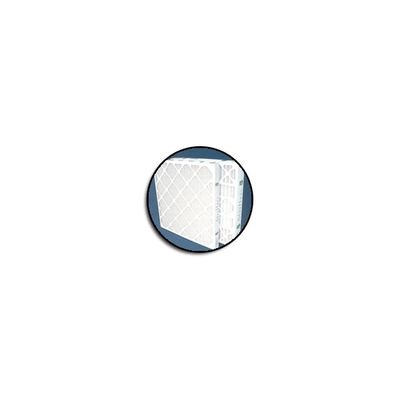

Pleated filters are used in a broad range of installations, from pre-filters to primary filters for computer room units as well as residential use. Whether used as primary filters or as pre-filters in multi-stage systems.  Our pleated filters offer a solution for virtually every commercial, industrial and residential HVAC application.

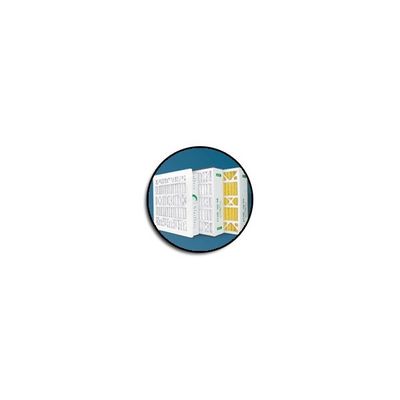

Pleated filters are used in a broad range of installations, from pre-filters to primary filters for computer room units as well as residential use. Whether used as primary filters or as pre-filters in multi-stage systems. Our pleated filters offer a solution for virtually every commercial, industrial and residential HVAC application.

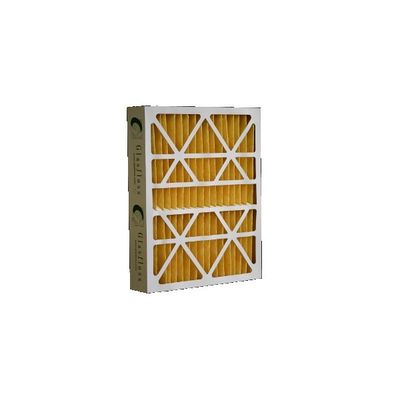

These are high efficiency electrostatically charged, 100% synthetic media pleated and framed filters made by Glasfloss Industries that replace the Aprilaire media modules. Just remove the internal plastic fingers and media in the plastic holding frame and slip one of these right in for an easy installation. There is no need to reinstall the finger separators.

These Merv 11 rated filters capture microscopic airborne particles such as dust, pollen, mold spores, pet dander, bacteria, and the particles that carry viruses.  33% more air flow means lower energy costs and cleaner air.

AMERICAN FILTRATION`S one pound STA-DRI pouches significantly reduce humidity and moisture.  They safely and conveniently absorb moisture from the air without the use of costly dehumidifiers. STA-DRI pouches contain granulated desiccant dryers and come packaged in a 100% spun bonded polyester bag. The pouch may be  regenerated up to three times. AMERICAN FILTRATION`S STA-DRI remains dry to the touch-even when totally saturated.
