American Grating, LLC products

Molded Fiberglass Grating - Gridwalk Open Mesh Molded FRP Grating

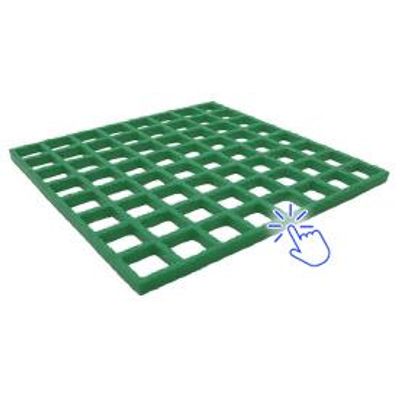

American-Grating - 1/2" Deep X 1 1/2" Square Mesh Molded Grating

Number of Bars: 8. Load Bar Width: 7/32". Load Bar Centers: 1 1/2". Open Area: 72%. Approximate Weight: 1.33 lbs/ft2. Engineering Properties Per Foot of Width: A = .84 in2, I = .02 in4, S = .07 in3. Hold Down Clip: M-15.

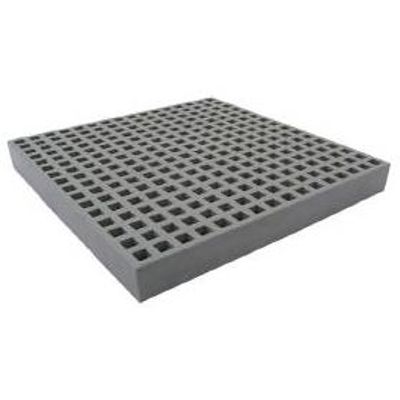

American-Grating - 1/2" Deep x 2" Square Mesh Molded Grating

Number of Bars 6. Load Bar Width 1/4". Load Bar Centers 2". Open Area 78%. Approximate Weight 1.01 lbs/ft2.

Pultruded Fiberglass Grating - Amerispan Pedestrian Pultruded FRP Grating

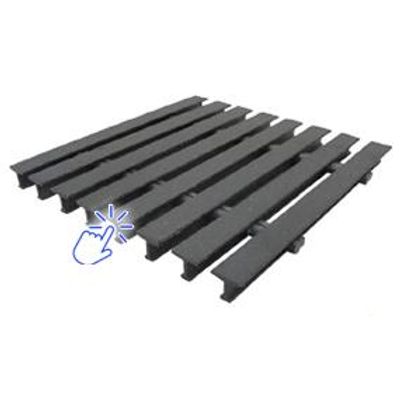

American-Grating - Pedestrian Pultruded FRP Grating

Number of Bars 10. Bar Depth 1". Open Area 17%. Max Width 5`. Load Bar Centers 1.2". Approximate Weight 3.82 lbs/ft2. Cross Bar Spacing 6".

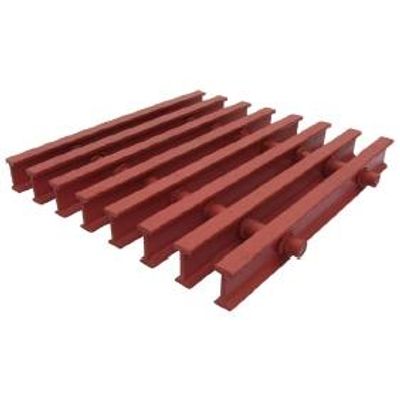

American Grating - T-Bar Pedestrian Pultruded FRP Grating

Number of Bars: 8. Bar Depth: 1". Open Area: 33%. Max Width: 5`. Load Bar Centers: 1.5". Approximate Weight: 2.25 lbs/ft2. Cross Bar Spacing: 6". Engineering Properties Per Foot of Width: A = 2.34 in², I = 0.27 in^4, S_T = 0.78 in^3,S_B = 0.42 in^3.
