American Meltblown & Filtration (AMBF) products

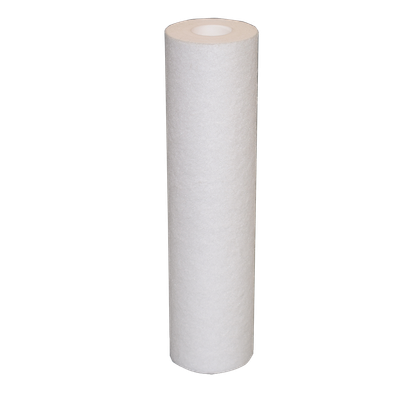

AMBF’s Melt Blown elements are manufactured in-house with the fastest, most modern equipment ever produced, giving you the highest quality filter on the market today. Elements are made from 1 to 100 micron in standard, high efficiency, absolute and heavy duty grades, giving you control of your filtration process.

AMBF’s string wound elements are manufactured in-house on custom, high-speed, computer- controlled machines for perfect thread spacing. Customized patterns and spacing offered to adapt to your specialized applications. Our ink and paint elements have a 3-stage multi pattern winding process offering true depth loading and prevents core blinding. With 6 media selections and 13 micron ratings, we are sure to produce the element you require.

AMBF’s standard efficiency pleated cartridges are manufactured in-house with 2 grades of media— polypropylene and polyester. In-house lamination and calendaring of our medias allow us to control the final media grades. Complete in-house testing guarantees a superior and consistent product. With 6 micron ratings, 2 standard diameters and 8 standard lengths we are sure to produce the element you require. Because we produce our own molds for the PVC end caps, custom sizes and applications are welcomed.

H & HN Series in 2 efficiency grades, offer the ultimate in high-end filtration. AMBF offers the highest grade, 90% and 99.98% efficient elements on the market today. Our media is manufactured in-house under strict guidelines to ensure consistency. In-house lamination and calendaring of our medias allow us to control the final media grades. Complete in-house testing with a Capillary Flow Porometer guarantees a superior and consistent product.

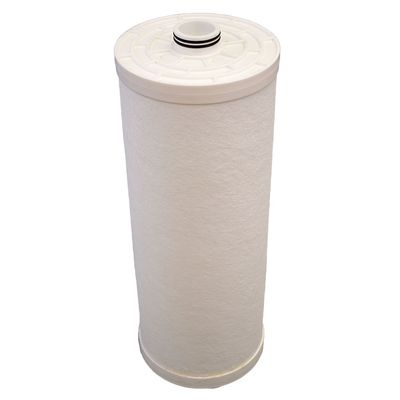

In-house produced Pre-Filtration Polypropylene Media wrap. Increased Adsorption based upon higher exposed small carbon particle make-up. Proprietary Carbon Blend Formulation. Uniformed Micro-porous Dual Action Activated. Sediment Carbon Block Construction eliminates channeling. More Stable Pressure Consistency. UV Welded end caps—No Glues or Adhesives. No GAC By-pass or Fluidizing. Substantial Carbon Volume with Maximum Service Life. FDA Compliant Constructed Materials.

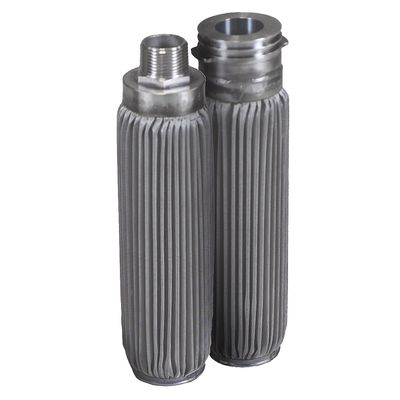

AMBF’s stainless steel cartridge filters are produced with the highest quality materials in the USA, offering you the best filters for high temperature applications — up to 525°F. Cartridges are produced in 304 and 316 stainless steel with welded and crimped construction. Retention ratings range from 5 to 840 micron. With 8 different lengths and 6 different end cap configurations, we are sure to produce the element you require.

AMBF offers the highest grade, 90% and 99.98% efficient elements on the market today. Our media is manufactured in-houses under strict guidelines to ensure consistency and maximum dirt loading. In-house lamination and calendaring of our medias allow us to control the final media grades. Complete in-house testing with a Capillary Flow Porometer guarantees a superior and consistent product. With 8 micron ratings and multiple lengths and 4 end cap configuration to ensure we produce the element you require. Elements have thermally bonded end caps and ultrasonic welded media seams for a one piece construction. Final, one piece construction up to 40” long ensures zero bypass. We install the maximum amount of media in each filter without pleat binding for increased dirt loading capacity.

Standard, Custom, Multi-Layered—it’s in the bag. AMBF liquid filter bags are manufactured in the USA, made with the highest grade material to offer you quality and efficiency in each bag.  All standard sizes are available with 15 different top rings to offer you the proper filter bag you need to adapt with your existing housings.

Manufactured in USA. Standard size bags to fit most major housing brands. Available in 1 to 200 micron ratings. Dual Gradient Depth Media, no other bag holds more particulate. Choice of four different top rings. Material options available: polypropylene felt. Removes tramp oils for water. Optional glazed media finish inhibits fiber migration. Features standard handle for easy removal, at no additional cost. Adds an additional 637 cubic inches of depth filtration.

Robust Design and High Quality Construction for Industrial and Commercial Applications. Single Bag Housings, Bolted Cover, #1, #2, #3, #4 & #12 Industry Sizes. Concave evacuation style cover prevents spills during bag changes. Stainless adjustable legs. Standard Buna-N Seals.
