American Tool & Engineering, Inc. (ATE) products

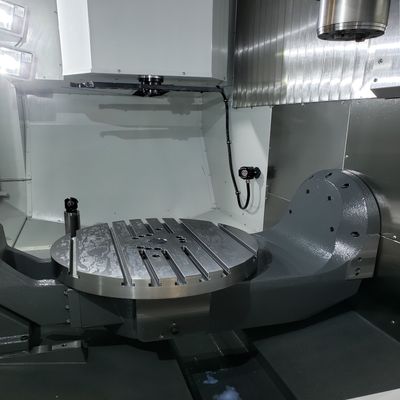

HAAS UMC 1000ss. Travels- X AXIS - 40" Y AXIS - 25" Z AXIS - 25". C AXIS ROTATION - 360° ROTATION . B AXIS TILT - (-35°) to (+110°) . PLATTER DIAMETER - 25".

CNC- Rambaudi 5-AXIS Gantry (One of the largest 5axis in the area). Travels: X-106.3”, Y-86.6”, Z-39.4”.  (C axis pitch +/-110 degrees ) – (A axis roll +/200 degrees). Renshaw Probing – 24,000 RPM.

Travels: X- 80”, Y- 39”, Z-47”. #50 Taper- 8,000 RPM. Coolant thru spindle and Renishaw Probing.

Travels: X-50”, Y- 20”, Z-25”.  #40 Taper – 10,000 RPM. Coolant thru spindle and Renshaw Probing.

Travels: X-50”, Y- 20”, Z -25”. HAAS connect- 12,000 RPM. Coolant thru spindle and Renshaw Probing.

Travels: X-80”, Y-40”, Z- 30”. #40 Taper - 12,000RPM. Coolant thru spindle and Renshaw Probing.

Travel: X- 50”, Y-30”, Z-28”. #50 Taper - 6,000 RPM.

Travels- X-86”, Y -42”, Z- 37” . #50 Taper- 6,000 RPM.
