Ames d.o.o. products

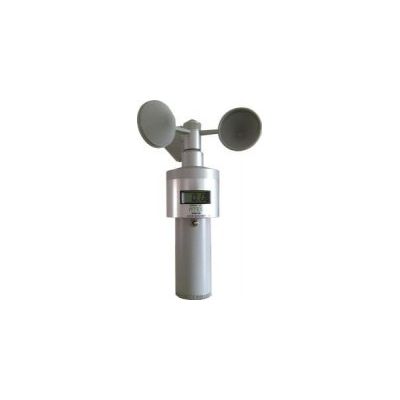

Handheld anemometer RVM 160 is truly portable, easy to use electronic – mechanical device for wind measurements. It is used in all cases, where other instruments, due to their design, weight or dimensions, are unsuitable. Wind speed is measured with an optoelectronic system with 3-cup Robinson’s cross and digital liquid crystal display. Wind speed is sampled in 1-second intervals. Four AA-type (R6) batteries located in a handle power the electronics. Automatic power-off circuit switches the instrument off, when cup assembly is not rotating for more than 4 minutes. As an option, wind speed data can be transmitted to the external device each second by RS 232 serial port (RVM 160/T).

The RVM 96B-1 is a portable, easy to use electro – mechanical device for wind speed and direction measurements. It is particularly suited for usage in adverse conditions, where other instruments due to their design, weight or dimensions, would be unsuitable. Suitable for military, coast guard, firemen, construction workers, sports, etc.

Operation parameters are selected and set through the menu-organized comands. Settings and constants are stored in EEPROM, so that they are unchanged when instrument is switched off, even when battery is removed. At the end of each data processing interval, mean values and extremes are stored with the time stamps in the EEPROM data storage. These data can be reviewed later on the instrument display or transmitted serially to the external computer. RVM 96C can store data for up to 2048 data processing intervals. This means, that data for 85 days are stored, provided that averaging interval is set to 1 hour. Data are stored on FIFO (first in – first out) principle.

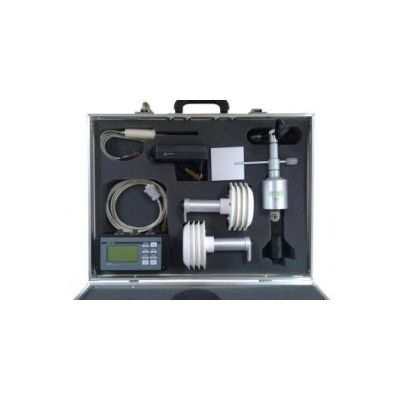

AMS 159P is small, lightweight, computerised, low power portable meteorological station for ground measurements in special conditions (terrain, mobile unit, stationary unit with limited number of sensors, pollution measurements)

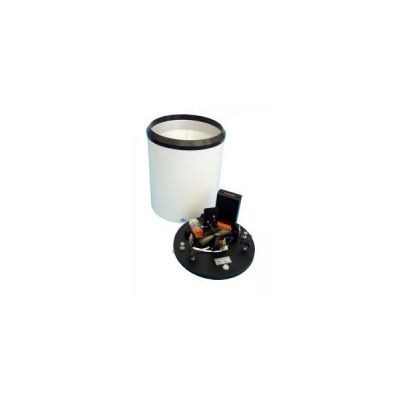

MR3H-F is used to measure quantity and intensity of precipitation. Inside there is a tipping bucket with the 5ml containers. When the first container is full it turns over and the other starts to fill. When turn occurs, it breaks the light beam of an optoelectric transducer and generates an electric pulse. There is a heater built in, to prevent freezing. Temperature at which heater turns on is adjustable and is regulated by a thermostat. Built-in electronics dynamically corrects output according to the precipitation rate. On the upper side of MR3H-F there is a protection ring that prevents birds to carry dirt into the sensor. On the bottom side there is mounting element to fix sensor to the supporting rod. MR3H-F is a product of Meteoservis, which is represented in Slovenia by AMES. For other Meteoservis ombrometers please visit their Internet site www.meteoservis.cz.  Tipping-bucket ombrometer that measures quantity and intensity of precipitation

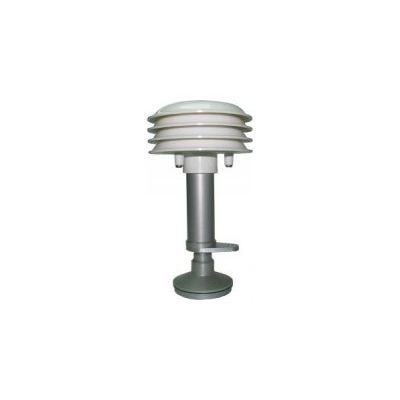

DTE 75A is non aspirated sensor designed to measure air temperature. As a sensing element, thermolinear thermistor is used. It is protected by stainless steel cylinder that is thermally isolated from the case. Case is made of aluminium and UV resistant plastics protecting the sensing element from the sun and precipitation. On the bottom side of the sensor there is a mounting element and three pin waterproof connector to connect the sensor with the measuring system. Sensor has to be mounted upright and should be overvoltage protected. To provide connection between the sensor and the measuring system a two wire shielded cable should be used (Max. length can be up to several hundreds meters, depending on the wire resistance ).
