AMMtech s.r.l. products
Butterfly Dampers

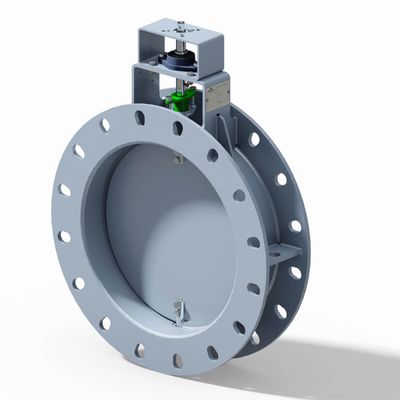

AMMtech - Model AMM701 - Butterfly Damper Valve
Servizio On-Off o Modulante. DN 150 -1500. Max Leakage Class III (FCI 70-2). End Connections: Wafer, Flanged. Material: Carbon Steel, AISI 304, AISI316.
AMMtech - Model AMM704 - Butterfly Damper Valve
For Control or On/Off Service. DN 50 – 125. Max Leakage Class I (FCI 70-2). End Connections: Wafer. Material: AISI316.

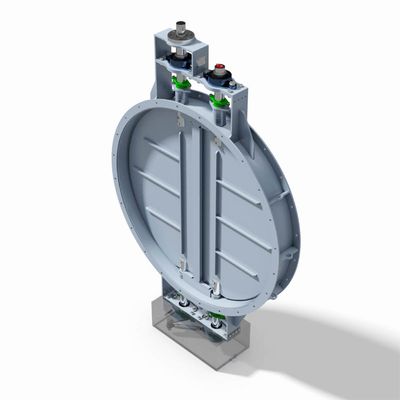

AMMtech - Model AMM705 - Double Blade Butterfly Damper Valve
Modulating Service. DN 300 – 3000. End Connections: Wafer, Flanged. Material: Carbon Steel, Corten, AISI 304, AISI316.
By-Pass Damper / Diverter

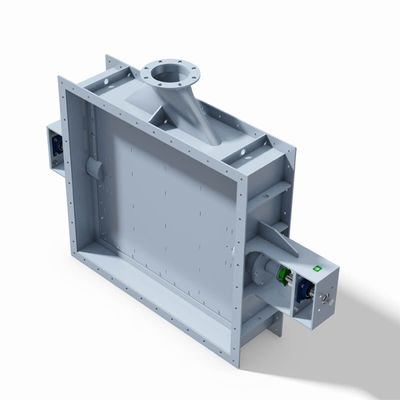

AMMtech - Model AMM755 - By-Pass Damper
For Control or On/Off Service. DN 100 – 2500. Max Leakage Class III (FCI 70-2). End Connections: Flanged. Material: Carbon Steel, Corten, AISI 304, AISI 316.

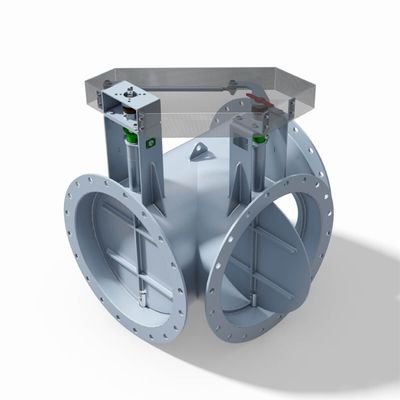

AMMtech - Model AMM770 - Diverter Damper Valve (Gas Distributor)
Size Range upon request. For Control or On/Off Service. Max Leakage Class III. (FCI 70-2). End Connections: Flanged. Material: Carbon Steel, Corten, AISI 304, AISI 316.
Diverter Louver / Multi-Louver
AMMtech - Model AMM710 - Louver Damper Valve
Rectangular or Square section. For Control or On/Off Service. Size Range upon request. End Connections: Flanged. Material: Carbon Steel, Corten, AISI 304, AISI316, AISI 310, AISI 321.
AMMtech - Model AMM710T - Louver Damper Valve with Air Sealing System
Louver Damper Valve with Air Sealing System for Total Tightness 100%. Rectangular or Square section. For Control or On/Off Service. Size Range upon request. Total Tightness 100%. End Connections: Flanged. Material: Carbon Steel, Corten, AISI 304, AISI316.
Radial Vane Dampers
AMMtech - Model AMM715 - Radial Vane Damper Valve
Modulating Service. DN 300 -2000. End Connections: Flanged. Material: Carbon Steel, AISI 304, AISI316.
Knife-Gate Valve
AMMtech - Model AMM761 - Guillotine Damper (Slide Gate)
Circular, Square, Rectangular section. For Control or On/Off Service. DN 100 – 3000. Max Leakage Class ØLeakage Tenuta Perfetta. End Connections: Flanged. Material: Carbon Steel, Corten, AISI 304, AISI 316, AISI 310, AISI 321.
Non-Return Damper

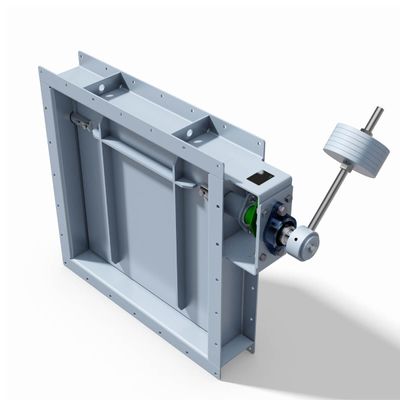

AMMtech - Model AMM790 - Counterweight Non-Return Damper Valve
Circular, Square, Rectangular section. Servizio On-Off o Modulante. DN 150 -2500. Max Leakage Class III (FCI 70-2). End Connections: Wafer, Flanged. Material: Carbon Steel, AISI 304, AISI 316.
