AMP-Cherokee products
Velocity / Pressure / Temperture Transmitters

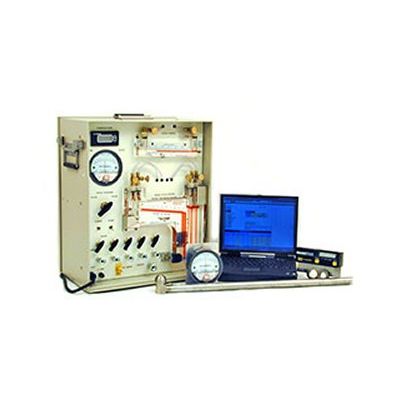

3D Pitot & Console
The 3-D pitot and console is used for precise measurement of gas velocities and cyclonic and tangential flow as per EPA Method 2F. Cherokee employs the spherical head type pitot, which offers excellent repeatability and precision over a wide range of velocities. Each pitot is provided with a current wind-tunnel calibration from an EPA certified wind tunnel. A copy of EPA’s 3-D pitot data reduction software is provided on CD-ROM or via download.
System
CEMS - Direct Extractive: Walk-In Shelter
AMP-Cherokee walk-in Direct Extractive CEMS is offered in both a wall-mount and instrument rack design. Our walk-in shelters are available for either general purpose or explosion proof applications. The local 15” color PC touch-screen HMI interface and plug-and-play component functional design sets a new standard for CEMS reliability and ease of operation. AMP-Cherokee also offers a compact self-contained walk-up shelter (See MiniCEMS) for space constrained footprints or budget conscious applications.
CEMS - Dilution Extractive Walk-In Shelter
AMP-Cherokee walk-in Dilution Extractive CEMS is offered in an instrument rack design. Our walk-in shelters are available for either general purpose or explosion proof applications. AMP-Cherokee also offers a compact self-contained walk-up shelter (See MiniCEMS ®) for space constrained or budget conscious applications. The local 15” color touch-screen HMI interface and plug-and-play component functional design sets a new standard for CEMS reliability and ease of operation.
Continuous Emissions Monitoring
The next step forward in emissions monitoring is already here - at AMP-Cherokee. Our integrated CEMS / PEMS Hybrid systems feature an HMI interface for multiple sources through CEMS and/or PEMS systems for process measurement and emissions monitoring.
MiniCEMS - Direct Extractive: Walk-up Shelter
AMP-Cherokee’s MiniCEMS© is a climate controlled, full-featured walk-up CEMS for monitoring nitrogen oxides, sulfur dioxide, carbon dioxide, carbon monoxide and oxygen. The MiniCEMS© is ideal for 40 CFR 60 Subpart Db emissions monitoring of gas and oil combustion sources. For applications that do not require a walk-in shelter, the climate-controlled MiniCEMS® can be located anywhere in the plant as a temporary or permanent monitoring solution.

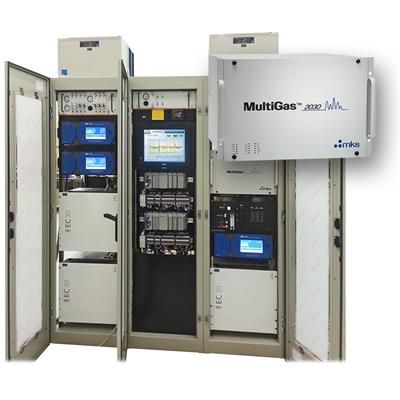

MultiGas - FTIR Continuous Monitoring Systems
The MultiGas™ 2030 is an FTIR Spectroscopy gas analyzer capable of percent level detection as well as ppb sensitivity for multiple gas species in a variety of applications. The MultiGasTM 2030 CEM is an FTIR-based gas analyzer designed for integration with complete continuous emissions monitoring systems (CEMS) to measure emissions from stationary sources such as waste incinerators, power plants and cement kilns. This analyzer is the core technology used in the TÜV and MCERTS certified MGS300 system produced by MKS Instruments. It is capable of directly analyzing hot, wet effluent gas streams without the need for sample pre-treatment. It monitors multiple gas components over a wide range of compositions with minimal cross-interference effects from either water (up to 40%) or other potentially interfering species.
