AMUT SpA products

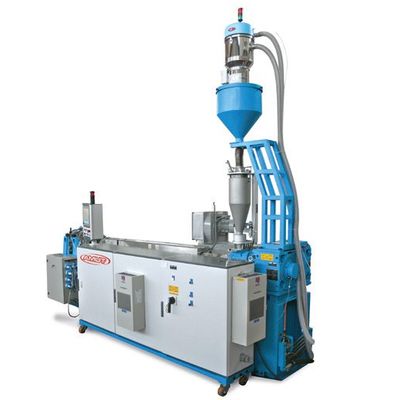

Extruders with screw diameters suitable for applications requiring precision and reliability. Ideal for the manufacture of small profiles, gaskets, pipes and technical products. Also employed as laboratory machines for research and quality control activities. AMUT single screw extruders of the EA series can also work as  co-extruders. For such application, easily integrable versions are  available to fit each type of extrusion line. This configuration is  possible due to our special base design, with moving and fixed  positions, which can be adjusted in height and angle for a quick connection to the extrusion equipment. Especially suitable for the co-extrusion of colored identification  stripes  on  pipes  in  PP,  PE  and  other,  inner/outer  sheathings,  functional layers for multi-layer pipes and foils.

Technology and reliability for the extrusion of pipes, profiles, foils, sheets, granules and other products. AMUT extruders of the LS series are suitable for the manufacture of profiles, pipes, gaskets and other products. A pulley drive transmission allows versatility and space reduction. It enables a high flexibility of use, due to the accurate choice of the reduction ratio, the speeds and the greatest torque value applicable to the materials to be extruded, still utilizing a low installed power. Furthermore, future production changes will be facilitated by the easy modifiable drive transmission ratio. Wide range of screw geometries designed for each material giving maximum output rates or have multi-purposes features to combine versatility and efficiency.

Technology and reliability for the extrusion of pipes, profiles, foils, sheets, granules and other products.

The counter-rotating, parallel twin screw extruders are the ideal solution to meet the requirements of an always more competitive market. The AMUT new generation of twin screw extruders,  equipped with high torque gearboxes, can process PVC dry- blend compounds or granules to obtain high-quality products  having  better  mechanical  properties,  due  to  the  optimal  plasticizing  action  of  the  material,  lower  cost  for  additives   requirement in the base resin, melt flow optimal homogeneity and high output at low screws RPM

Materials extruded: PVC. Screw diameters: 48-107, 59-128 mm. L/D ratio: 24.

EA Extruder-52 D + Easy Feed is the innovative extrusion and feeding concept developed by AMUT R&D Division to process up to 100% ground material. Fusing latest technologies and consolidated know how, it represents an easy-to use system for the operator achieving flexible production. EA Extruder-52 D + Easy Feed process all the thermoplastic materials used in the thermoforming phase, perfectly handling both light and heavy ground materials:

The technology applied on this series of machines is totally dedicated and developed for high speed stretch film production with high quality winding.

Processed Material: Bottles. Plants Capacity: 500, 1250, 2000, 2500, 3000, 4000, 6000 kg/h.

Processed Materials: packaging film; agriculture film. Plants Capacity: 500, 1000, 2000 Kg/h.

The high friction on the surface of the bottles allows to remove in a very short time both labels and surface dirt, which are separated through a grid capable to eliminate also inert materials such as: sand, glass, stones, small-sized metals. The residence time in the treatment is presettable, as well as the filling level of the machine which operates continuously. Washing water draining out of the washer is collected and filtered, in order to be reused more times and its quality is kept constant by the regular top up of the waste water coming from the flakes washing process. If required by the quality of the processed bottles, recirculation water can be heated and conditioned by chemical detergents.
