Analog Technologies, Inc (ATI) products

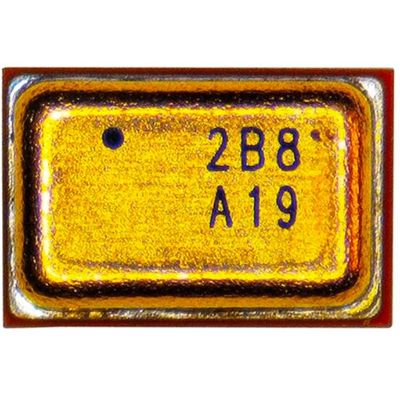

The AT6216 is a high quality, low cost, low poweranalog output Top-ported omni-directional MEMSmicrophone. AT6216 consists of a MEMS microphoneelement and a preamplifier. AT6216 has a high SNRand flat wideband frequency response, resulting innatural sound with high intelligibility. Extra EMI filterfor RF noise attenuation is built inside. Due to thebuilt-in filter, AT6216 shows high immunity to EMI.The AT6216 is available in a thin 2.75mm × 1.85mm× 1.00mm surface-mount package. It is reflowingsolder compatible with no sensitivity degradation. The AT6216 is halide Halogen and Lead free.

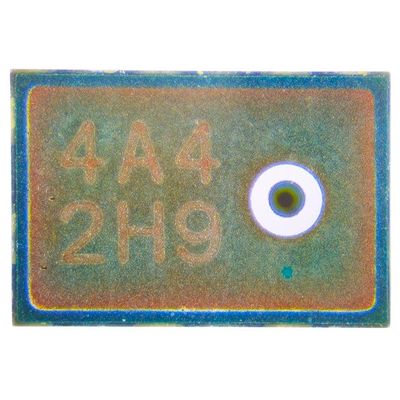

The AT6856 is a high quality, low cost, low power analog output bottom-ported omni-directional MEMS microphone. AT6856 consists of a MEMS microphone element and an preamplifier. AT6856 has a high SNR and flat wideband frequency response, resulting in natural sound with high intelligibility. Extra EMI filter for RF noise attenuation is built inside. Due to the built-in filter, AT6856 shows high immunity to EMI. The AT6856 is available in a thin 2.75mm × 1.85mm × 0.9mm surface-mount package. It is reflowing solder compatible with no sensitivity degradation. The AT6856 is Halogen and Lead free.

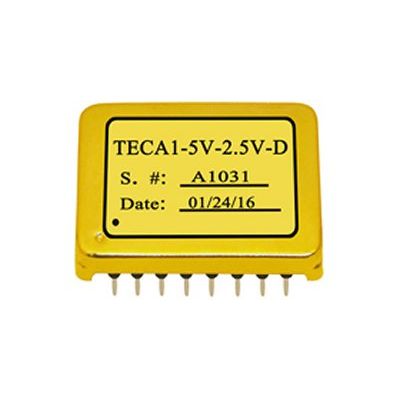

The TECA1-xV-xV-D is an electronic module designed for driving TECs (Thermo-Electric Coolers) with high stability in regulating the object temperature, high energy efficiency, zero EMI, and small package.

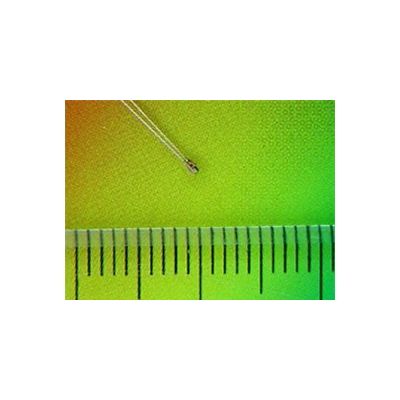

The ATH10K1R0 series thermistor is encapsulatedby glass, with two coated leads. The glass ensures long term stability, and coated leads prevent them from shorting with each other. Comparing with conventional epoxy encapsulated thermistors, ATH10K1R0 features smaller size, quicker response time, better long term stability, and wider temperature range. The ATH10K1R0 is sealed between the head and leads, it can work up to 250°C temperature liquid resistant.

The ATH10KR8B is a high precision glass encapsulated thermistor. Comparing with conventional epoxy encapsulated thermistors, ATH10KR8B presents higher long term stability and wider temperature range. In addition, it has a small size and short response time. In addition, there are two insulation versions available, one of which comes with leads covered by plastic tubing, the ATH10KR8BT65, and the other one, the ATH10KR8BT65S, is sealed between the head and the tubing. They can work under up to 140°C temperature and the latter is of liquid resistant.

The ATH10KBL2A is a thermistor assembly with a glass encapsulated thermistor packaged in an extra compact ring lug. The ATH10KL2A series thermistor consists of three versions, ATH10KBL2A, ATH10KBL2AT65 and ATH10KBL2AT65S. The ATH10KBL2A has bear leads coated with copper, the ATH10KBL2AT65S has the leads covered by high temperature plastic tubing and sealed by epoxy, while the ATH10KBL2AT65 is the non-sealed version. Comparing with conventional assemblies containing epoxy encapsulated thermistors, ATH10KL2A presents higher long term stability, higher reliability and wider temperature range. In addition, it has a small size and short response time.

Temperature sensing for laser diodes, optical components, etc.
