The FN1/4-1 is a carbon steel flow control valve designed for industrial fluid management applications. This valve features a 1/4 inch National Pipe Taper Fuel (NPTF) thread, suitable for various fluid control systems. Its compact dimensions, with a length of 2.670 inches, a width of 2.600 inches, and a height of 1.180 inches, ensure easy integration into existing setups. The valve is built to withstand a maximum pressure of 5700 psi and supports a flow rate of up to 4 gallons per minute, making it suitable for high-pressure environments. It operates effectively within a temperature range of -4 to +176 degrees Fahrenheit. The FN1/4-1 is RoHS compliant and features zinc chromate plating for enhanced corrosion resistance. It employs a standard spring setting of 7 psi and uses Buna O-Ring/PTFE for stem packing, ensuring reliable sealing and longevity in demanding conditions.

The AV2 Two-Way Excavator Style Ball Valve is engineered for high-performance hydraulic systems, particularly those involving excavators. This valve features a 1/2-inch National Pipe Thread (NPT) connection, ensuring seamless integration in varied setups. Constructed using durable carbon steel for both its body, adapter, ball, and stem, it guarantees robust performance even under high-pressure conditions, with a maximum pressure tolerance of 7250 psi. The valve is designed with Polyoxymethylene (POM) seats, ensuring reliable sealing and smooth operation. Its unrestricted bore allows for efficient fluid flow, minimizing the risk of blockages. Dimensionally, it is optimized with precise measurements that accommodate easy installation, and its zinc chromate plating offers enhanced corrosion resistance. Adherence to RoHS compliance underscores its commitment to quality and safety standards, making it a fitting addition for any hydraulic application. Note that seal selection should be consulted with the system's seal manufacturer, as this responsibility isn't assumed by Anchor Fluid Power.

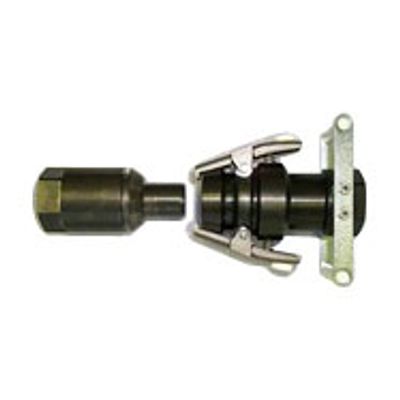

The 11 Series Self-Sealing Coupling by Anchor Fluid Power is engineered to provide reliable performance in fluid transfer systems. With a nominal bore diameter of 12mm, this coupling is designed to handle demanding applications with a maximum continuous operating temperature of up to 590°F (310°C). It boasts a coefficient of variation (CV) value of 3.23, allowing for efficient flow management. The coupling is rated for a maximum static pressure of 16 bar (232 psi) when coupled, enabling it to perform ideally in hydraulic and pneumatic systems. Its self-sealing mechanism ensures leak-proof operation, enhancing the reliability and safety of the system. These features make it suitable for industries requiring precision and durability in fluid control. Whether in manufacturing, automotive, or aerospace, the 11 Series Self-Sealing Coupling is an essential component for maintaining system integrity and efficiency.

The SAE to SAE full coupling by Anchor Fluid Power is crafted from AISI 1020 carbon steel, ensuring durability and reliable performance in fluid power systems. It features a precise 0.880-inch dimension A, making it suitable for applications requiring standard SAE to SAE connectivity. Engineered in compliance with industry-standard SAE straight threads and UNF-2B specifications, it provides a secure and leak-proof connection for hydraulic and pneumatic systems. Dimension B is 0.390 inches and dimension C measures 1.160 inches, with thread dimensions of 7/16-20, ensuring compatibility with a variety of industrial setups. This coupling is designed to meet the rigorous demands of fluid dynamics, providing optimal performance in demanding environments. Its robust construction and compliance with technical specifications make it a reliable choice for engineers and manufacturers in need of high-quality coupling solutions.
