The FLOODLINE Groundhog Mk II is a self-contained, single-zone leak detection system that can be mounted vertically or horizontally. It can be connected to any control or building management system that has the facility to accept volt-free contacts. Additional FLOODLINE™ Point Sensors and/or Leak Detection Tape can be slaved off the Groundhog.

W02 - Where evidence is provided to demonstrate that a water meter with a pulsed output will be installed on the mains supply to each unit. W03 - Where evidence is provided to demonstrate that a leak detection system is specified or installed to each unit. Andel Ltd, its products and services are not affiliated, endorsed or certified by BRE Global Ltd. All rights are reserved. Our products can help achieve recognition within BREEAM® subject to suitable assessment by an authorised assessor.

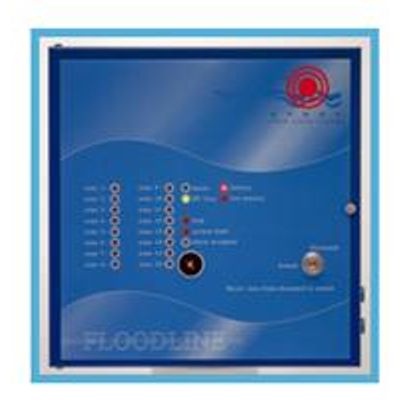

Andel’s FLOODLINE MULTI-ZONE CONTROL PANEL operates the network of leak detection zones, which can be 4, 8, 16 or 32 zones. A zone can be a single point or can run for many metres with the whole network being continuously monitored for leaks and continuity.

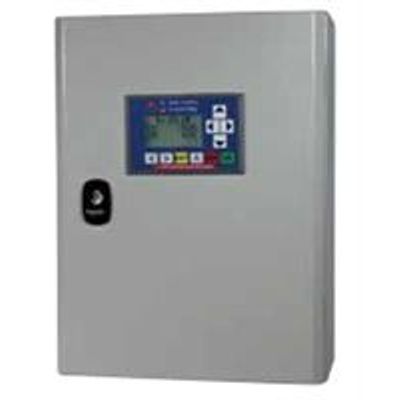

The 128 Multi-Zone System operates a network of leak detection cables and sensors up to a total of 128 zones. A zone can be a single point or many metres of detection cable and the whole network is continuously monitored for leaks and continuity. Zones are electrically isolated from each other and individually displayed so the system can accept and report any number of simultaneous or consecutive zone alarms. An alarm in one zone has no effect on the normal monitoring of its neighbours or the rest of the system.

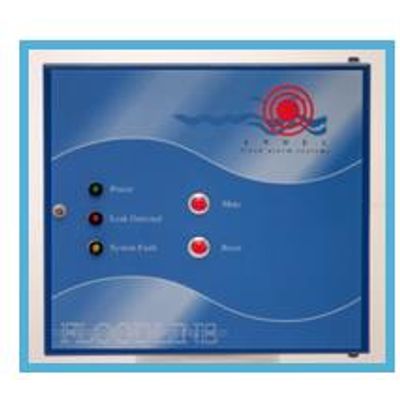

Andel’s FLOODLINE ONE-ZONE WATER LEAK DETECTION CONTROL PANEL offers a cost-effective, stand-alone system where a small amount of detection is required. One or more FLOODLINE™ SENSORS can be connected. Output relays are provided for connection to remote alarm and BMS. The LED display provides clear and easy-to-understand status and alarm information.

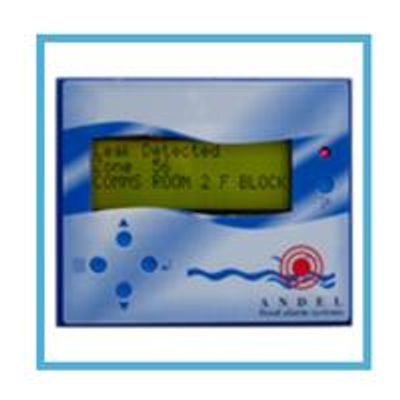

Award-winning Floodline® HLD – the control panel that takes leak detection to a whole new level. The next generation, hybrid, multi-detector monitoring system. Unique, state-of-the-art leak detection and environmental monitoring system, the Floodline® HLD control panel is a true hybrid, the only system that is able to accept input alarms and provide detailed data from water, multi-gas and oil leak sensors as well as temperature and humidity sensors simultaneously.

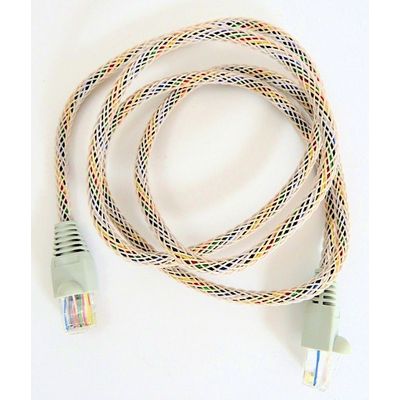

Andel’s robust Floodline® Multi-8 Detection Cable is a unique, multi-zone, water-sensitive cable that allows up to eight separately reporting leak detection zones from a single cable. Floodline® Multi-8 Detection Cable detects the presence of water and conductive liquids at any point along its entire length. Floodline® Multi-8 Detection Cable provides consistent performance and can be wet and dried any number of times. Easy to install and maintain, the tough, lightweight, flexible and quick-drying cable can be removed, cleaned and returned to use.

The Floodline® Digital Multi-Gas Sensor range provides continuous monitoring for the presence of specified gases in enclosed spaces. The sensor performs periodic measurement of the concentration of a given gas in the ambient atmosphere. The Multi-Gas Sensor can be calibrated to detect a chosen single gas from a range of commercially used gases including ammonia, butane, carbon dioxide, carbon monoxide, hydrogen, methane, natural gas, propane and the range of commercial refrigerant gases.

The Floodline® Oil Leak Detection Sensor can be used as part of a larger Floodline® installation or as a stand-alone dedicated oil leak detection system. The design is a compact and robust unit suitable for vertical or horizontal mounting and the alarm is activated through contact with oil or any conductive liquid. Supplied with a stainless steel Floodline® Guard Plate to provide heavy-duty physical protection and for fixing and easy adjustment.

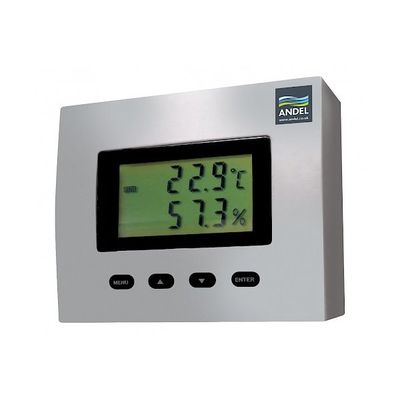

Floodline® P-TH3 Temperature and Humidity Sensor uses the latest self-recovery and self-calibration semiconductor technology to measure the temperature and humidity of an environment. The easy-to-read display screen continously shows temperature and humidity and the sensor can connect to a Floodline® Control Panel as part of a larger Floodline® leak detedtion installation or can be integrated into a BMS.
