Angodos S.L. products

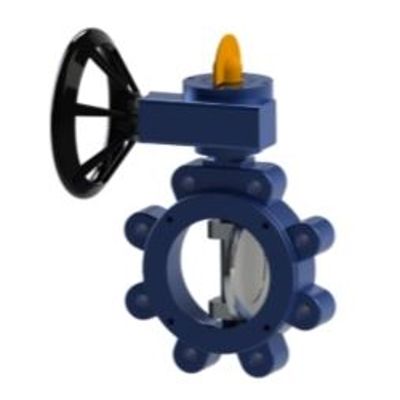

ANGODOS AG1 LUG is a full bore butterfly valve with LUG connection body. The valve is available from DN80 to DN200 and for a máximum pressure of PN40. The sealing gasket is the key for reliable sealing performance and it’s placed in the body. The disc is attached to the eccentric (simple or double) shaft bearing assuring an uniform seat and avoiding critical leaking by pressure discontinuities at the sealing area. In this way ANGODOS AG1 sealing system assures perfect sealing under the most demanding conditions. Full bore and hydrodynamic internal design provides outstanding hydrodynamic features minimizing the head loss.

ANGODOS AG1 WAFER is a full bore butterfly valve with wafer connection body. ANGODOS AG1 WAFER is a full bore butterfly valve with wafer connection body. The valve is available from DN40 to DN260 and for a máximum pressure of PN40. The sealing gasket is the key for reliable sealing performance and it’s placed in the body. The disc is attached to the eccentric (simple or double) shaft bearing assuring an uniform seat and avoiding critical leaking by pressure discontinuities at the sealing area. In this way ANGODOS AG1 sealing system assures perfect sealing under the most demanding conditions. Full bore and hydrodynamic internal design provides outstanding hydrodynamic features minimizing the head loss.

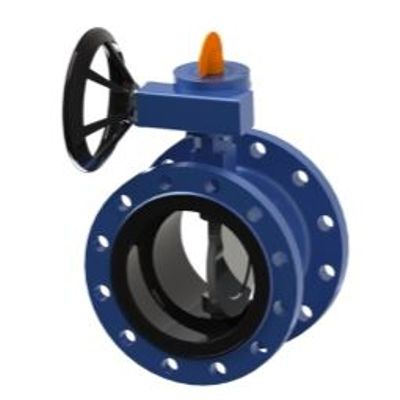

ANGODOS AG1-VC is a full bore butterfly valve with flanged body. ANGODOS AG1-VC is a full bore butterfly valve with flanged body. The valve is manufactured from a single cast iron body internally vulcanized with EPDM elastomer. The internal vulcanized elastomer gasket offers flat sealing and is the key for reliable performance. The disc is attached to the eccentric (simple or double) shaft bearing assuring an uniform seat and avoiding critical leaking by pressure discontinuities at the sealing area. In this way ANGODOS AG1-VC sealing system assures perfect sealing under the most demanding conditions. Full bore and hydrodynamic internal design provides outstanding hydrodynamic features minimizing the head loss.

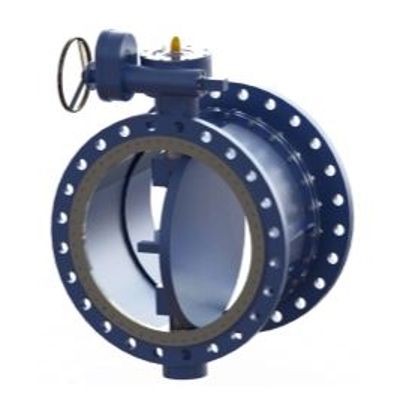

ANGODOS AG1-CT is a full bore butterfly valve with flanged body and incorporated dismantling joint. ANGODOS AG1-CT is a full bore butterfly valve with flanged body and incorporated dismantling joint. The valve is available from DN300 to DN2000, for PN10, PN16 and PN25. The body is made of two elements. A fixed part made of welded steel, and a mobile part which allows to change the face to face dimensions, avoiding the need of installing an additional dismantling joint The sealing gasket is the key for reliable sealing performance and it’s placed in the fixed part of the body. The disc is attached to the eccentric (simple or double) shaft bearing assuring an uniform seat and avoiding critical leaking by pressure discontinuities at the sealing area. In this way ANGODOS AG1-CT sealing system assures perfect sealing under the most demanding conditions. Full bore and hydrodynamic internal design provides outstanding hydrodynamic.

ANGODOS AG-AX is a flanged axial type control valve manufactured from a single cast.ANGODOS AG-AX is a flanged axial type control valve manufactured from a single cast iron body or mechanical welded body that allows reduce and control flows in a pipeline with high precision and security. The sealing system is made of EPDM vulcanized to a stainless steel ring which is the base for a tightness seal, and a stainless steel piston which will move in the same direction of the pipeline. Due to the guided piston system with quad-ring seal and the movement transmission system of rack-pinion, the piston is operated with high precision and very low torque, optimizing the operation while minimizing costs.

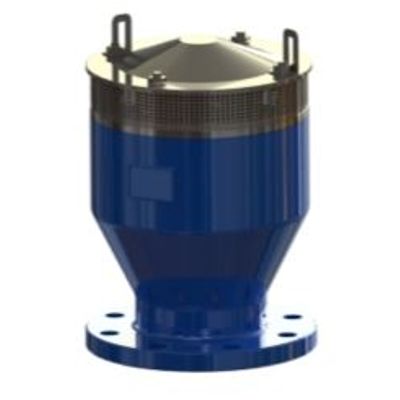

ANGODOS VAIU is an innovative full bore and triple function air valve.ANGODOS VAIU is an innovative full bore and triple function air valve. Made with a single chamber body, it discharges air during pipeline filling, allows the adduction of large volumes of air during draining or pipeline bursts and can evacuate air pockets during working condition. The design allows a smooth passage for air flow, maximizing the air flow rate, due to aerodynamic inner lines and full bore. The innovative venting system allows an automatic air release during working condition, maximizing the piping system capacity. Optionally anti-slam system or inflow system can be fitted to the valve.

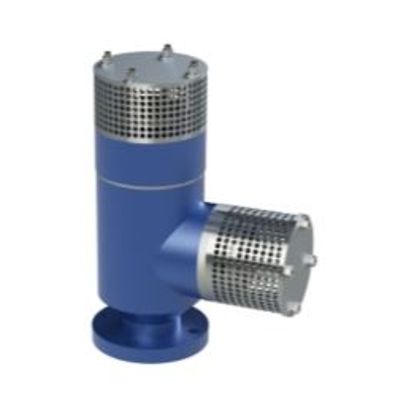

ANGODOS VAIU-VB is an innovative full bore and triple function + vacuum breaker air valve.ANGODOS VAIU-VB is an innovative full bore and triple function + vacuum breaker air valve. Made with a single chamber body, it discharges air during pipeline filling, evacuate air pockets during working condition, and the vacuum breaker system allows the adduction of large volumes of air during draining or pipeline bursts at preset differential pressure values. The design allows a smooth passage for air flow, maximizing the air flow rate, due to aerodynamic inner lines and full bore. The innovative venting system allows an automatic air release during working condition, maximizing the piping system capacity. Optionally anti-slam system or inflow system can be fitted to the valve.

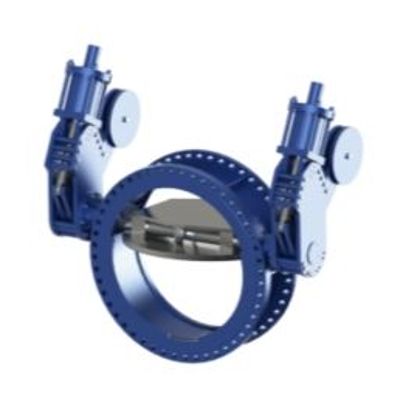

ANGODOS AG1-R is a butterfly check valve, full bore with flanged body. ANGODOS AG1-R is a butterfly check valve, full bore with flanged body. The valve is available from DN200 to DN1500 The sealing gasket is the key for reliable sealing performance and it’s placed in the body. The disc is attached to the eccentric (simple or double) shaft bearing assuring an uniform seat and avoiding critical leaking by pressure discontinuities at the sealing area. In this way sealing system assures perfect sealing under the most demanding conditions. Full bore and hydrodynamic internal design provides outstanding hydrodynamic features minimizing the head loss. Automatic closing happens when the flow direction changes because of the offset and the counterweight. The end of the closing movement can be optionally damped The valve offers maximum safety due to the mechanic design, working without the need of any energy source.

ANGODOS MNZ is a flanged check valve with multi-orifice.ANGODOS MNZ is a flanged check valve with multi-orifice system that will automatically close by the effect of a speed reduction. It consists of a body made of two conic parts made of welded Steel or ductile cast iron. This parts of the body flange a multi-orifice disc made of stainless Steel which is the base for the closing. The body also includes Windows for maintenance works and optionally the installation of a by-pass system. The nozzle are completely vulcanized of EPDM (other elastomer available for every kind of fluid) assuring an uniform seat and avoiding critical leaking by pressure discontinuities at the sealing area. The nozzles will move always guided by the use of shafts in the fluid direction.

ANGODOS AG1-SV is a full bore butterfly valve with flanged body and over-speed automatic closing system. ANGODOS AG1-SV is a full bore butterfly valve with flanged body and over-speed automatic closing system. The sealing gasket is the key for reliable sealing performance and it’s placed in the body. The disc is attached to the eccentric (simple or double) shaft bearing assuring an uniform seat and avoiding critical leaking by pressure discontinuities at the sealing area. In this way the sealing system assures perfect sealing under the most demanding conditions. Full bore and hydrodynamic internal design provides outstanding hydrodynamic features minimizing the head loss. The over-speed detector guarantees an appropriate closing due to over-speed of the fluid. At the same time the closing system is simple and robust offering the maximum safety.
