Anhui Sunval International Co., Ltd. products

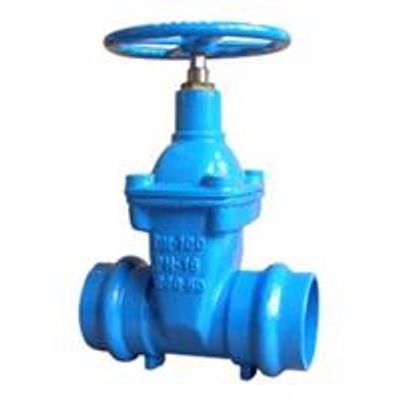

Design: DIN3352, BS5163,SABS 664. Class: PN10 / 16. Face to face: DIN3352 F5 / SABS664. Socket ends: ISO4422, ISO4422.2. Testing: ISO5208. Size: DN40- DN300 (for PVC pipe OD. 50MM-315MM).

M/F Screwed Ends Gate Valve . Class: PN10 / 16. Size: DN15- DN80. Thread: BSP, NPT.

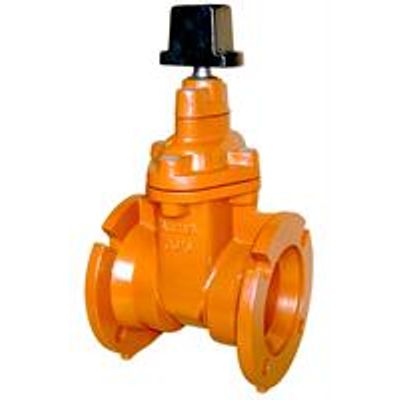

AWWA C509 MJ/MJ, MJ/FL Mechanical. Mechanical Joint Gate Valve. Design: AWWA C509/515. Class: 200/250PSI. MJ ends to AWWA C153/A21.53. Testing: AWWA C509/515. Size: 2" - 24".

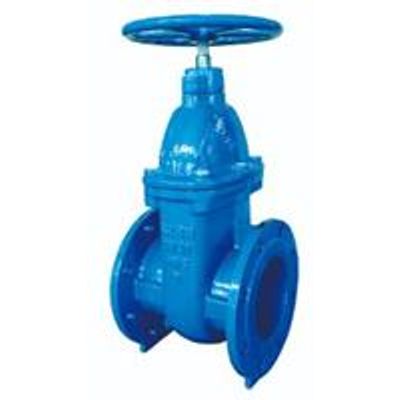

Gate Valve BS163 NRS. Design: BS 5163 / BS5150 (EN1171); Class: PN10 / 16; Face to face: BS 5150-3 / EN558.1 F3; Flange: BS4504, EN1092-2, ISO7005-2; Testing: EN12266 / ISO5208; Size: DN50-DN1600 (2” – 64”). *Rising stem type (OS&Y) available (Fig. 1122).

Gate Valve MSS SP-70 RS. Design: MSS SP-70;. Class: 125-150Lbs. Face to face: ASME B16.10/ISO 5752 Series 3;. Flange: ASME B16.1/ASME B16.42;. Testing: MSS SP-70;. Size: 2” – 24”.

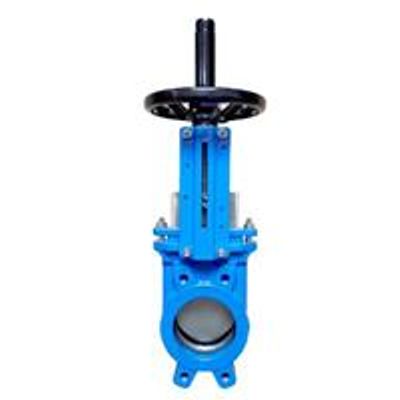

Knife Gate Valve, 1-PC Body. Class: PN10;. Face to face: EN558-1, MSS. Flange: DIN2501, BS4504, ANSI B16.10. Testing: DIN3230. Size: DN50-DN300.

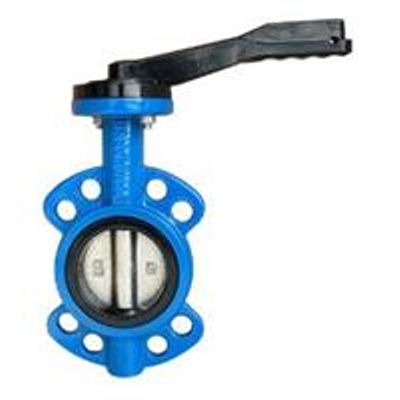

Wafer Butterfly Valve (Lever): Design: EN593 / BS5155 / MSS SP-67. Class: PN10/16, 125Lbs, JIS10K. Face to face: API 609; EN558 1-20 Series. Flange: PN10/16, 150LB, JIS10K, AS “D”/ “E”. Testing: EN12266-1, API 598. Size: DN25-DN300 （1” – 12”）.

Wafer Butterfly Valve (Lever). Design: EN593 / BS5155 / MSS SP-67. Class: PN10/16, 125Lbs, JIS10K. Face to face: API 609; EN558 1-20 Series. Flange: PN10/16, 150LB, JIS10K, AS “D”/ “E”. Testing: EN12266-1, API 598. Size: DN25-DN300 （1” – 12”）.

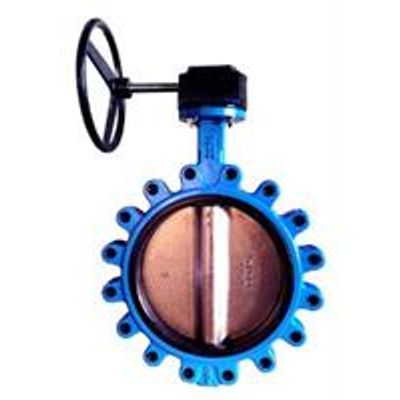

Design: EN593 / BS5155 / MSS SP-67. Class: PN10/16, 125Lbs, JIS10K. Face to face: API 609; EN558 1-20 Series. Flange: PN10/16, 150LB, JIS10K, AS “D”/ ”E”. Testing: EN12266-1, API 598. Size: DN50-DN1200 (2”-48”)

Class: PN10 / 16 Design: BS EN 12334, BS EN14341, API594 Face to face: EN558-1 Series 16, DIN3202 K3 Flange: PN10-16, ANSI 150LB, JIS10K Testing: EN12266, ISO5208 Size: DN40-DN1000.
