Anping Xinlu Wire Mesh Products Co., Ltd. products

Wedge wire screen in Water and Liquid Treatment

FY-XL - Model 019 - Flat Wedge Wire Screen for Slime Removal

Flat Wedge Wire Screen for Slime Removal Flat Wedge Wire Panel, Wire wrapped panel, Johnson screen plate, sieve bend screen, arc screen plate, profile wire slot panel, v wire slot panel, v wire flat screen The desliming screen is one of the most commonly used filtration components in wastewater treatment and other solid/liquid separation systems. Typically made from wedge wire and support rods, the flat panel wire screen provides a simple and effective way to remove slime from valuable process fluid. Feiya group branch factory-Xinlu's flat wedge wire screen is built with specific application environments in mind, and constructed of either stainless steel or galvanized carbon steel for a high wear, acid and base resistance. For custom flat wire screens, please inform us of your specific requirements.

FY-XL - Model 020 - Wedge Wire Cylindrical Screen For Wastewater Treatment

Cylindrical Screen For Wastewater Treatment These cylindrical screens are welded in one continuous length at each wedge wire and support juncture. The high structural integrity allows slots to be placed closer together for an increased screening efficiency. Advanced welding technology also results in a smooth weld surface with no sharp edges, corners or burrs. Feiya group branch factory-Xinlu's cylindrical screens are typically used as screen nozzles in waste water treatment vessels for material retention and flow control. While there is a universal need for waste water treatment in mineral processing, coal washing, power plants and offshore oil drilling, there is an equally large demand for cylindrical screens in different sizes, number of slot openings, and materials.

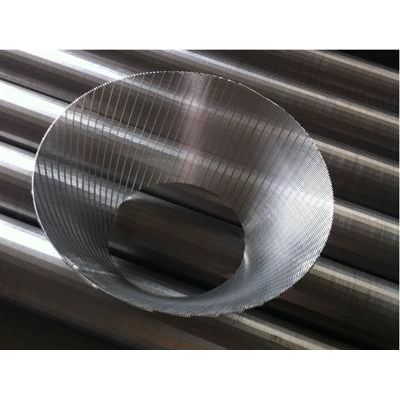

FY-XL - Model 021 - Cylindrical Screen For Solid / Liquid Separation

Wedge Wire Cylindrical Screen For Solid / Liquid Separation Rotary Drum Screen Basket Feiya group branch factory-Xinlu's large-diameter cylindrical screen is specifically designed for heavy duty, solid/liquid separation tasks. Made by welding wedge wire in a circumferential helix pattern onto a series of support rods, the cylindrical screen provides high strength and evenly distributed slots. These screen cylinders need to be custom made, which means customers need to provide the necessary specifications for us to build each unique product.

FY-Xl - Model 022 Wedge Wire - Filter Cartridge For Candle Filters

Filter Cartridge For Candle Filters Candle filters have been around for decades and are generally used for liquid purification. At the core of any candle filter, is the filter cartridge, which serves as a barrier to separate harmful contaminates from clean water. Often, a thin layer of diatomaceous earth will be applied to the surface cartridge, and act as the filtration medium Feiya group branch factory-Xinlu's filter cartridges are made by welding vee-wire in a spiral manner onto longitudinal support rods. The resulting continuous slots widen inwardly, making clogging nearly impossible when water flows in from outside the cartridge Main Specifications of Filter Cartridge Diameter (mm) 29, 32, 34, 42, 45, 54, 58, 62, 70, 84, 94, or as required. Slot opening size: 0.05mm to 15mm Length: 100mm-4000mm Applications of the Filter Cartridge The filter cartridge is used in chemical engineering, beverage industries, pharmaceuticals, biotechnology, water treatment and solid/liquid
