Anping Xinlu Wire Mesh Products Co., Ltd.
6 services found
Anping Xinlu Wire Mesh Products Co., Ltd. services

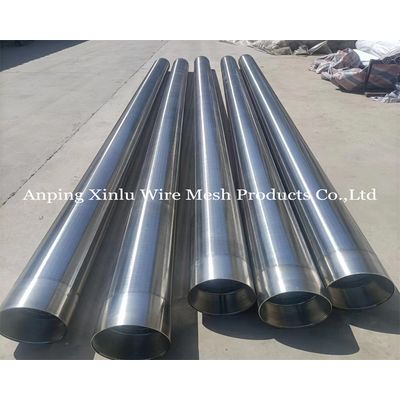

XinLu - No Magnetic Stainless Steel Water Well Filter Tube
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens Johnson Wire Water Well Screen Pipe Range: 1. Material: 316L, or according to customized, Stainless steel 304, Non-magnetic SS, Low carbon galvanized,Duplex steel etc. 2. Diameter: 25-2000mm (customized) 3. Slot: min 0.05mm 4. Length: 100-6000mm 5. Flow Type: FITO, FOTI 6. Ends: Welded rings/Plain beveled ends; Male/female threaded coupling: API STC, PT NPT, BSP, G; Flange ; Closed up, Open ends etc. 7. Usage: Pump Filter, Motor Filter, Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

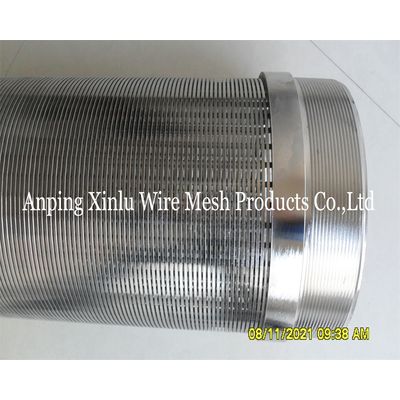

XinLu - Wedge Wire Johnson Well Screen Pipe
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens Xinlu’s Wedge Wire Johnson Well Screen Pipe are widely used on drainage pipes in construction sites to filter out sand from the water, and improve the water removal efficiency. Main specs for water well screen Well Screen material: stainless steel, galvanized low-carbon steel, or custom materials Slot opening size: 0.1mm-15mm Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm Length: 2.9m, 5.85m. The maximum length is 6.05m Connection method: beveled, circumferential welded, threaded connection
XinLu - perfect roundness johnson well screen pipe
Diameter 33mm x slot 0.05mm Pure round screen tube Perfect roundness johnson type well screen pipe water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens No. Type ODmm IDmm Support Wire Number Filter Direction 1 XLD 25.4 25.4 18.6 12 FOTI 2 XLD 33 33 24 8 FOTI 3 XLD 37 37 28 8 FOTI 4 XLD 40 40 31 8 / 10 FOTI/ FITO 5 XLD 45 45 36 10 / 12 FOTI/ FITO 6 XLD 48 48 38 12 FOTI/ FITO 7 XLD 60 60 51 12 FOTI/ FITO 8 XLD 70 70 61 12 / 18 FOTI/ FITO 9 XLD 85 85 76 18 FOTI/ FITO 10 XLD 110 110 101 24 FOTI/ FITO 11 XLD 120 120 111 24 FOTI/ FITO Remarkes 1. Make Tubes with different material according to user requirements 2. Slot should be bigger than 0.025mm and less than 2500mm long, OD should be smaller than 220mm
Xinlu - Water Well Wedge Wire Filter Screen
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens Stainless Steel O.D 168mm (6-5/8") Wedge Wire Screen Pipe With 0.5mm Slot Wedge Wire Screen Pipe is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding. OEM service: We can produce products according to the needs of our customers. Material: stainless steel 304, 316L, low carbon steel Diameter: min 32mm, max1500mm Length: up to 6 m Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm Joints: flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.
XinLu - Stainless Steel Johnson Water Filter Nozzle Quick Connect
Stainless steel filter screen, johnson screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, stainless steel filter candles, stainless steel lateral arms, wedge wire lateral pipes, wedge wire srainer, changeable filter element, water input device, water distributor, resign trans,etc. Xinlu Screen Nozzles are made of vee-wire wrapped around support rods in a helix pattern to form continuous slots. Rigid construction and evenly distributed slots make the screen nozzle ideal for use as collectors and distributors in material retention and flow rate control OEM service: 1. Material: stainless steel 304, 316L, 321, Hastelloy B, C and other materials. 2. Outer diameter: 38mm, 45 mm, 53 mm, 57mm, 70mm, 82mm in usual. 3. Slot: 0.2mm-0.5mm in usual, error: + 0.03mm, customized. 4. Type: Female thread (G3/4", G1"), male threaded (M24 Or M32), no thread, long handle, single velocity, double velocity etc. 5. Length: 30mm, 45mm, 50mm, 100mm, 130mm, 150mm, customized.
