Anyang Forging Press Machinery Industry Co., Ltd. products

J58K Series Electric Screw Press/suitable for all kinds of precision forging, sizing, precision pressing, calibration and leveling, etc processes. The hitting energy can be accurately set, the stroke is short, and the energy is stable. The hitting energy can be adjusted according to the metal forming needs to reduce the mechanical stress and thermal stress of forging dies, prolong the lifespan of the forging dies. Because of its low slider speed, it has unique advantages in forging non-ferrous metals such as aluminum alloy and copper. The J58K Series Electric Screw Press produced by our company adopts advanced frequency conversion control technology, it has a simple and reliable structure, can provide greater working energy, also it has the following features and advantages to make it widely used in forging production.

Anyang CNC forging hammers are widely used in the mass production industries of metal precision die forgings such as automobiles, motorcycles, engineering machinery, hydraulic pipe fittings, instrument hardware, construction hardware, daily hardware, surgical instruments, kitchen hardware, farm tools, knives and other metal precision die forgings. In addition to high-density special-shaped parts widely used in the aerospace field, its core is automated precision forging production line equipment.

The C66Y series fully hydraulic open forging hammer is a fully hydraulically driven open forging hammer with single arm, arch, bridge and other structural forms. The system principle is that the lower chamber of the hammer rod piston always passes through high-pressure oil, and the impact is achieved by controlling the upper and lower oil pressures of the piston, which is used for open forging. The fully hydraulic open forging hammer has strong impact force, fast speed and few faults. The hammer head can be suspended at any position, which is suitable for the production of various open forgings.

CNC Forging manipulator is the fully hydraulic driven type with lateral shift function, which can be operated by manual, semi-auto, or auto, able to connect with the hydraulic free forging press through digital input to realize linkage operation. It is used to clamp shaft forgings and billet under an open die hammer or open die press, which greatly increases the productivity and forging quality, reduces labor intensity and realizes forging production mechanization.

The traditional production method of hot forging nut mostly relies on manual completion of blank feeding and workpiece conveying. This production method has low efficiency, unstable product quality and many safety hazards.

Anyang FP Power Hammers for blacksmiths (from 15kg to 110kg) are self-contained pneumatic power hammers. The design is based on the time-proven designs of the old European hammers many of which are still in use today.  With a self-contained power hammer, you require no external air supply or high-pressure hoses.

Hydraulic riveting machine is adopted full hydraulic drive and control, when output pressure, it can achieve cold riveting directly, improve the quality of hydraulic riveting machine. Comparing with traditional pneumatic riveting, hydraulic riveting machine has following advantages: the working condition is good, no noise, operation is agility, labor intensity is low, rivet speed is high, and the production efficiency is high.

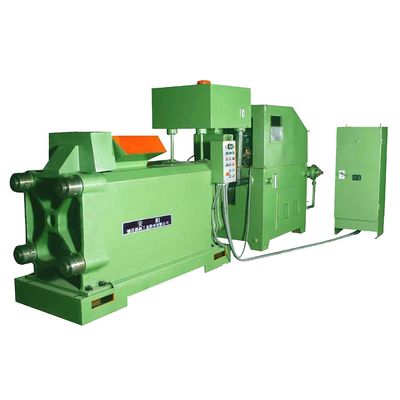

Metal scrap briquetting press machines can compact the different kinds of chips like cast iron, aluminum, copper, magnesium, titanium, molybdenum, etc metal scrap chips into high-density blocks without any additive. it is fully hydraulic control equipment, by PLC control, the whole working process automatically reduces the labor cost. Metal scrap does not need any additive, can be compacted to be blocked directly.
We also can supply automatic feeding, discharging devices to build automation metal scrap briquetting press lines.
